51555 (710) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

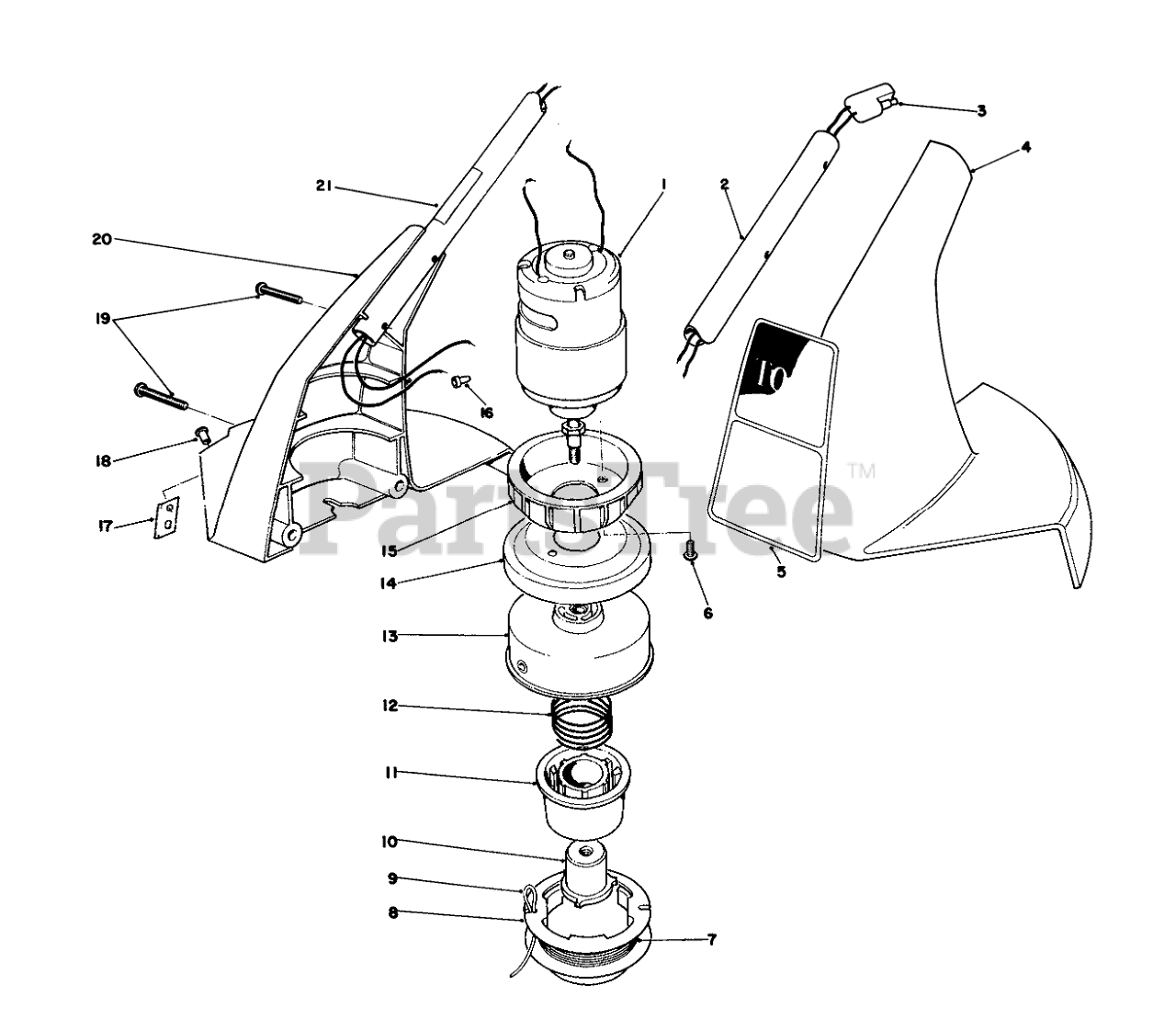

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 62-3170

MOTOR ASM

$

$

Not available

2

Toro 33-6660

EXTENSION HANDLE

$

$

Not available

3

Toro 33-6720

WIRING HARNESS LOWER

$

$

Not available

4

Toro 33-6560

Housing-L.H.

$

$

Not available

5

Toro 64-2380

Decal-CL-710
(Superseded to 73-1200)

$

$

Not available

6

Toro 64-6470

SCREW

$

$

Not available

7

Toro 88075

Prewound Spool

$19.99

$

In Stock, only 3 left!

0

8

Toro 34-9870

CAP-SPOOL

$16.99

$

Usually ships in 3-6 days

0

9

Toro 88011

Line-Cutting (30- .05 Dia.)

$

$

Not available

10

Toro 33-9720

DRIVER

$

$

Not available

11

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 34-9860

Spring
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

13

Toro 33-9760

Drum w/Eyelet

$

$

Not available

14

Toro 33-9730

DRUM CUP

$

$

Not available

15

Toro 33-9740

Casting-Heat Sink

$

$

Not available

16

Toro 218-511

Connector

$

$

Not available

17

Knife Blade

$

$

Not available

18

Rivet

$

$

Not available

19

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

20

Toro 33-6760

R.H. Motor Housing (Incl. Ref. #17 & 18)

$

$

Not available

21

Toro 34-3270

REP. SERIAL PLT

$

$

Not available

Toro 34-1160

Loose Parts

$

$

Not available
