51550 - Toro String Trimmer, Cordless (SN: 009103641 - 009999999) (1979) UPPER CASE ASSEMBLY Parts Diagram

String Trimmer, Cordless

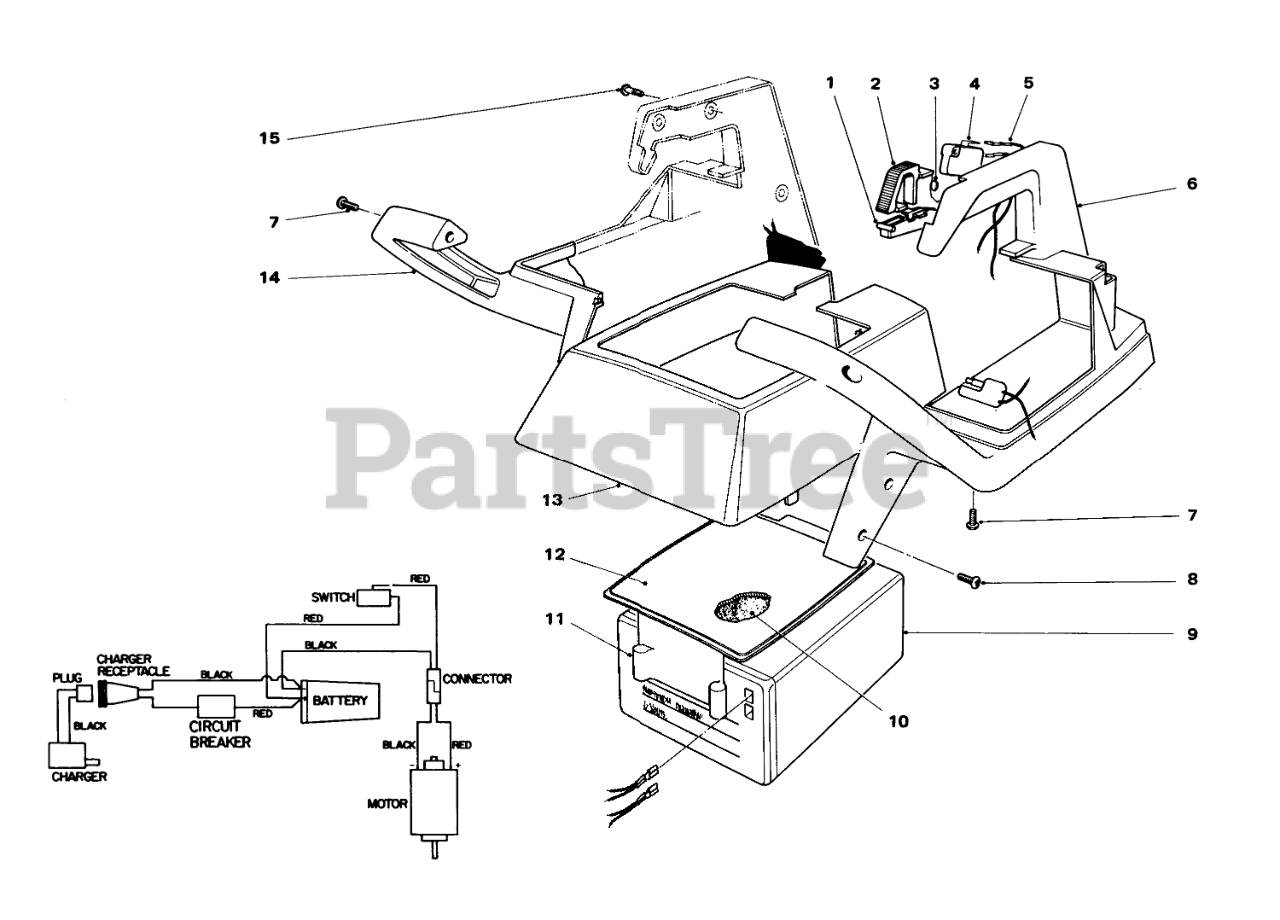

UPPER CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-6630

TRIGGER

$

$

Not available

2

Toro 33-6620

TRIGGER LOCK

$

$

Not available

3

Toro 33-6670

SPRING

$

$

Not available

4

Toro 33-6610

Switch

$

$

Not available

5

Toro 33-9660

Wiring Harness

$

$

Not available

6

Toro 33-6700

Left Hand Case
(Superseded to 34-5840)

$

$

Not available

7

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Toro 32144-30

10-16 X .31 SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33-6650

BATTERY

$

$

Not available

10

Toro 33-6830

FOAM PAD

$

$

Not available

11

Toro 33-6540

CONTROL PANEL, CL-710

$

$

Not available

12

Toro 33-9690

DECAL - CONTROL PANEL

$

$

Not available

13

Toro 33-9790

Cover
(Superseded to 33-9792)

$

$

Not available

14

Toro 33-6600

Right Hand Case
(Superseded to 34-5830)

$

$

Not available

15

Toro 32104-118

SCREW-PPH

$

$

Not available

Toro 33-6730

BATTERY CHARGER

Note: NOT SHOWN

$94.99

$

In Stock, only 1 left!

0
