51550 - Toro String Trimmer, Cordless (SN: 009103641 - 009999999) (1979) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Cordless

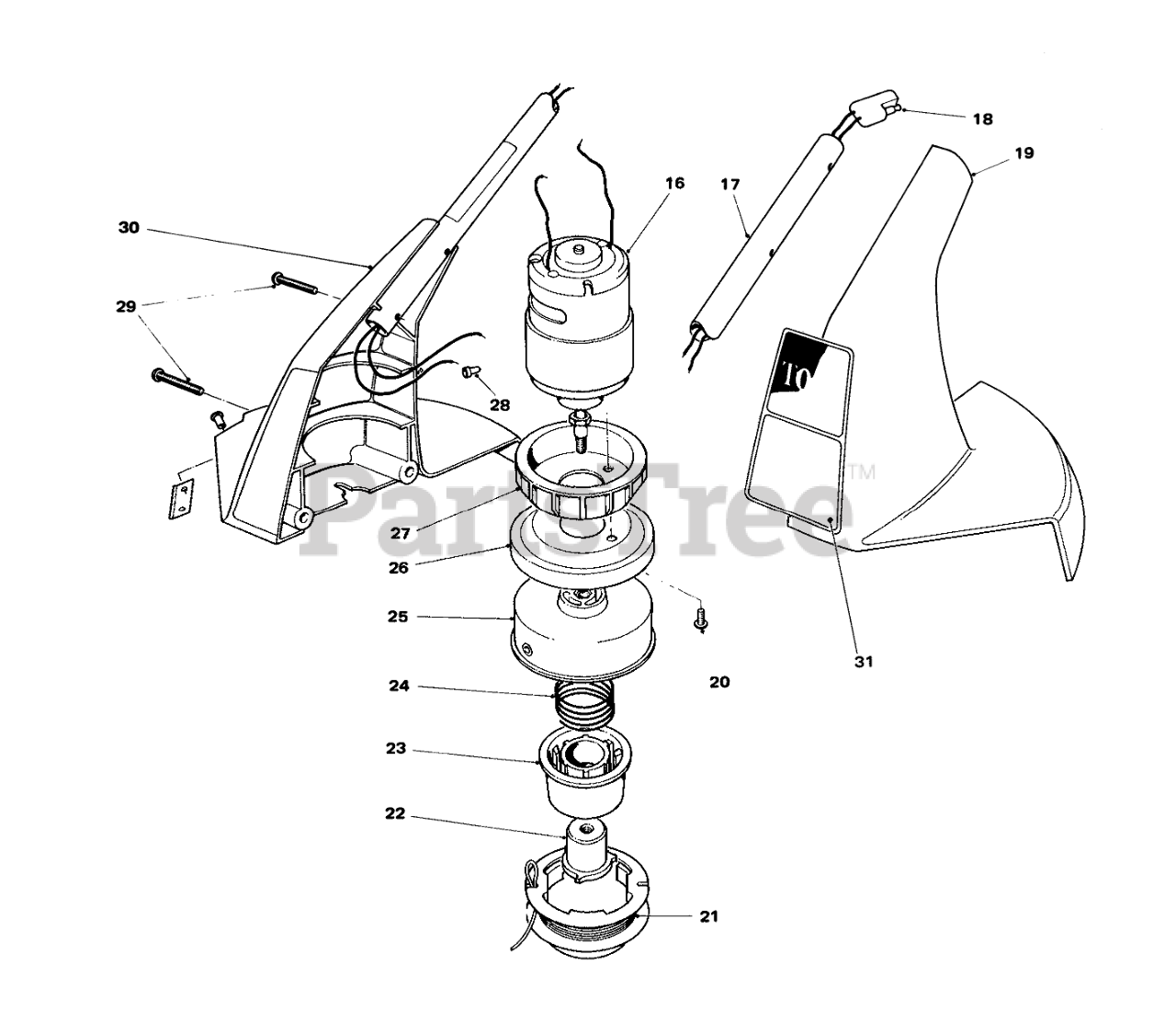

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

16

Toro 33-9750

Motor

$

$

Not available

17

Toro 33-6660

EXTENSION HANDLE

$

$

Not available

18

Toro 33-6720

WIRING HARNESS LOWER

$

$

Not available

19

Toro 33-6560

Housing-L.H.

$

$

Not available

20

Toro 3250-18

SCREW-PPH

$

$

Not available

21

Toro 33-7960

Prewound Spool
(Superseded to 88014)

$

$

Not available

Toro 33-6530

SPOOL CAP

$

$

Not available

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

22

Toro 33-9720

DRIVER

$

$

Not available

23

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

24

Toro 33-6840

Spring
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

25

Toro 33-9760

Drum w/Eyelet

$

$

Not available

26

Toro 33-9730

DRUM CUP

$

$

Not available

27

Toro 33-9740

Casting-Heat Sink

$

$

Not available

28

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

29

Toro 32104-123

SCREW-PLASTITE

$

$

Not available

30

Toro 33-6760

R.H. Motor Housing (Incl. Ref. #17&18)

$

$

Not available

31

Toro 33-9820

Decal, Cordless
(Superseded to 34-3700)

$

$

Not available
