51550 - Toro String Trimmer, Cordless (SN: 008000001 - 008999999) (1978) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Cordless

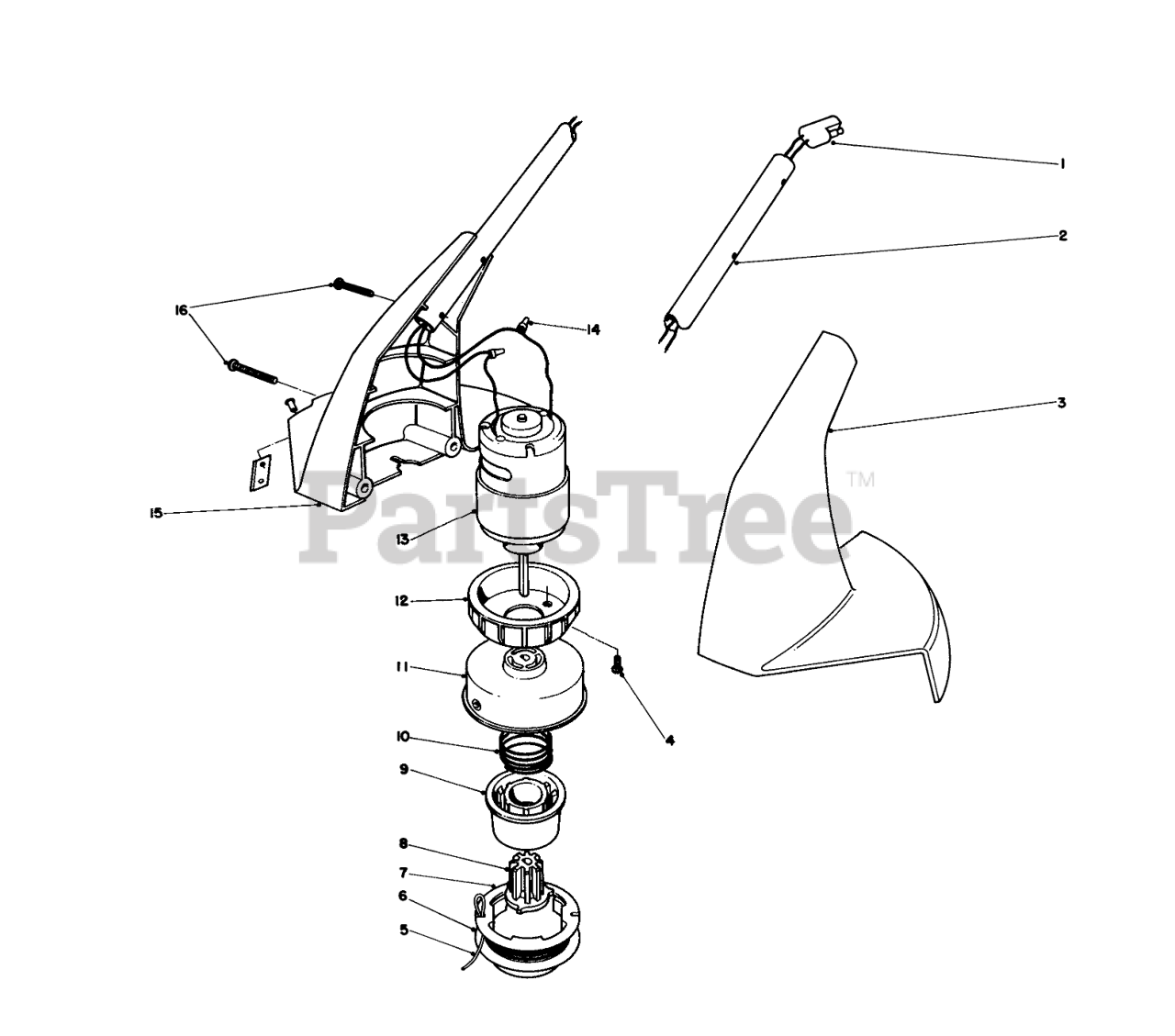

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 33-6720

WIRING HARNESS LOWER

$

$

Not available

2

Toro 33-6660

EXTENSION HANDLE

$

$

Not available

3

Toro 33-6560

Housing-L.H.

$

$

Not available

4

Toro 32144-31

SCREW 8 - 32 X 250

$

$

Not available

5

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

6

Toro 33-6530

SPOOL CAP

$

$

Not available

7

Toro 33-7960

Prewound Spool
(Superseded to 88014)

$

$

Not available

8

Toro 33-6510

Driver

$

$

Not available

9

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

10

Toro 33-6840

Spring
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

11

Toro 33-6750

Drum (including eyelet)

$

$

Not available

12

Toro 33-6580

Heat Sink Casting

$

$

Not available

13

Toro 33-6590

Motor

$

$

Not available

14

Toro 218496

Wire Connector

$

$

Currently unavailable

15

Toro 33-6760

R.H. Motor Housing (Incl. Ref. #17&18)

$

$

Not available

16

Toro 32104-123

SCREW-PLASTITE

$

$

Not available
