51550 - Toro String Trimmer, Cordless (SN: 006000001 - 006999999) (1986) UPPER CASE ASSEMBLY Parts Diagram

String Trimmer, Cordless

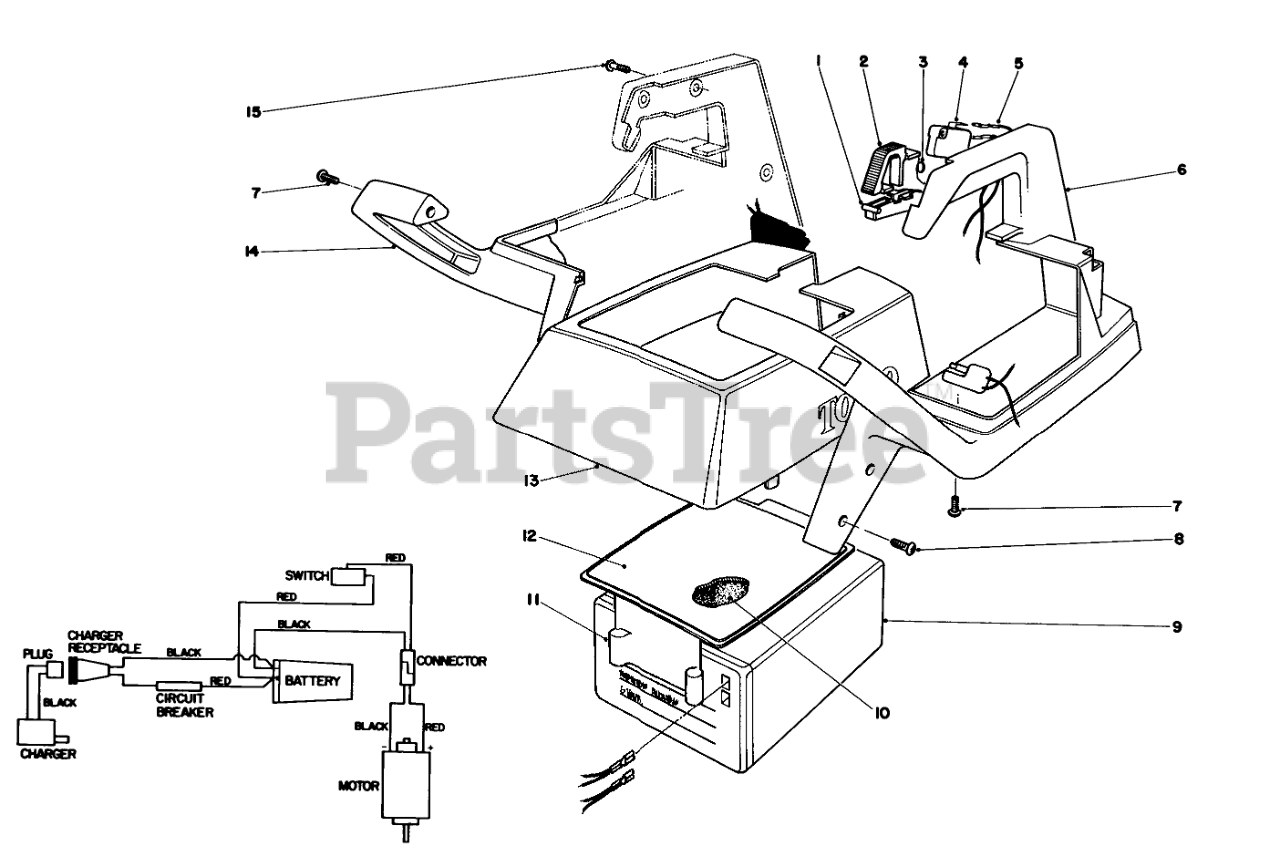

UPPER CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 33-6630

TRIGGER

$

$

Not available

2

Toro 33-6620

TRIGGER LOCK

$

$

Not available

3

Toro 33-6670

SPRING

$

$

Not available

4

Toro 33-6610

Switch

$

$

Not available

5

Toro 33-9660

Wiring Harness

$

$

Not available

6

Toro 34-5840

LH BATTERY CASE/HNDL

$

$

Not available

7

Toro 32104-12

Screw

$

$

Currently unavailable

8

Toro 32144-30

10-16 X .31 SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33-6650

BATTERY

$

$

Not available

10

Toro 33-6830

FOAM PAD

$

$

Not available

11

Toro 33-6540

CONTROL PANEL, CL-710

$

$

Not available

12

Toro 52-3770

DECAL CL 710 PANEL

$

$

Not available

13

Toro 33-9790

Cover
(Superseded to 33-9792)

$

$

Not available

14

Toro 34-5830

RH BATTERY CASE/HNDL

$

$

Not available

15

Toro 32104-11

Screw

$

$

Currently unavailable

Toro 33-6730

BATTERY CHARGER

Note: Not illustrated

$94.99

$

In Stock, only 1 left!

0
