51550 - Toro String Trimmer, Cordless (SN: 004000001 - 004999999) (1984) MOTOR HOUSING ASSEMBLY Parts Diagram

String Trimmer, Cordless

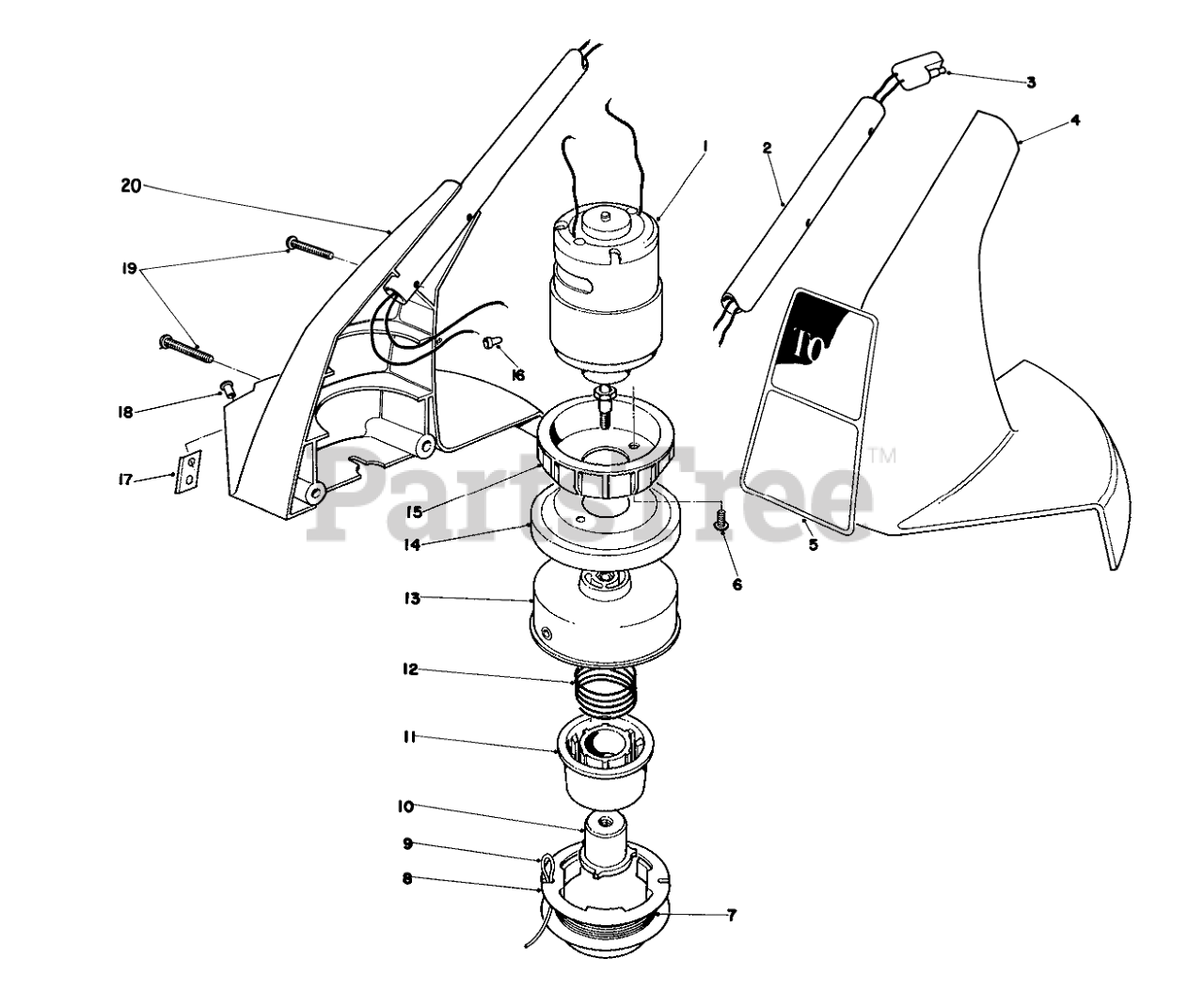

MOTOR HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 33-9750

Motor

$

$

Not available

2

Toro 33-6660

EXTENSION HANDLE

$

$

Not available

3

Toro 33-6720

WIRING HARNESS LOWER

$

$

Not available

4

Toro 33-6560

Housing-L.H.

$

$

Not available

5

Toro 34-3700

Decal-CL-700

$

$

Not available

6

Toro 52-3280

Screw

$

$

Not available

7

Toro 88014

Prewound Spool

$

$

Not available

8

Toro 33-6530

SPOOL CAP

$

$

Not available

9

Toro 33-7900

.040" Cutting Line in Coil
(Superseded to 88002)

$6.49

$

Usually ships in 3-6 days

0

10

Toro 33-9720

DRIVER

$

$

Not available

11

Toro 29-8120

CORE - SPOOL

$34.99

$

Usually ships in 3-6 days

0

12

Toro 34-9860

Spring
(Superseded to 29-8230)

$10.99

$

In Stock, only 2 left!

0

13

Toro 33-9760

Drum w/Eyelet

$

$

Not available

14

Toro 33-9730

DRUM CUP

$

$

Not available

15

Toro 33-9740

Casting-Heat Sink

$

$

Not available

16

Toro 218-511

Connector

$

$

Not available

17

Knife Blade

$

$

Not available

18

Rivet

$

$

Not available

19

Toro 32104-12

Screw

$

$

Currently unavailable

20

Toro 33-6760

R.H. Motor Housing (Incl. Ref. #17&18)

$

$

Not available
