5155 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

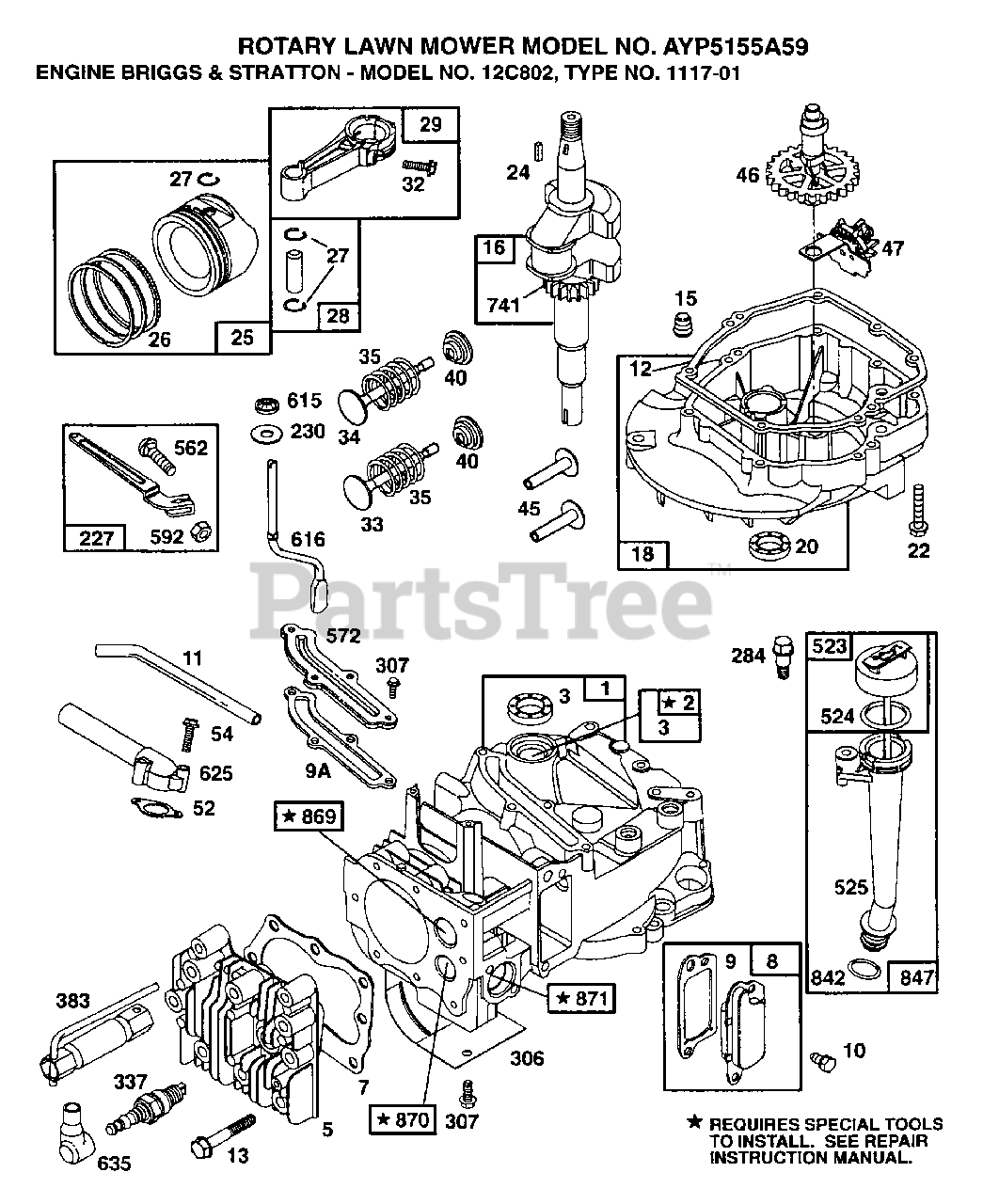

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 494062

CYLINDER ASSY
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 399269

BUSHING ASSY
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

5

Briggs & Stratton 214349

HEAD, CYLINDER
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

GASKET, CYLINDER HEAD
(Superseded to 692249)

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 494489

BREATHER, VALVE CHAMBER
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

GASKET, VALVE COVER
(Superseded to 699833)

$5.49

$

In Stock, only 1 left!

0

9A

Briggs & Stratton 272238

GASKET, BAFFLE PLATE
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94650

SCREW

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231933

TUBE, BREATHER
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 272198

GASKET, CRANKCASE
(Superseded to 692232)

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 94547

SCREW, CYLINDER HEAD
(Superseded to 690912)

$3.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94720

PLUG, OIL DRAIN
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 493363

CRANKSHAFT
(Superseded to 797019)

$162.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94388

TIMING GEAR KEY
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

18

Briggs & Stratton 493279

SUMP, ENGINE

$120.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 399781

SEAL, OIL
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94220

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

SCREW, HEX HEAD
(Superseded to 691092)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 494058

PISTON ASSY, STANDARD SIZE

$91.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 494059

PISTON ASSY, .010" OVERSIZE

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 494060

PISTON ASSY, .020" OVERSIZE

$63.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 494061

PISTON ASSY, .030" OVERSIZE

$49.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 493261

RING SET, PISTON, STANDARD SIZE

$41.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493388

RING SET, PISTON, .010" OVERSIZE

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 493389

RING SET, PISTON, .020" OVERSIZE

$

$

Not available

Briggs & Stratton 493390

RING SET, PISTON, .030" OVERSIZE

$29.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 3 left!

0

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490566

ROD, CONNECTING

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 490743

ROD, CONNECTING, .020" UNDERSIZE

$13.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 262651

VALVE, EXHAUST
(Superseded to 590394)

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 262652

VALVE, INTAKE
(Superseded to 590393)

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 262224

SPRING, VALVE
(Superseded to 691270)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 262204

TAPPET, VALVE
(Superseded to 690548)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 492830

GEAR, CAM
(Superseded to 691449)

$73.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 493737

SLINGER, OIL
(Superseded to 691997)

$25.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 272199

GASKET, INTAKE ELBOW
(Superseded to 272199S)

$4.99

$

In Stock, only 2 left!

0

54

Briggs & Stratton 94526

SCREW, HEX HEAD
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 492349

LEVER, GOVERNOR
(Superseded to 690783)

$15.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 67072

WASHER, THRUST
(Superseded to 690272)

$3.99

$

In Stock, only 2 left!

0

284

Briggs & Stratton 94511

SCREW, HEX HEAD
(Superseded to 690940)

$3.99

$

In Stock, Qty 14

0

306

Briggs & Stratton 224324

SHIELD, CYLINDER
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 492167

PLUG SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495264

CAP W/DIPSTICK, OIL FILTER
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 280393

SEAL, FILLER TUBE
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 495265

TUBE, OIL FILLER

$

$

Not available

562

Briggs & Stratton 92613

BOLT, GOVERNOR LEVER

$

$

Not available

572

Briggs & Stratton 224328

BAFFLE, CYLINDER
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 231082

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 94474

FASTENER
(Superseded to 690340)

$4.49

$

In Stock, Qty 10

0

616

Briggs & Stratton 262578

CRANK, GOVERNOR
(Superseded to 698801)

$10.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 497465

TUBE, FUEL INTAKE
(Superseded to 794305)

$

$

Not available

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 13

0

741

Briggs & Stratton 262598

GEAR, TIMING
(Superseded to 691830)

$17.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 280966

SEAL, O-RING
(Superseded to 692296)

$4.99

$

In Stock, Qty 9

0

847

Briggs & Stratton 495263

TUBE ASSEMBLY, OIL
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 213512

SEAT, INTAKE VALVE
(Superseded to 691155)

$8.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 213513

SEAT, EXHAUST VALVE
(Superseded to 690380)

$

$

Not available

871

Briggs & Stratton 262001

GUIDE, EXHAUST VALVE

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0
