5155 A59 - Electrolux/AYP Walk-Behind Mower (1995) ENGINE/BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

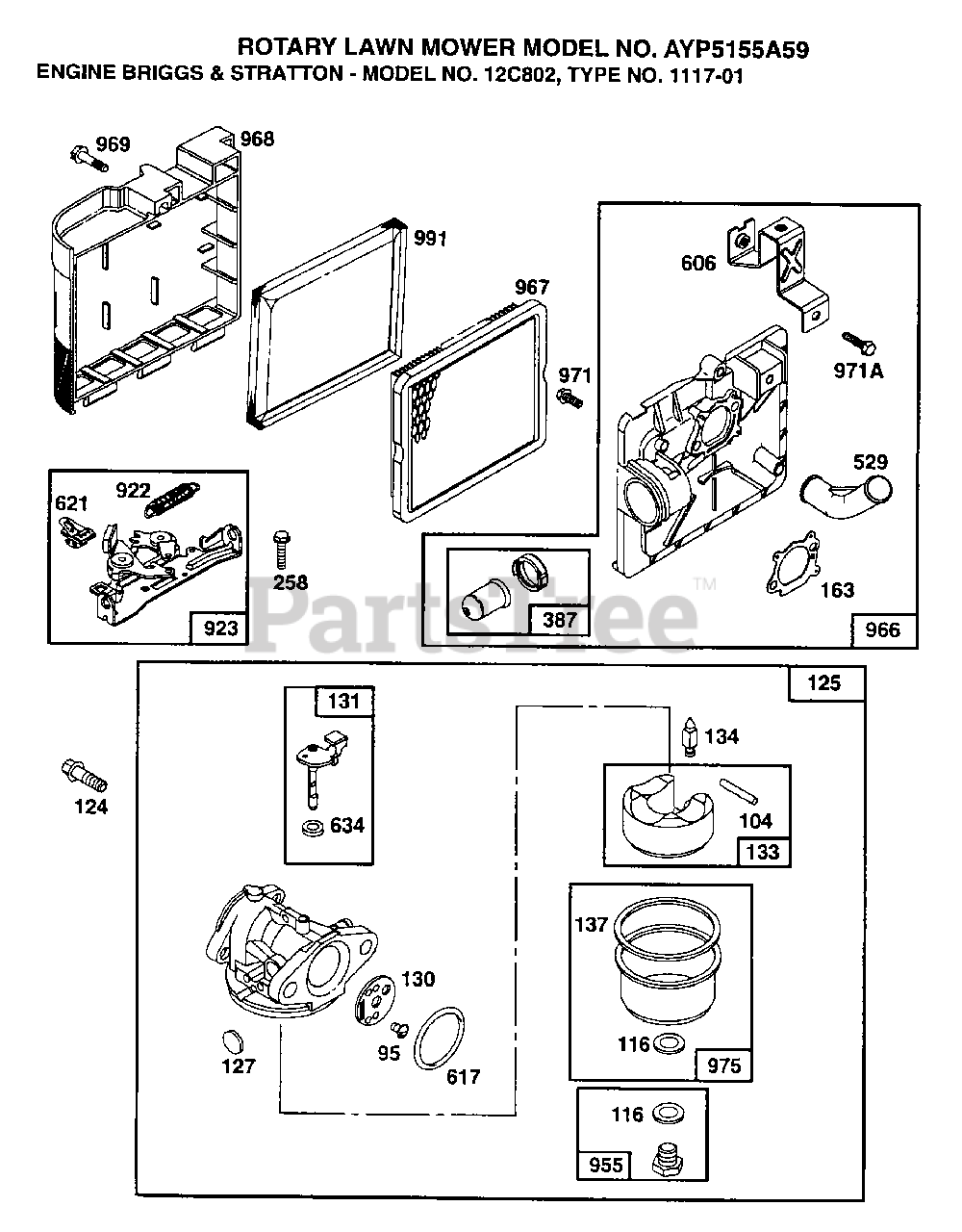

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title
95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231371

PIN, FLOAT HINGE
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

116

REFER TO IMAGE

$

$

Not available

124

Briggs & Stratton 94525

SCREW, CARBURETOR MOUNTING
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 497586

CARBURETOR
(Superseded to 799868)

$63.99

$

Usually ships in 2-12 days

0

127

REFER TO IMAGE

$

$

Not available

130

Briggs & Stratton 224908

VALVE, THROTTLE
(Superseded to 691203)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

SHAFT, THROTTLE

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

FLOAT, CARBURETOR

$9.99

$

In Stock, Qty 20+

0

134

$6.49

$

In Stock, Qty 20+

0

137

REFER TO IMAGE

$

$

Not available

163

Briggs & Stratton 272653

GASKET AIR CLEANER
(Superseded to 795629)

$3.49

$

In Stock, Qty 20+

0

258

Briggs & Stratton 94512

SCREW, HEX HEAD
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 496115

PRIMER, CARBURETOR
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 281299

GROMMET, BREATHER
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

606

Briggs & Stratton 224815

STRAP, BRKT
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 396847

SWITCH, STOP
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

REFER TO IMAGE

$

$

Not available

922

Briggs & Stratton 262640

SPRING, BRAKE
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

BRAKE ASSEMBLY
(Superseded to 796387)

$

$

Not available

955

Electrolux/AYP 497587

SCREW, FUEL BOWL

$

$

Not available

966

Briggs & Stratton 496116

BASE AIR CLEANER
(Superseded to 795259)

$32.99

$

In Stock, Qty 7

0

967

Briggs & Stratton 491588

SUB= 3364
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

COVER AIR CLEANER
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

SCREW, HEX HEAD
(Superseded to 690670)

$5.99

$

In Stock, Qty 5

0

971

Briggs & Stratton 94121

SCREW, HEX HEAD
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0

971A

Briggs & Stratton 94749

SCREW, HEX HEAD
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 493640

BOWL, FLOAT
(Superseded to 796611)

$

$

Not available

991

Briggs & Stratton 493537

PRE-FILTER
(Superseded to 493537S)

$6.49

$

In Stock, Qty 20+

0
