51549 - Toro Rake and Vac Blower Vacuum (SN: 200000001 - 200999999) (2000) BLOWER ASSEMBLY Parts Diagram

Rake and Vac Blower Vacuum

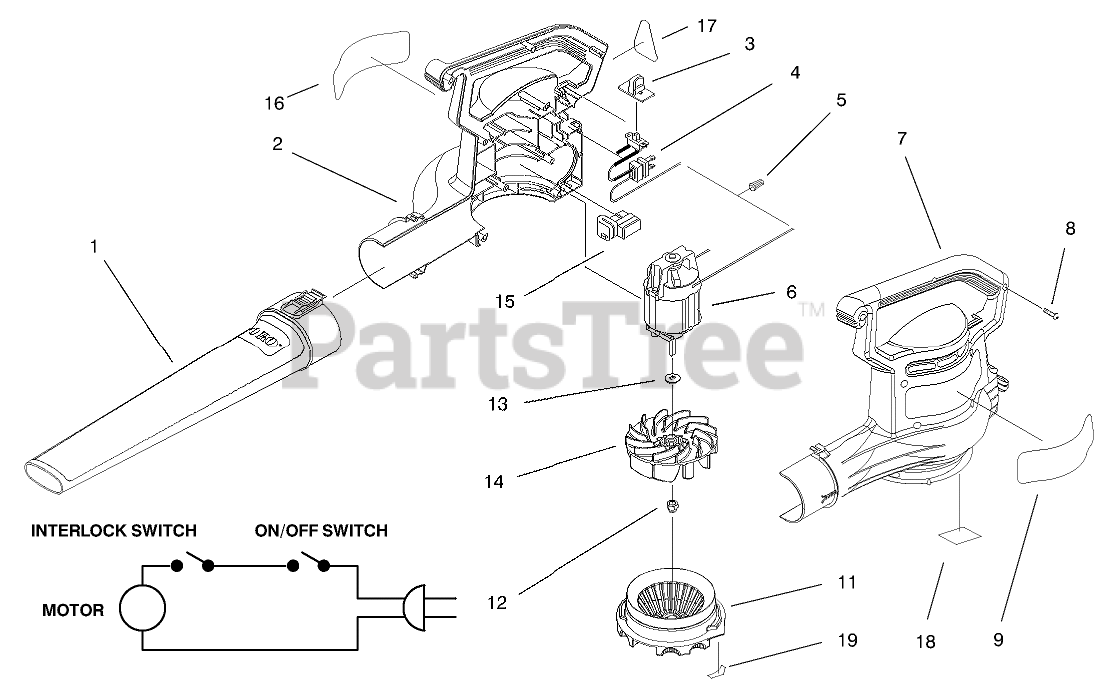

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-3151

TUBE-BLOWER LONG
(Superseded to 93-0571)

Note: Included in tube assembly No. 98-3170

$

$

Not available

2

Toro 100-2452

Housing-RH
(Superseded to 100-2459)

$80.99

$

Usually ships in 3-6 days

0

3

Toro 93-0565

COVER-SWITCH

$

$

Not available

4

Toro 93-0578

HARNESS ASSEMBLY

$

$

Not available

5

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

6

Toro 93-0577

MOTOR, ES-40, MID-BLOWER

$

$

Not available

7

Toro 100-2453

HOUSING-LH
(Superseded to 100-2459)

$80.99

$

Usually ships in 3-6 days

0

8

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

9

Toro 93-0588

DECAL-LOGO

$

$

Not available

11

Toro 100-2469

Cover-Inlet
(Superseded to 93-0569)

$11.99

$

In Stock, only 1 left!

0

12

Toro 73-5380

NUT-HEX
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 20+

0

13

Toro 93-0585

WASHER

$1.99

$

In Stock, Qty 8

0

14

Toro 98-3150

IMPELLER - BLOWER
(Superseded to 100-9068)

$40.99

$

In Stock, Qty 20+

0

15

Toro 95-3286

SWITCH - INTERLOCK

$20.99

$

Usually ships in 3-6 days

0

16

Toro 100-2467

Decal-Warning

$

$

Not available

17

Toro 95-5106

DECAL - INFORMATION

$

$

Not available

18

Toro 100-2464

DECAL-ALIGNMENT, HOUSING

$

$

Not available

19

Toro 100-2470

DECAL-ALIGNMENT, COVER

$

$

Not available
