51549 - Lawn-Boy Rake and Vac Blower Vacuum (SN: 200000001 - 200999999) (2000) BLOWER ASSEMBLY Parts Diagram

Rake and Vac Blower Vacuum

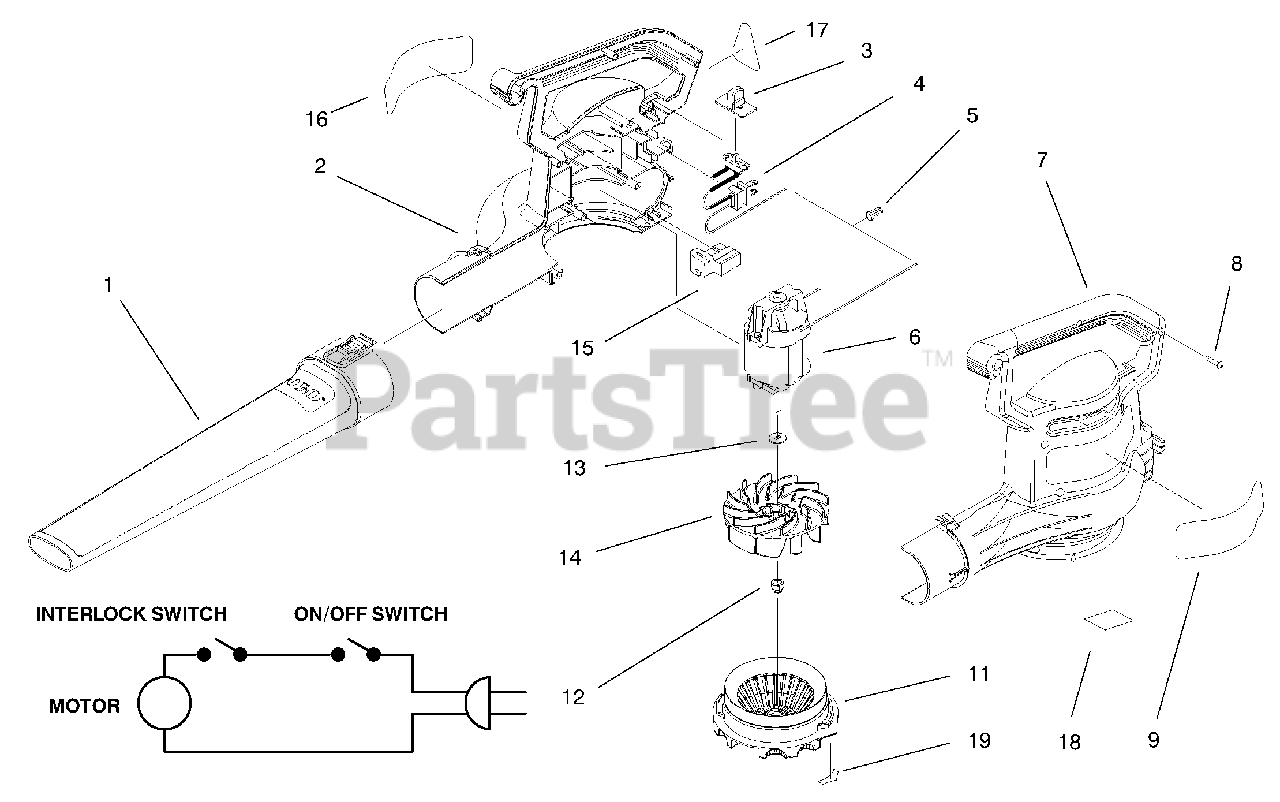

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 98-3151

Tube-Blower
(Superseded to 93-0571)

Note: Included in tube assembly No. 98-3170

$

$

Not available

2

Lawn-Boy 100-2452

Housing-R.H.
(Superseded to 100-2459)

$80.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 93-0565

Cover-Switch

$

$

Not available

4

Lawn-Boy 93-0578

Harness Assembly

$

$

Not available

5

Lawn-Boy 73-6570

Connector-Wire Nut

$1.49

$

In Stock, only 2 left!

0

$

$

Not available

7

Lawn-Boy 100-2453

Housing-L.H.
(Superseded to 100-2459)

$80.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 94-4496

Screw-Phillips Hd. Tap.

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 93-0588

Decal-Logo

$

$

Not available

11

Lawn-Boy 100-2469

Cover-Inlet
(Superseded to 93-0569)

$11.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 73-5380

Nut-Cap Hex
(Superseded to 114-9015)

$2.99

$

In Stock, Qty 15

0

13

$1.99

$

In Stock, Qty 8

0

14

Lawn-Boy 98-3150

Impeller
(Superseded to 100-9068)

$40.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 95-3286

Switch-Interlock

$20.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 100-2467

Decal-Warning

$

$

Not available

17

Lawn-Boy 95-5106

Decal-Information

$

$

Not available

18

Lawn-Boy 100-2464

Decal-Alignment, Housing

$

$

Not available

19

Lawn-Boy 100-2470

Decal-Alignment, Cover

$

$

Not available
