51549 - Lawn-Boy Rake and Vac Blower Vacuum (SN: 069000001 - 069999999) (1996) VACUUM TUBE & BAG ASSEMBLY Parts Diagram

Rake and Vac Blower Vacuum

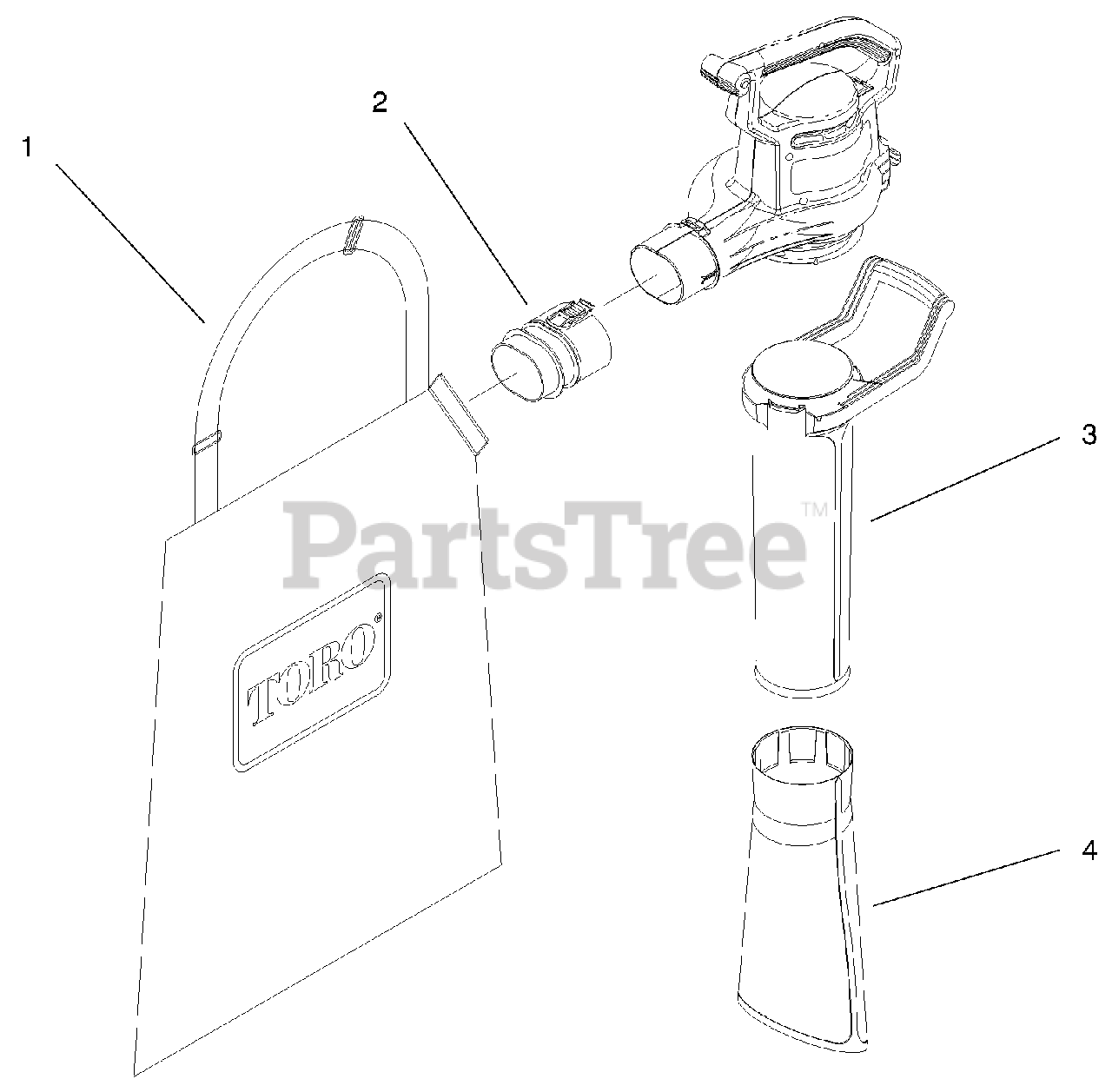

VACUUM TUBE & BAG ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 93-0583

Bag
(Superseded to 100-2474)

$

$

Not available

2

Lawn-Boy 93-0574

Tube-Bag Inlet

$

$

Not available

3

Lawn-Boy 93-0572

Tube-Vac Upper
(Superseded to 100-9758)

Note: Included in tube assembly No. 93-9989

$

$

Not available

4

Lawn-Boy 93-0573

Tube-Vac Lower
(Superseded to 100-9758)

Note: Included in tube assembly No. 93-9989

$

$

Not available
