51545 - Gravely Roll-Over Protection for Pro-Master 400 Mower ROLL-OVER PROTECTION KIT Parts Diagram

Roll-Over Protection for Pro-Master 400 Mower

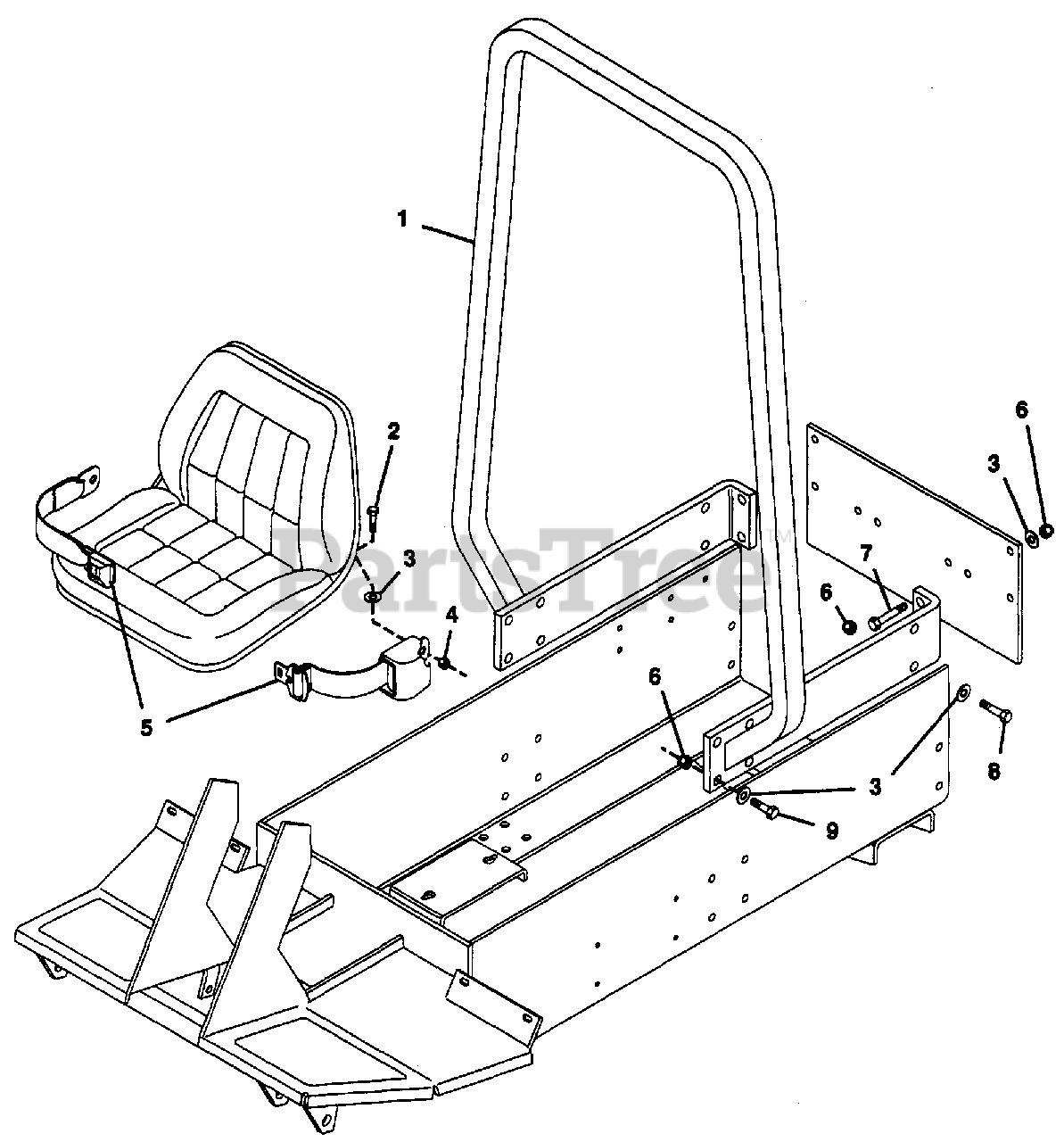

ROLL-OVER PROTECTION KIT Parts Diagram

  • Title
1

Gravely 051180

Weldment, Rollover Bar
(Superseded to 09003000)

$

$

Not available

2

Gravely 180145

Bolt, Hex 7/16-14x1.00
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 039413

Nut, Lock 7/16-14
(Superseded to 06527500)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 043208

Assembly, Seat Belt
(Superseded to 08945400)

$89.99

$

Usually ships in 4-12 days

0

6

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 180188

Bolt, Hex 1/2-13x2.75
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0
