51537 (600) - Toro Air Rake Blower (SN: 039015000 - 039999999) (1993) BLOWER ASSEMBLY Parts Diagram

Air Rake Blower

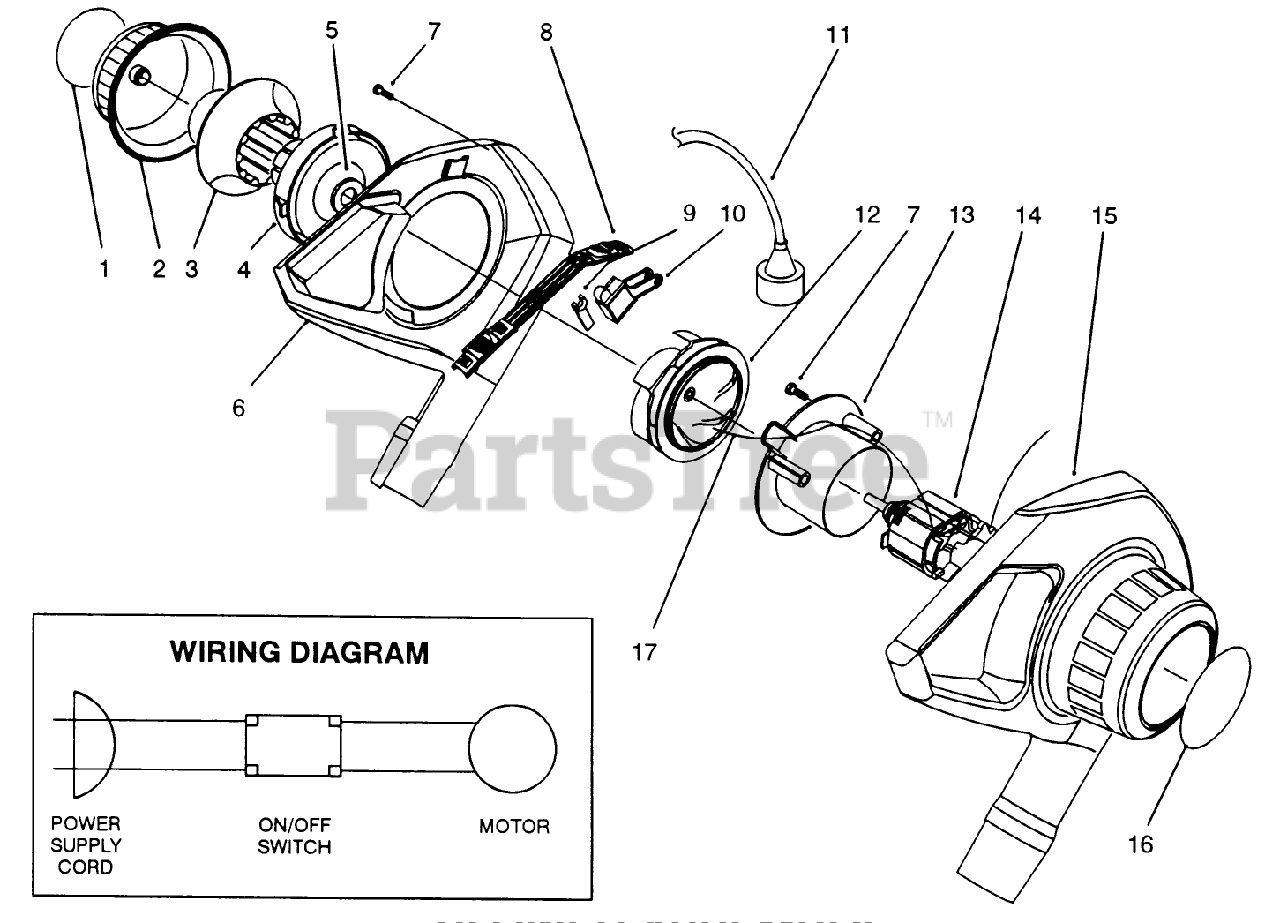

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 73-4230

DECAL, 600 CHOKE

$

$

Not available

2

Toro 73-7070

CHOKE COVER, 600/700

$

$

Not available

3

Toro 73-4060

MID BL-RING CHOKE

$14.99

$

In Stock, only 1 left!

0

4

Toro 73-7080

MID-BLOWER BASE CHOKE

$

$

Not available

5

Toro 73-7640

RETAINER CLIP

$

$

Not available

6

Toro 73-7120

HOUSING ASSY, RH

$

$

Not available

7

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Toro 73-4080

SWITCH BAR, 600/700

$

$

Not available

9

Toro 73-4090

MID BL-ACTUATOR

$

$

Not available

10

Toro 73-4151

SWITCH

$

$

Not available

11

Toro 73-3471

POWER SUPPLY CORD

$31.99

$

Usually ships in 3-6 days

0

12

Toro 73-4030

Impeller Assembly
(Superseded to 73-4020)

$

$

Not available

13

Toro 73-4141

RETAINING PLATE

$

$

Not available

14

Toro 73-4182

Motor
(Superseded to 73-4183)

$281.99

$

Usually ships in 3-6 days

0

15

Toro 73-7600

HOUSING, LH

$87.99

$

Usually ships in 3-6 days

0

16

Toro 73-4240

SERIAL DECAL 600

$18.99

$

Usually ships in 3-6 days

0

17

$

$

Not available
