51537 (600) - Toro Air Rake Blower (SN: 010000001 - 019999999) (1991) BLOWER ASSEMBLY Parts Diagram

Air Rake Blower

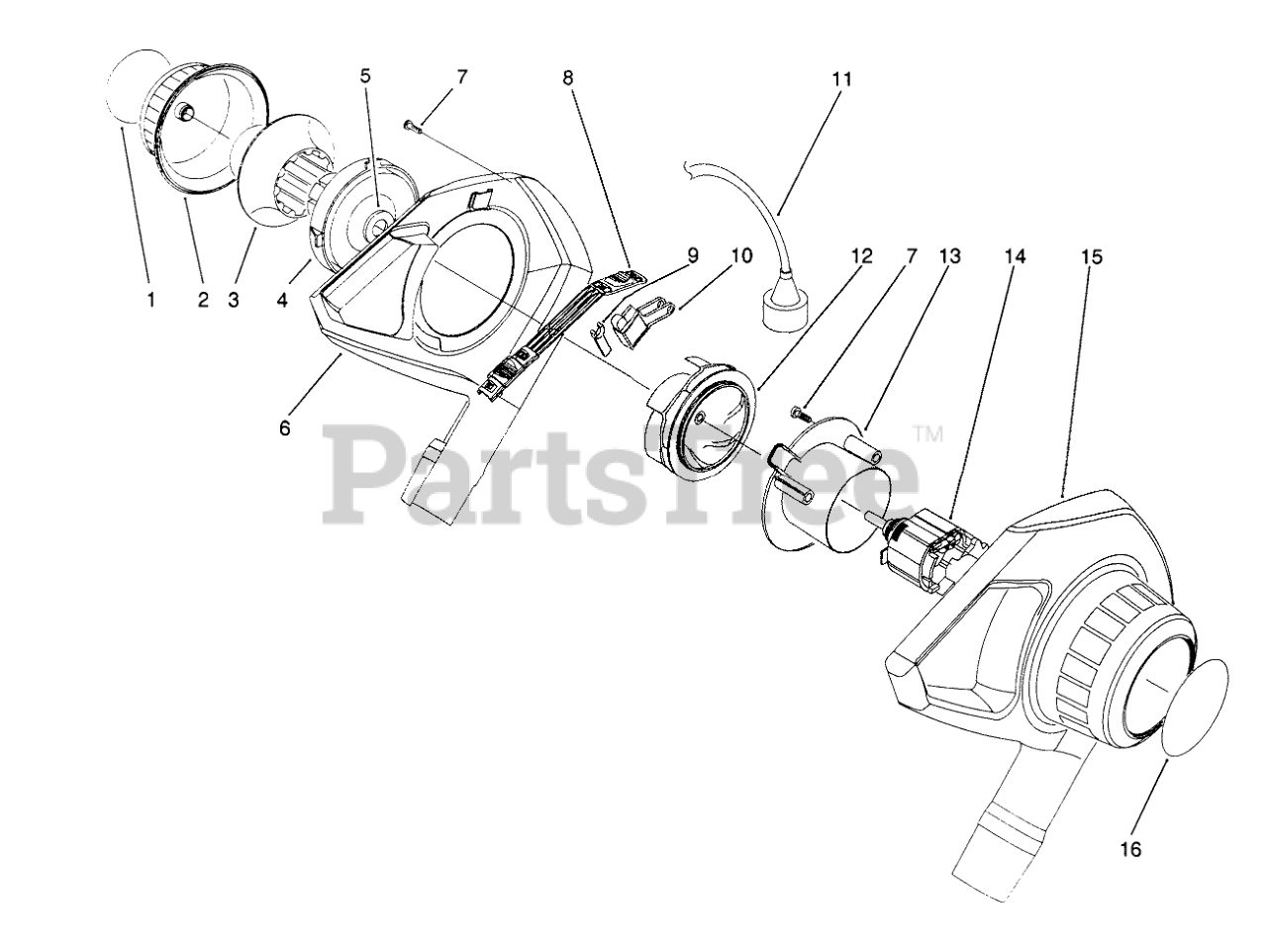

BLOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 73-4230

DECAL, 600 CHOKE

$

$

Not available

2

Toro 73-4050

CHOKE COVER, 600/700
(Superseded to 73-7070)

$

$

Not available

3

Toro 73-4060

MID BL-RING CHOKE

$14.99

$

In Stock, only 1 left!

0

4

Toro 73-4070

MID BL-BASE CHOKE

$7.99

$

In Stock, only 1 left!

0

5

Toro 32115-16

Clip-Retainer
(Superseded to 73-7640)

$

$

Not available

6

Toro 73-4110

HOUSING ASSY, RH

$

$

Not available

7

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Toro 73-4080

SWITCH BAR, 600/700

$

$

Not available

9

Toro 73-4090

MID BL-ACTUATOR

$

$

Not available

10

Toro 73-4150

Switch
(Superseded to 73-4151)

$

$

Not available

11

Toro 73-3471

POWER SUPPLY CORD

$31.99

$

Usually ships in 3-6 days

0

12

Toro 73-4020

Impeller Assembly

$

$

Not available

13

Toro 73-4140

Plate-Retaining
(Superseded to 73-4141)

$

$

Not available

14

Toro 73-4180

Motor
(Superseded to 73-4183)

$281.99

$

Usually ships in 3-6 days

0

15

Toro 73-4010

HOUSING, LH

$

$

Not available

16

Toro 73-4240

SERIAL DECAL 600

$18.99

$

Usually ships in 3-6 days

0
