51535 C (450 TX) - Toro Air Rake Blower (SN: 008000001 - 008999999) (1988) BLOWER ASSEMBLY Parts Diagram

Air Rake Blower

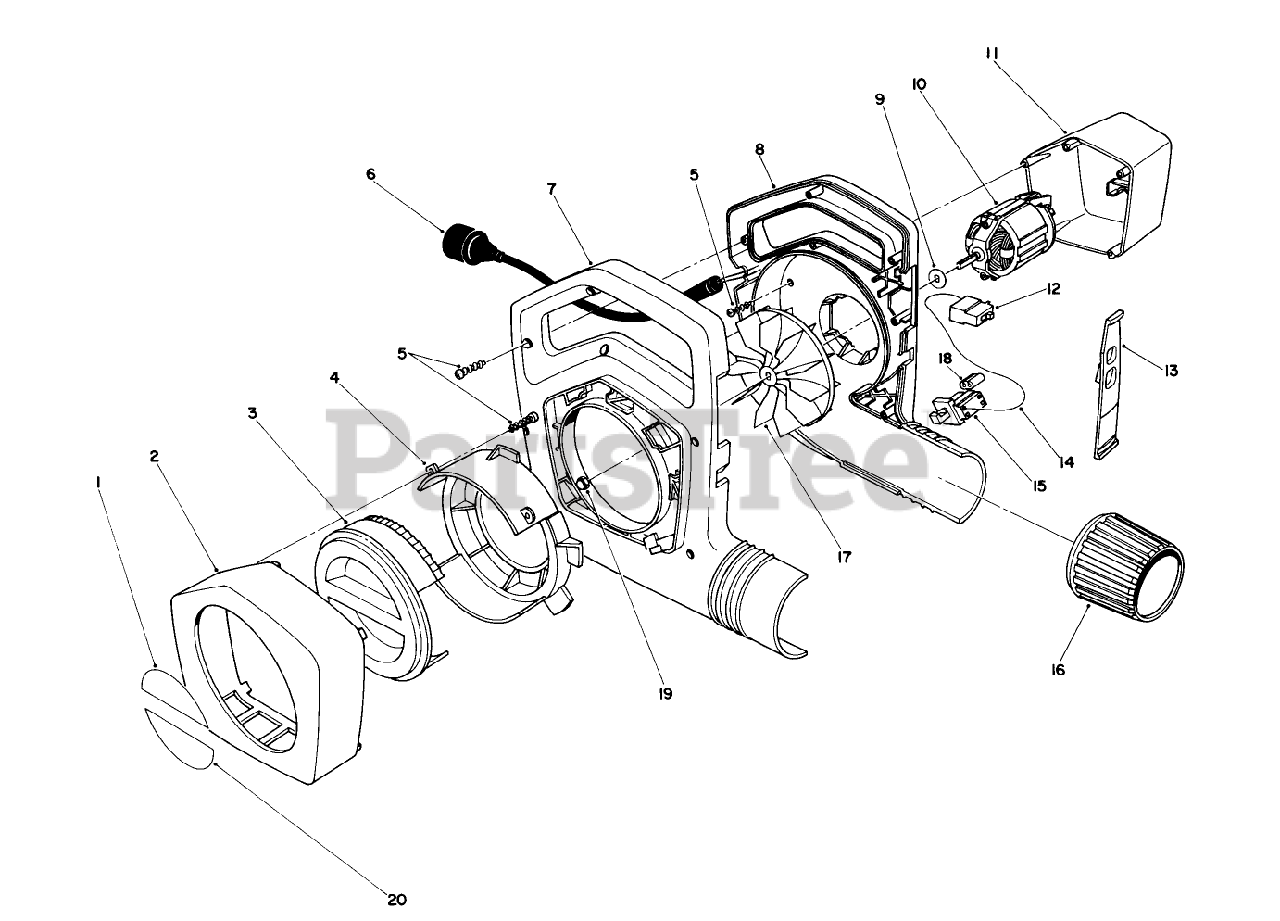

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 57-4290

Decal-Upper Choke (Model No. 51535)

$

$

Not available

Toro 57-5830

DECAL, UPPER CHOKE, 550

$

$

Not available

2

Toro 57-1050

Ring-Trim
(Superseded to 57-1051)

$

$

Not available

3

Toro 57-1020

Adjuster-Choke
(Superseded to 57-1021)

$

$

Not available

4

Toro 57-1040

Ring-Tab

$

$

Not available

5

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

6

Toro 42-0772

Cord-Power Supply
(Superseded to 42-0778)

$

$

Not available

7

Toro 60-9611

BLOWER HOUSING, RH

$

$

Not available

8

Toro 61-8430

Housing-L.H.
(Superseded to 61-8432)

$67.99

$

Usually ships in 3-6 days

0

9

Toro 57-4270

Washer-Impeller
(Superseded to 93-0585)

$1.49

$

In Stock, Qty 8

0

10

Toro 57-5960

Motor
(Superseded to 99-5394)

$

$

Not available

11

Toro 57-1070

HOT STAMPED MOTOR COVER
(Superseded to 57-1074)

$31.99

$

Usually ships in 3-6 days

0

12

Toro 57-5890

Switch-On/Off
(Superseded to 73-5780)

$

$

Not available

Toro 57-5900

Switch-Two Speed (Model 51545)

$

$

Not available

13

Toro 57-5921

Cam-Switch-On/Off (Model No. 51535C)

$

$

Currently unavailable

Toro 57-5941

Cam-Switch-Two Speed (Model No. 51545C)

$

$

Currently unavailable

14

Toro 57-4280

WIRE -INTERNAL

$

$

Not available

15

Toro 57-5910

SWITCH-INTERLOCK

$17.99

$

In Stock, only 1 left!

0

16

Toro 57-3260

Collar-Output
(Superseded to 57-3261)

$

$

Not available

17

Toro 57-3860

Impeller
(Superseded to 57-3861)

$

$

Not available

18

Toro 61-8440

Plug-Dust
(Superseded to 64-8990)

$

$

Not available

19

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

20

Toro 57-4300

DECAL, LOWER CHOKE, 450

$

$

Not available

Toro 57-5840

DECAL, LOWER CHOKE, 550

$

$

Not available
