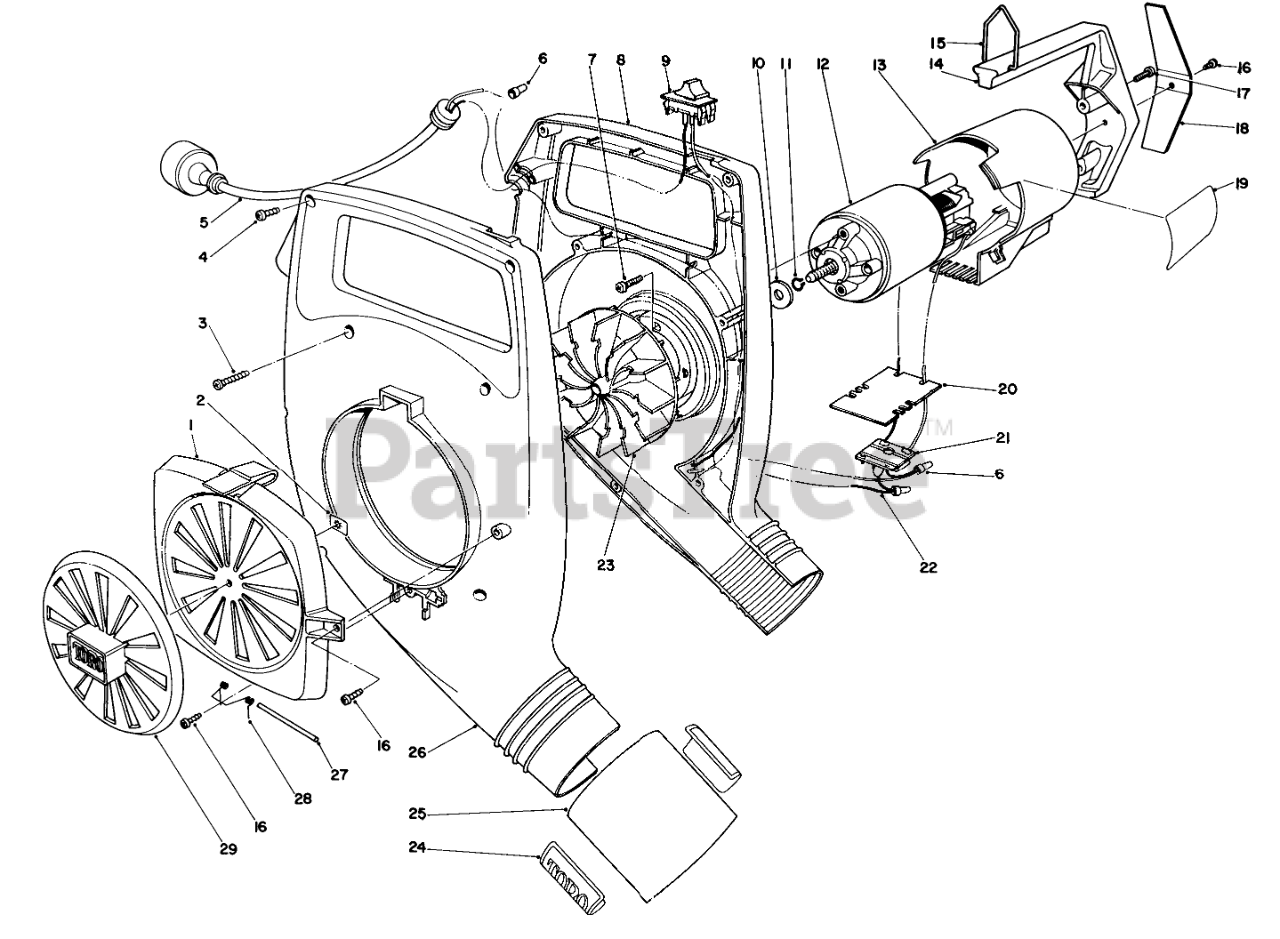

51530 (400 TX) - Toro Air Rake Blower (SN: 004000001 - 004999999) (1984) BLOWER ASSEBLY Parts Diagram

Air Rake Blower

BLOWER ASSEBLY Parts Diagram

  • Title
2

Toro 49-5090

PUSH NUT

$

$

Not available

3

Toro 49-4530

SCREW

$

$

Not available

4

Toro 49-4520

Screw

$

$

Not available

5

Toro 49-4780

Power Cord Assembly

$

$

Not available

6

Toro 49-4770

CONNECTOR

$

$

Not available

7

Toro 49-4500

SCREW

$

$

Not available

8

Toro 49-4850

LH HOUSING

$

$

Not available

9

Toro 49-4730

Switch (Model 51530)

$

$

Not available

Toro 49-4740

SWITCH ASM

$

$

Not available

10

Toro 49-4480

Washer

$

$

Not available

11

Toro 49-4470

Retaining Ring

$

$

Not available

12

Toro 49-4460

Motor

$

$

Not available

13

Toro 49-4400

Motor Cover

$

$

Not available

14

Toro 49-4410

Handle

$

$

Not available

15

Toro 49-4800

HANGER

$

$

Not available

16

Toro 49-4450

SCREW

$

$

Not available

17

Toro 49-4420

SCREW

$

$

Not available

18

Toro 49-4430

WARNING PLATE

$

$

Not available

19

Toro 49-5070

DECAL - 400TX

$

$

Not available

Toro 49-5080

DECAL - 500TBX

$

$

Not available

20

Toro 49-4750

Mounting Board

$

$

Not available

21

Toro 49-4790

P.C. Board Assembly

$

$

Not available

22

Toro 49-4760

LEADWIRE ASM

$

$

Not available

23

Toro 49-4510

Impeller Assembly

$

$

Not available

24

Toro 49-4810

Decal-Tube Collar

$

$

Not available

25

Toro 49-4570

Sleeve-Ferrule

$

$

Not available

26

Toro 49-4490

Housing-Inlet Side

$

$

Not available

27

Toro 49-4560

HINGE PIN

$

$

Not available

28

Toro 49-4550

Spring

$

$

Not available

29

Toro 49-4540

Inlet Cover Housing (Incl. Ref. #29)

$

$

Not available
