51521 - Toro Super Blower Vacuum (SN: 200000001 - 200999999) (2000) BLOWERVAC ASSEMBLY Parts Diagram

Super Blower Vacuum

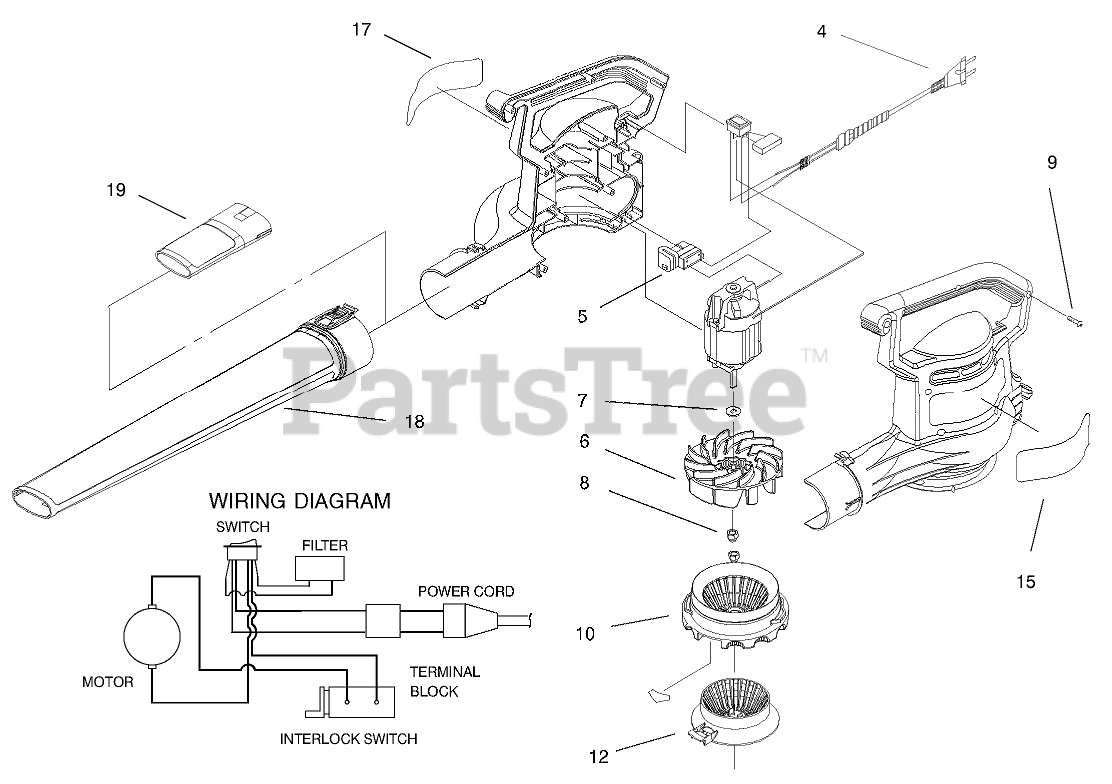

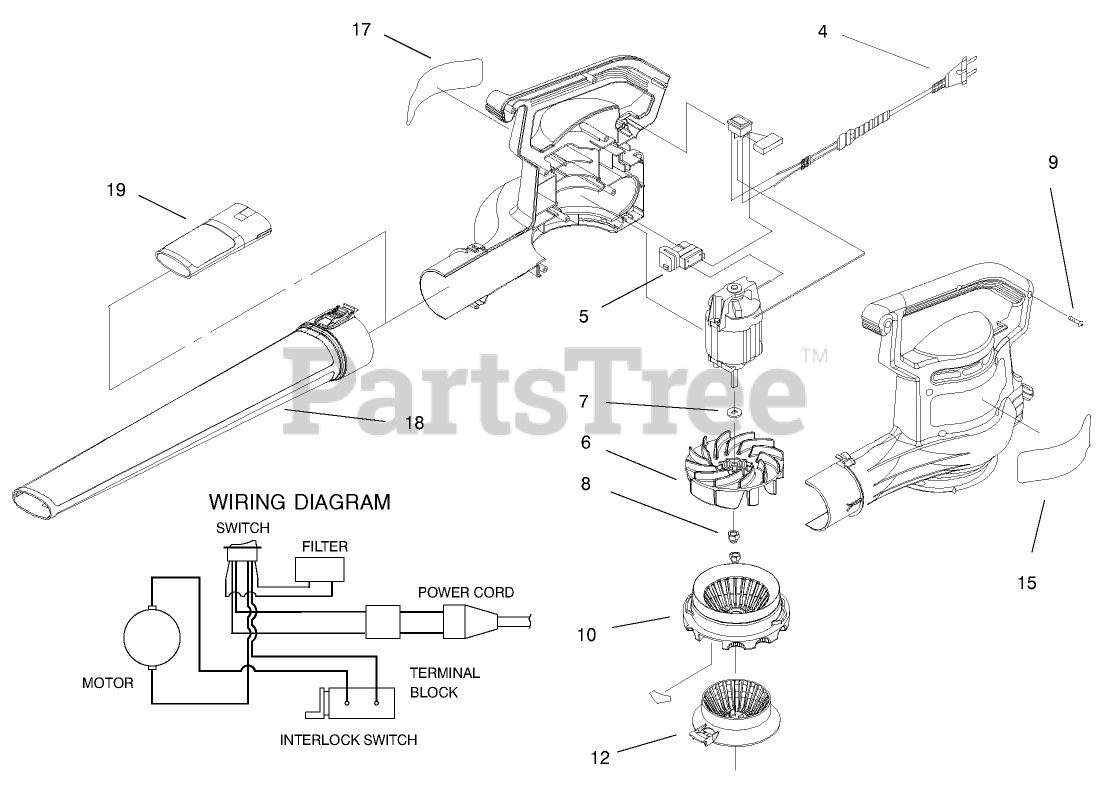

BLOWERVAC ASSEMBLY Parts Diagram

  • Title

4

Toro 98-3179

HARNESS - BLOWER, 230 VOLT (AUSTRALIA)

$

$

Not available

5

Toro 95-3286

SWITCH - INTERLOCK

$17.99

$

Usually ships in 3-6 days

0

6

Toro 98-3150

IMPELLER - BLOWER
(Superseded to 100-9068)

$34.99

$

In Stock, Qty 20+

0

7

Toro 93-0585

WASHER

$1.49

$

In Stock, Qty 8

0

8

Toro 93-9993

NUT - IMPELLER

$

$

Not available

9

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 100-9050

ASM-INLET COVER & DECAL

$

$

Not available

12

Toro 98-3155

CHOKE - AIR, RED

$6.99

$

Usually ships in 3-6 days

0

15

Toro 93-0579

DECAL, LOGO, SUPRBLWR

$

$

Not available

17

Toro 100-2475

Label Stock-Serial, Australia

$

$

Currently unavailable

18

Toro 98-3151

TUBE-BLOWER LONG
(Superseded to 93-0571)

$

$

Not available

19

Toro 98-3152

INSERT - TUBE

$

$

Not available
