515173 - Gravely ZT 50" Doubler Plate Kit Doubler Plate Kit 50" Parts Diagram

ZT 50" Doubler Plate Kit

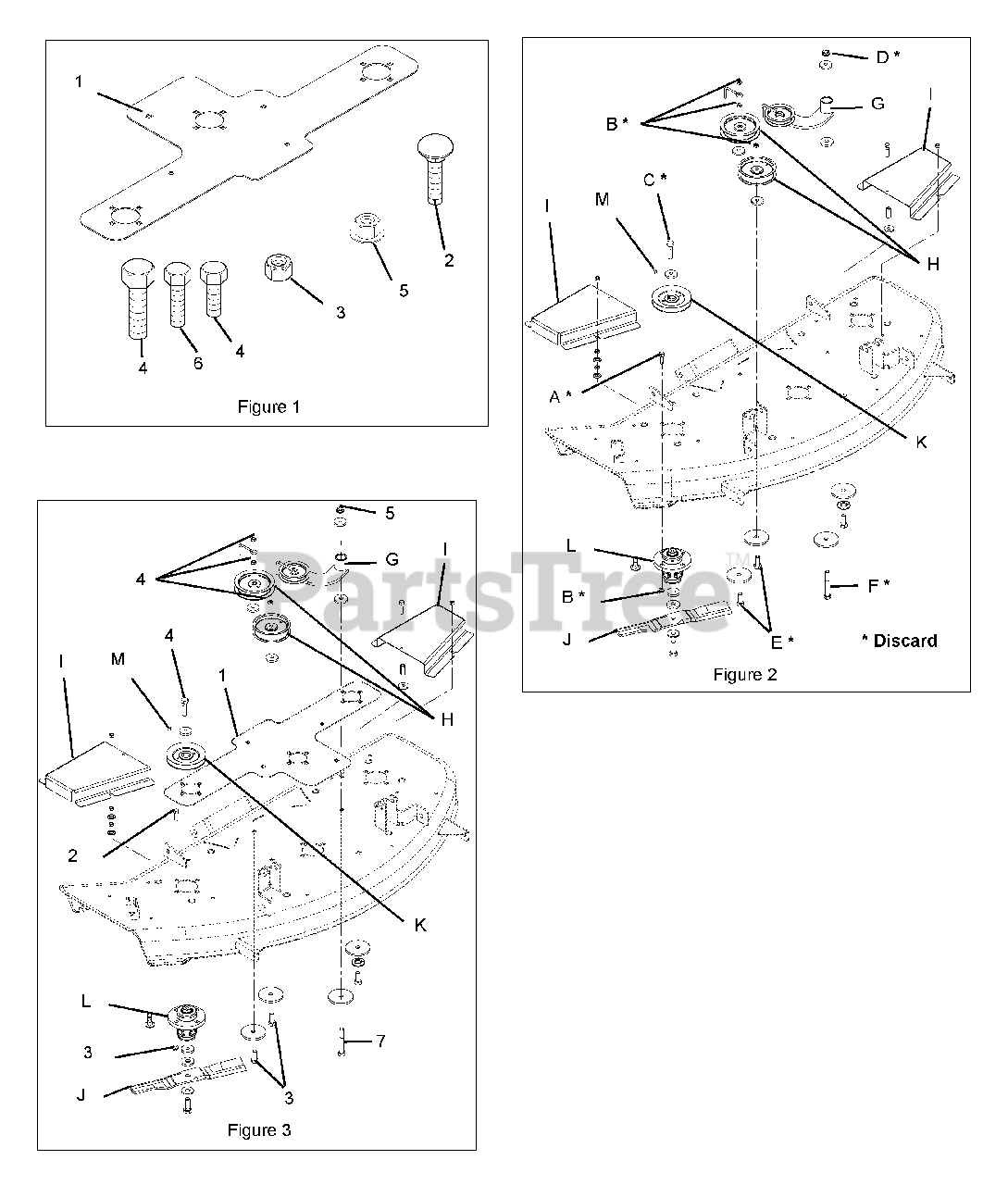

Doubler Plate Kit 50" Parts Diagram

  • Title

1

Gravely 00616051

50" Doubler Plate
(Superseded to 51517300)

$190.99

$

Usually ships in 4-12 days

0

2

Gravely 06224100

3/8" x 1-1/4" Round Head Square Neck Bolt
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06545500

3/8" Nylon Flange Nut
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05900013

3/8" x 1" Hex Bolt
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06543600

1/2" Top Lock Flange Nut
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05961400

3/8" x 2-3/4" Hex Bolt
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

7

Gravely 05961400

1/2" x 3-1/2" Hex Bolt
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

A

3/8" x 1-1/4" Round Head Square Neck Bolt

3/8" x 1-1/4" Round Head Square Neck Bolt

Note: Discard

$

$

Not available

B

3/8" Nylon Flange Nut

3/8" Nylon Flange Nut

Note: Discard

$

$

Not available

C

3/8" x 1" Hex Bolt

3/8" x 1" Hex Bolt

Note: Discard

$

$

Not available

D

1/2" Top Lock Flange Nut

1/2" Top Lock Flange Nut

Note: Discard

$

$

Not available

E

3/8" x 2-3/4" Hex Bolt

3/8" x 2-3/4" Hex Bolt

Note: Discard

$

$

Not available

F

1/2" x 3-1/2" Hex Bolt

1/2" x 3-1/2" Hex Bolt

Note: Discard

$

$

Not available

G

Idler Arm

Idler Arm

Note: Keep

$

$

Not available

H

Idler

Idler

Note: Keep

$

$

Not available

I

Belt Cover

Belt Cover

Note: Keep

$

$

Not available

J

Mower Blade

Mower Blade

Note: Keep

$

$

Not available

K

Spindle Pulley

Spindle Pulley

Note: Keep

$

$

Not available

L

Spindle

Spindle

Note: Keep

$

$

Not available

M

Woodruff Key

Woodruff Key

Note: Keep

$

$

Not available
