515156 - Ariens Zoom 40" Deck Kit Deck Kit 1540 (PN 51515600) Parts Diagram

Zoom 40" Deck Kit

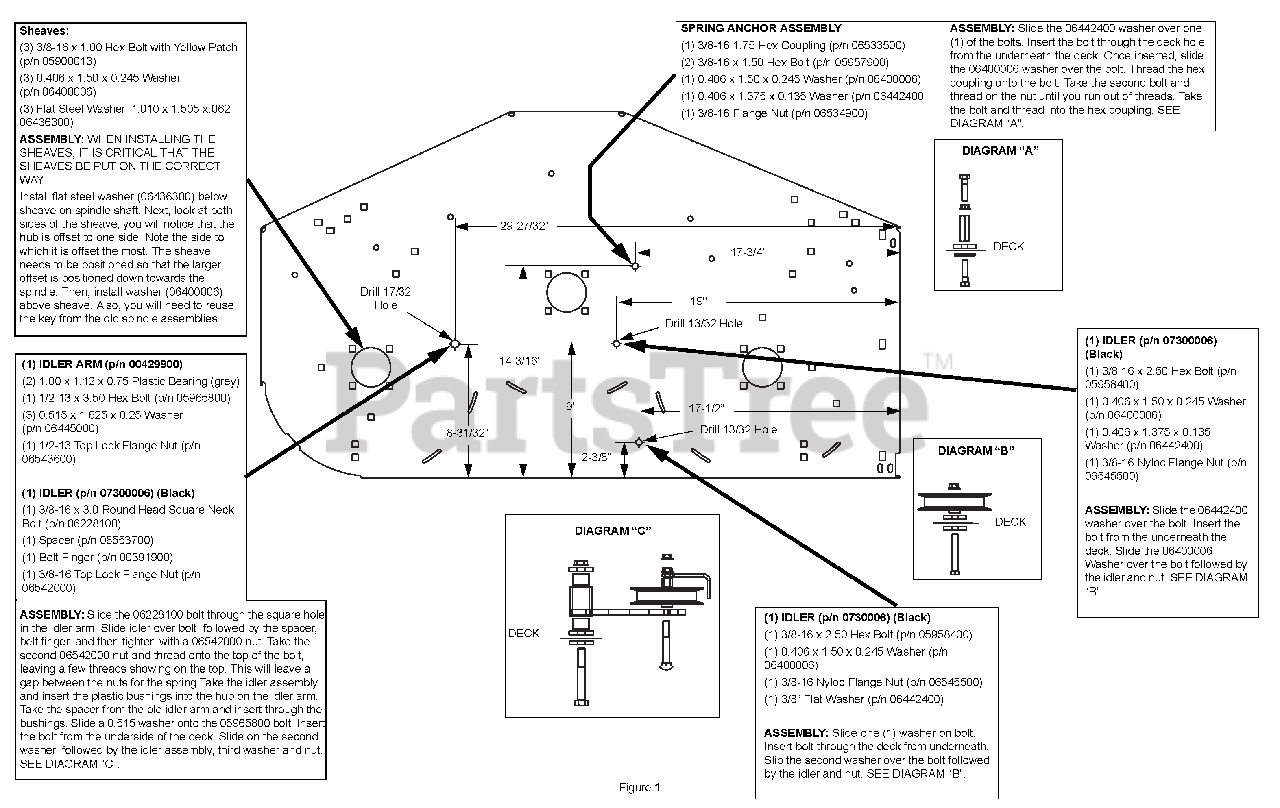

Deck Kit 1540 (PN 51515600) Parts Diagram

  • Title
00429900

Ariens 00429900

WMT, IDLER ARM

$82.99

$

Usually ships in 4-12 days

0

00391900

Ariens 00391900

BELT FINGER

$20.99

$

In Stock, only 2 left!

0

05435800

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

05957900

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

05958400

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

05965800

Ariens 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

05900013

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

06228100

Ariens 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

06400006

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

06442400

Ariens 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

06445000

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

06533500

Ariens 06533500

NUT COUPLING .375-16X1.75

$3.99

$

In Stock, Qty 6

0

06534900

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

06542000

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

06543600

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

06545500

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

06545500

Ariens 07200037

HEX BELT, BB-WRAPPED

$79.99

$

In Stock, only 3 left!

0

07300006

Ariens 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

07300006

Ariens 08300020

EXTENSION SPRING

$26.99

$

In Stock, only 2 left!

0

08553700

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

06436300

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

06436300

Ariens 51515600

KIT, 40" DECK (1540)

$

$

Not available
