515150 - Gravely 48" ZT Deck Repair Kit Deck Kit 48-Inch (PN 51515000) Parts Diagram

48" ZT Deck Repair Kit

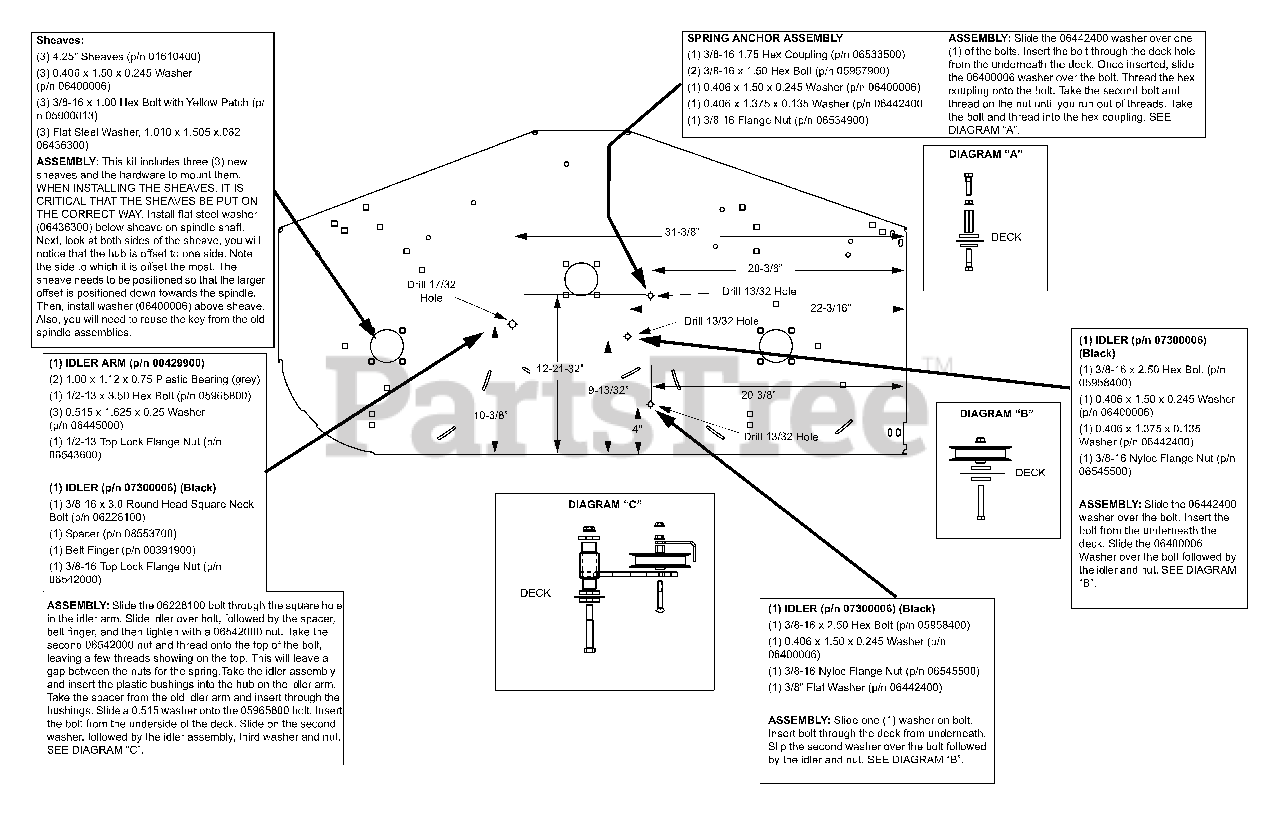

Deck Kit 48-Inch (PN 51515000) Parts Diagram

  • Title
00429900

Gravely 00429900

Idler Arm

$82.99

$

Usually ships in 4-12 days

0

00391900

Gravely 00391900

Belt Finger

$20.99

$

In Stock, only 2 left!

0

01610400

Gravely 01610400

4.25" Dia. Spindle Sheave

$45.99

$

In Stock, only 1 left!

0

Gravely 05435800

Bearing, 1.00 x 1.12 x 0.75

$9.49

$

In Stock, Qty 10

0

05957900

Gravely 05957900

Hex Bolt, .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

05958400

Gravely 05958400

Hex Bolt, .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

05965800

Gravely 05965800

Hex Bolt, .50-16 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

05900013

Gravely 05900013

Hex Bolt, .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

06228100

Gravely 06228100

Round Head Square Neck Bolt, .38-16 x 3.0 Grade 5
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

06400006

Gravely 06400006

Flat Steel Washer, .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

06442400

Gravely 06442400

Flat Steel Washer, .406 x 1.375 .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

06445000

Gravely 06445000

Flat Steel Washer, .515 x 1.625 .250

$5.99

$

In Stock, only 3 left!

0

06533500

Gravely 06533500

Cup Plug Nut, .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

06534900

Gravely 06534900

Flange Nut, .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

Gravely 06534800

Top-Locking Flange Nut, .38-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

06543600

Gravely 06543600

Top-Locking Flange Nut, .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

06545500

Gravely 06545500

Nylon Locking Flange Nut, .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

Gravely 07200022

V-Belt, 137" HA

$108.99

$

In Stock, Qty 6

0

07300006

Gravely 07300006

Flat Idler, .38 x 4.0 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

Gravely 08300020

Extension Spring

$26.99

$

In Stock, only 2 left!

0

08553700

$5.99

$

In Stock, only 1 left!

0

06436300

Gravely 06436300

Flat Steel Washer, 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

06542000

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

Gravely 51515000

Deck Kit 48-Inch

$285.99

$

Usually ships in 4-12 days

0
