515112 - Ariens 42" to 40" Replacement Deck Kit Upper/Lower Handlebar Kit Parts Diagram

42" to 40" Replacement Deck Kit

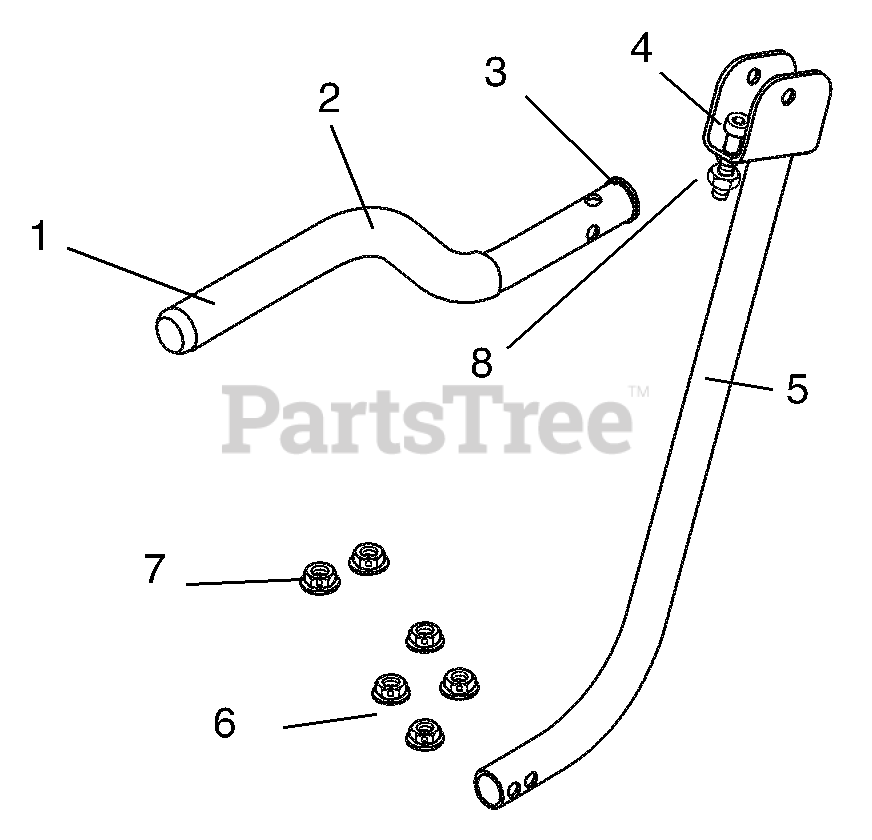

Upper/Lower Handlebar Kit Parts Diagram

  • Title

1

Ariens 01570000

GRIP - HANDLEBAR

Note: Pre-assembled on upper handlebar (item 2).

$17.99

$

In Stock, only 2 left!

0

2

Ariens 01607251

HANDLE BAR (UPPER)

Note: (Upper)

$

$

Not available

3

Ariens 07533300

CAPLUG, HANDLEBAR

Note: Pre-assembled on upper handlebar (item 2).

$2.49

$

In Stock, only 3 left!

0

4

Ariens 05980700

SCR-SKH .31-18X2.00 GR8

Note: Pre-assembled on lower handlebar weldment (item 5).

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 01607151

WLDM'T HANDLEBAR

$

$

Not available

6

Ariens 06544400

NUT-LK-TOP-FLG .31-18 BLKZC
(Superseded to 06545400)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06544500

NUT-LK-TOP-FLG .38-16 BLKZC
(Superseded to 06545500)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

Note: Pre-assembled on lower handlebar weldment (item 5).

$0.99

$

In Stock, Qty 20+

0
