5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: S0186072 - S0204132) FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

Pony V Rear-Tine Tiller

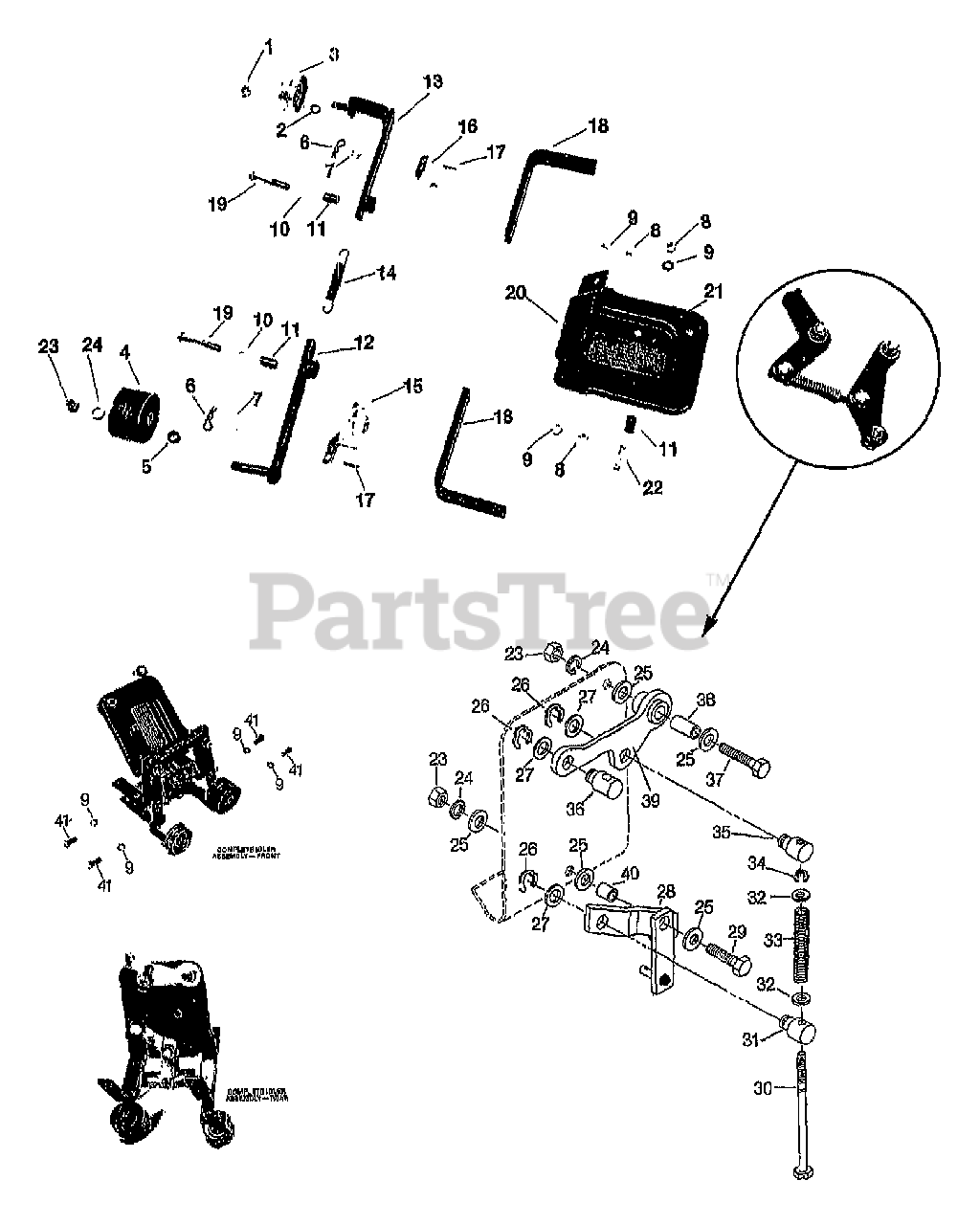

FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

2

Troy-Bilt 20513

BUSHING-.54X.38X.08

$

$

Currently unavailable

3

Troy-Bilt 9460

IDLER-REV

$

$

Currently unavailable

4

Troy-Bilt 9090

PULLEY-IDLER FORWARD
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

5

MTD 9091

SPACER-IDLER FWD

$

$

Not available

6

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

8

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

9

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

10

MTD 20545

WASHER-#.75X.32X.09 ZP

$

$

Not available

11

MTD 9479

BUSHING-.438X.323X.712

$

$

Not available

12

Troy-Bilt 20657

ARM-IDLER FWD PNT

$

$

Currently unavailable

13

Troy-Bilt 20656

ASSM-IDLER REV @ DEPL

$

$

Currently unavailable

14

Troy-Bilt 1492

SPRING-.436 X 3.25
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

15

MTD 20517-01

LINK-FWD

$

$

Not available

16

$

$

Currently unavailable

17

MTD 9340

PIN-CLEVIS .375X.719 ZP

$

$

Not available

18

MTD 20751

MOUNT BAR-PNT (20691)

$

$

Not available

19

Troy-Bilt 9741

BOLT-HH 5/16-18 X 2 G5 ZP
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 20622

BASE-SHIFTING W/DECAL (INCL. #50112 DECAL)

$

$

Currently unavailable

21

Troy-Bilt 50112

DECAL-BELT WARNING INSTR. ON BELTS/PULLEYS

$

$

Currently unavailable

22

Troy-Bilt 9574

SCR-HH 5/16-18X1.25 G5ZP

$

$

Currently unavailable

23

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

24

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

25

Troy-Bilt 20553

SPACER-.88X.385X.09 ZP
(Superseded to GW-20553)

$

$

Not available

26

Troy-Bilt 9515

RING-KLIP .500 ZINC

$

$

Currently unavailable

27

Troy-Bilt 20546

WASHER-#.88X.51X.063 ZP
(Superseded to GW-20546)

$

$

Not available

28

Troy-Bilt 20680

BELLCRANK-WELDMENT

$

$

Currently unavailable

29

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

30

Troy-Bilt 20552

SCR-HH 1/4-20X4.5 G5

$

$

Currently unavailable

31

Troy-Bilt 20504

PIVOT-SLIDE

$

$

Currently unavailable

32

Troy-Bilt 20554

WASHER # ZP

$

$

Currently unavailable

33

Troy-Bilt 20544

SPRING-.52 X 3

$

$

Currently unavailable

34

Troy-Bilt 9514

RING-KLIP 5304-25
(Superseded to GW-9514)

$6.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 20505

PIVOT-THREADED

$

$

Currently unavailable

36

MTD 20506

PIVOT-ROD (FOR FORWARD/REVERSE LEVER)

$

$

Not available

37

MTD 9558

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

38

Troy-Bilt 9060

BUSHING-.5X.38X.665

$

$

Currently unavailable

39

Troy-Bilt 20719

RODCRANK

$

$

Currently unavailable

40

Troy-Bilt 20532

BUSHING-.5X.38X.4
(Superseded to GW-20532)

$

$

Not available

41

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable
