5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Transmission Housing, Covers, Seals, Gaskets & Plugs Parts Diagram

Pony V Rear-Tine Tiller

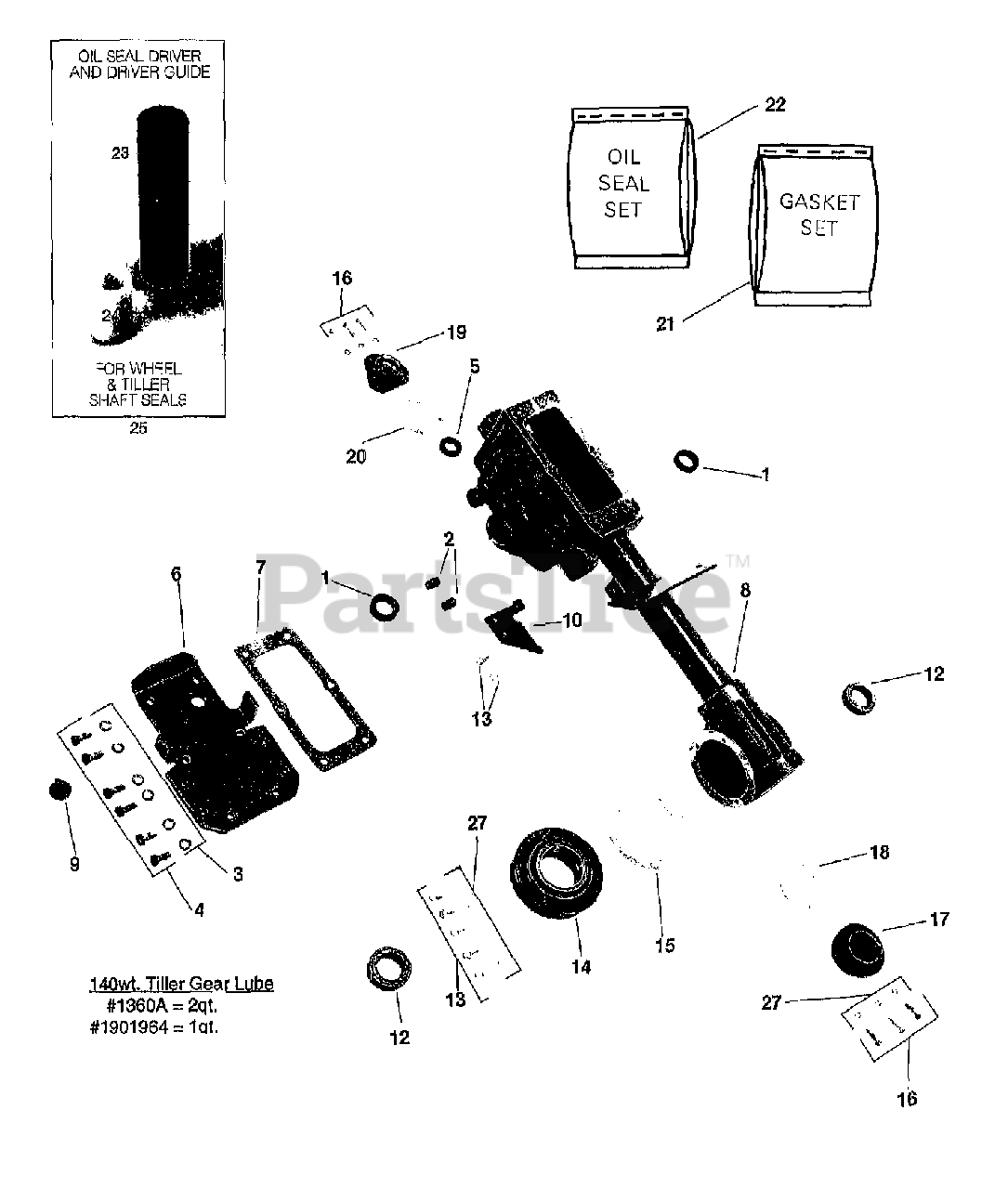

Transmission Housing, Covers, Seals, Gaskets & Plugs Parts Diagram

  • Title

1

Troy-Bilt 9621

OIL SEAL-double lip, wheel shaft, right and left sides
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

PLUG-pipe, 1/4", oil level hole and gear oil drain hole
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 9912

LOCKWASHER-5/16", transmission top cover

$

$

Currently unavailable

4

Troy-Bilt 9703

BOLT- hex head, 5/16"-18 x 3/4",transmission top cover

$

$

Currently unavailable

5

Troy-Bilt 9600

OIL SEAL- input pinion shaft, front of transmission

$

$

Currently unavailable

6

Troy-Bilt 20692

COVER-top of transmission

$

$

Currently unavailable

7

Troy-Bilt 20694

GASKET-transmission top cover
(Superseded to GW-20694P)

$5.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 20778

TRANSMISSION CASE, REAR HOUSING & TUBE ASSEMBLY-

Note: includes one #9429 rear bearing race

$

$

Currently unavailable

9

Troy-Bilt 9467

PLUG-for gear oil fill hole on transmission cover
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 20756

PLATE-mounts on transmission housing

Note: (for wheel drive cable)

$

$

Currently unavailable

12

MTD 9623

OIL SEAL-tiller shaft, left and right sides
(Superseded to 690-900-0049)

$

$

Not available

13

Troy-Bilt 9780

BOLT-hex head, flanged self-locking, 1/4"-20 x 5/8"

$

$

Currently unavailable

14

Troy-Bilt 10812

COVER-tiller housing, left side,

Note: includes one rear bearing race and five #9780 flanged, self-locking hex head bolts

$

$

Currently unavailable

15

Troy-Bilt 1129-1

GASKET-tiller housing cover, .010" thick (fits all covers)
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

16

Troy-Bilt 9773

BOLT-hex head, flanged self-locking. 1/4"-20 x 7/8"

$

$

Currently unavailable

17

Troy-Bilt 1115

CAP-rear bearing

$

$

Currently unavailable

18

Troy-Bilt 1124-2

GASKET-rear bearing cap, .010" thick
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

19

Troy-Bilt 20695

CAP-front bearing

$

$

Currently unavailable

20

Troy-Bilt 20693-2

GASKET-front bearing cap, .010" thick

$

$

Currently unavailable

21

Troy-Bilt 10358

GASKET SET-

Note: includes: one #20694 (Index No. 7); one #20893-2 (Index No. 20); two 1129-1 (Index No. 15); one #1129-2 (same as #1129-1 only.030" thick); two #1124-2 (Index No. 18)

$

$

Currently unavailable

22

Troy-Bilt 10813

OIL SEAL SET-

Note: includes two #9621 (Index No. 1) two #9623 (Index No. 12); one #9600 (Index No. 5); one #9622 (Page 17, Index No. 13)

$

$

Currently unavailable

23

Troy-Bilt 4921-1

OIL SEAL DRIVER-

Note: for wheel shaft and tiller shaft oil seal installation (use with Part #4921-2)

$

$

Currently unavailable

24

Troy-Bilt 4921-2

OIL SEAL DRIVER GUIDE-to install wheel shaft and tiller shaft oil seals (use with Part #4921-1)

$

$

Currently unavailable

25

Troy-Bilt 4921

OIL SEAL DRIVER & GUIDE SET-

Note: includes one #4921-1 driver and one #4921-2 Guide

$2.99

$

In Stock, only 2 left!

0

27

WASHER-nylon, not reusable

Note: (if bolts with these washers are removed, discard washers, then apply non-hardening gasket sealant to bolt threads and replace bolts securely); see kit below

$

$

Not available

Troy-Bilt 10148

NYLON WASHER KIT -

Note: incl. eight nylon washers (Index No. 27)

$

$

Currently unavailable

$

$

Not available
