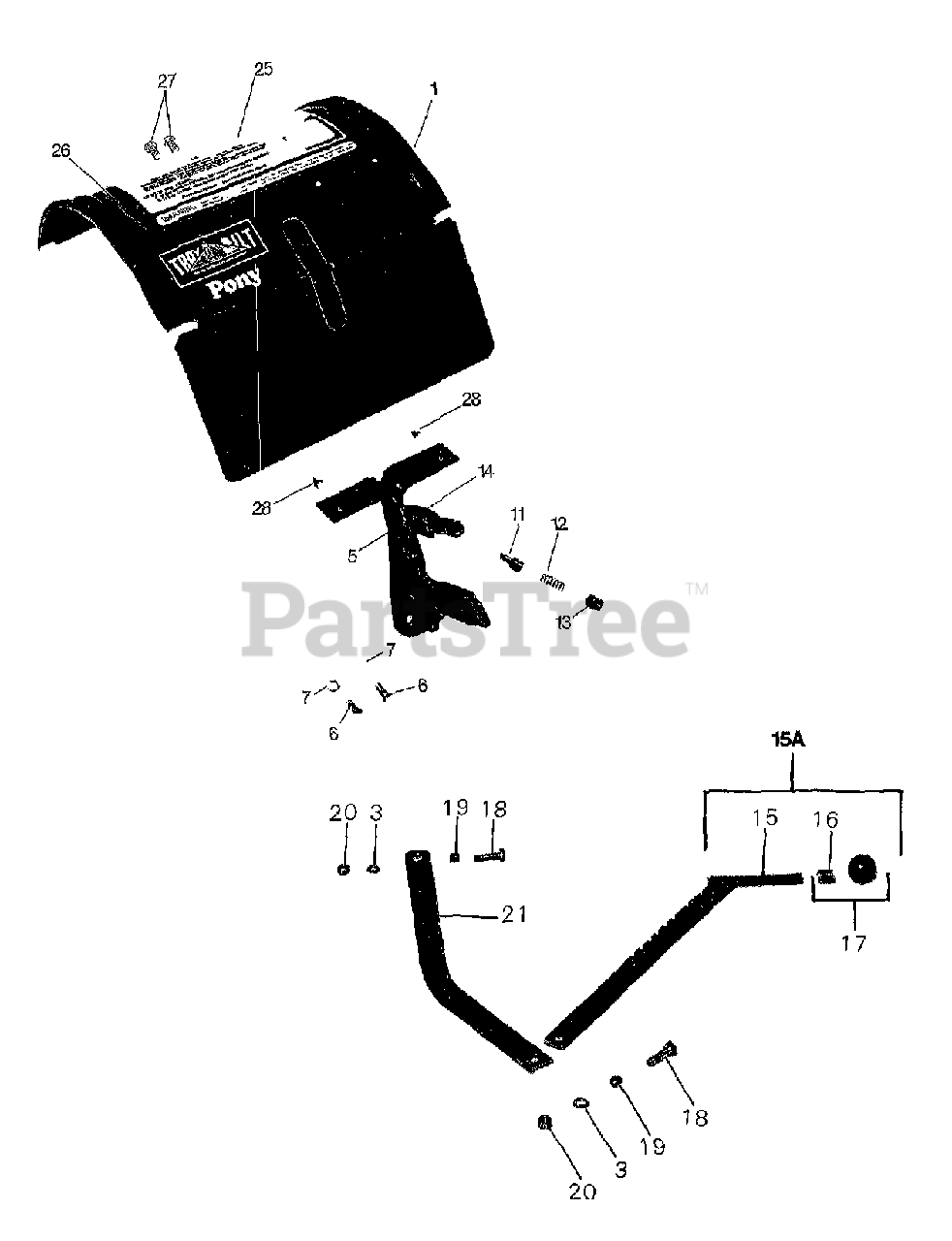

5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Hood, Bracket & Depth Regulator Parts Diagram

Pony V Rear-Tine Tiller

Hood, Bracket & Depth Regulator Parts Diagram

  • Title

1

Troy-Bilt 20732

HOOD-tine cover, with hinged flap

Note: (incl. Decals #20733 & 20401)

$

$

Currently unavailable

3

Troy-Bilt 9913

LOCKWASHER- 3/8"

$

$

Currently unavailable

5

Troy-Bilt 2255

BRACKET-hood & depth regulator,

Note: Incl. roll pin #9308

$

$

Currently unavailable

6

Troy-Bilt 9703

BOLT-hex head, 5/16-18 x 3/4" (bracket to rear bearing cap)

$

$

Currently unavailable

7

Troy-Bilt 9912

LOCKWASHER-5/16"

$

$

Currently unavailable

11

Troy-Bilt 1119

PLUNGER-depth regulator locking

$

$

Currently unavailable

12

Troy-Bilt 1120

SPRING-depth regulator plunger

$

$

Currently unavailable

13

Troy-Bilt 9726

PLUG -pipe, 1/4"
(Superseded to 1105620)

$4.49

$

In Stock, only 4 left!

0

14

Troy-Bilt 9308

ROLL PIN-1/4" x 1"(spiral)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

15

BAR- depth adjustment

Note: (not avail. sep.-see Index 15A)

$

$

Not available

15A

Troy-Bilt 1117A

BAR ASSEMBLY-depth adjustment
(Superseded to 1900864)

Note: (Incl. Index No's. 15, 16, 17)

$86.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 9120

RING- retaining, tolerance ring
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 9119

KNOB-depth regulator,
(Superseded to GW-9119)

Note: Incl. retaining ring, Index 16

$11.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 9712

BOLT- hex head, 3/8"-16 x 1 1/4"

$

$

Currently unavailable

19

Troy-Bilt 1113-1

BUSHING-spacer, drag bar
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 9802

NUT-hex, 3/8-16

$

$

Currently unavailable

21

Troy-Bilt 20775

DRAG BAR-depth regulator
(Superseded to 1916185001)

$

$

Not available

25

Troy-Bilt 20733

DECAL-tiller operation instructions

$

$

Currently unavailable

26

Troy-Bilt 20401

DECAL-Troy-Bilt Pony (model name decal)

$

$

Currently unavailable

27

Troy-Bilt 9553

SCREW-hex head, 5/16"-18 x 1/2" self-tapping
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 11

0

28

Troy-Bilt 9552

SCREW-flanged hex head, 1/4"-20 x 1/2" self-tapping (attaches hood to depth regulator bracket)
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
