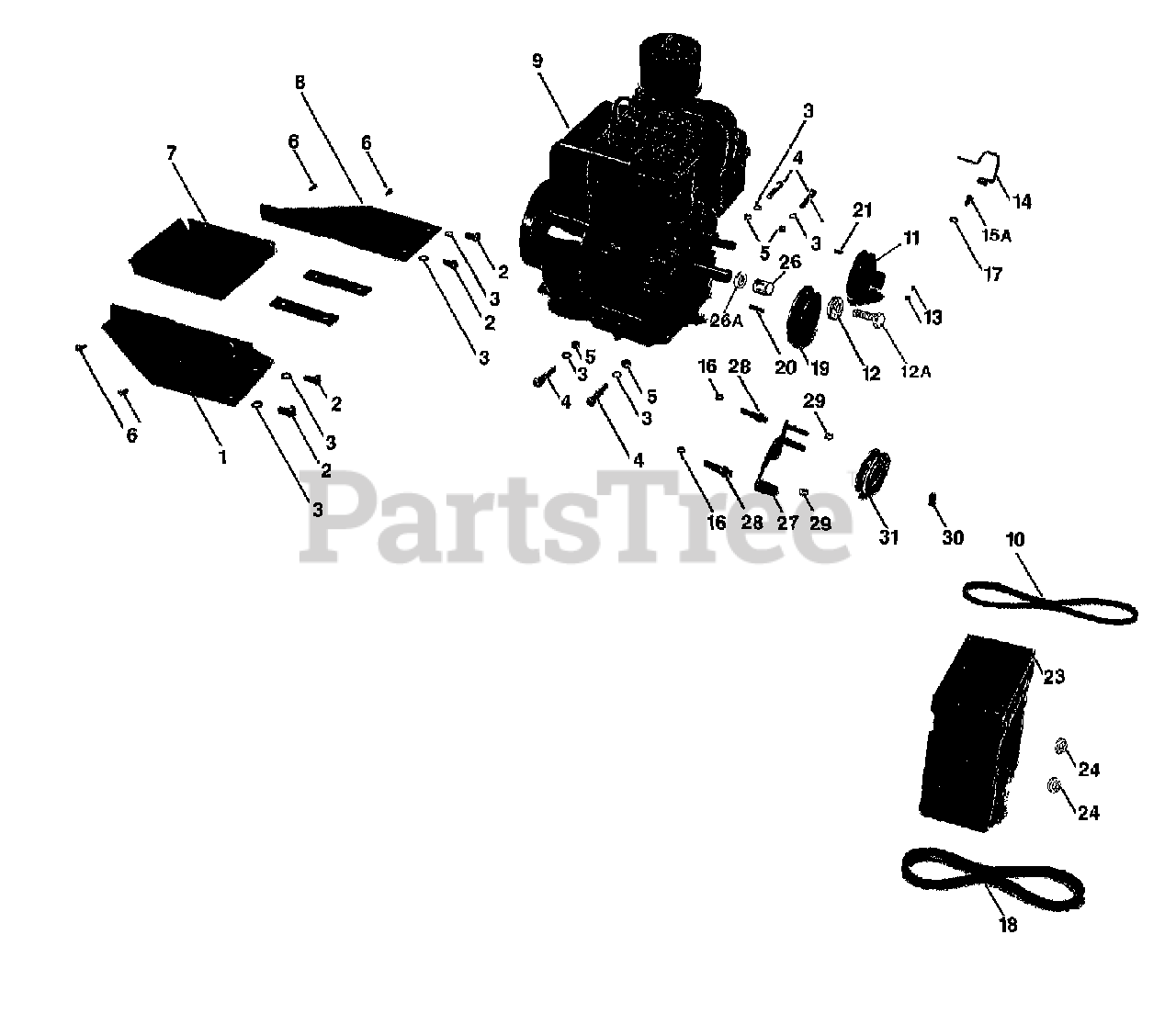

5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Engine & Support Brackets, Pulleys, Belts, Belt Cover Parts Diagram

Pony V Rear-Tine Tiller

Engine & Support Brackets, Pulleys, Belts, Belt Cover Parts Diagram

  • Title

1

MTD 20754

SUPPORT BRACKET-engine, left side

$

$

Not available

2

Troy-Bilt 9703

BOLT-hex head, 5/16-18 x 3/4", brackets to transmission

$

$

Currently unavailable

3

Troy-Bilt 9912

LOCKWASHER-5/16"

$

$

Currently unavailable

4

Troy-Bilt 9758

BOLT-5/16"-18 x 1 1/2"

$

$

Currently unavailable

5

Troy-Bilt 9801

NUT-hex, 5/16"-18

$

$

Currently unavailable

6

Troy-Bilt 9768

SCREW-hex head, No. 10-32 x 1/2" self-tapping (sems-with permanent washer)

$

$

Currently unavailable

7

Troy-Bilt 20673

SUPPORT BRACKET(PAN)-engine,front
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

8

MTD 20755

SUPPORT BRACKET-engine, right side

$

$

Not available

9

ENGINE - Briggs & Stratton, standard recoil start with Magnetron ignition, 5 HP, Model 130292, Type 1900-01

$

$

Not available

9

ENGINE-Briggs & Stratton, electric start with Magnetron ignition, 5HP, Model 130297, Type 1901-01

$

$

Not available

10

Troy-Bilt 50134

V-BELT-Reverse
(Superseded to GW-50134)

Note: (See V-Belt Set Below)

$30.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 20503

REVERSE PULLEY- engine driven, one groove, single belt

$

$

Currently unavailable

12

Troy-Bilt 9944

WASHER- disc spring (concave surface faces forward pulley)
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

12A

Troy-Bilt 9655

BOLT-hex head 5/16"-24 x 3/4" (attaches forward pulley), Grade 5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

13

MTD 9561

SET SCREW- socket head, 1/4"-20 x 1/4",(secures reverse engine pulley)

$

$

Not available

14

MTD 20555

BELT GUIDE- forward drive belt

$

$

Not available

15A

Troy-Bilt 9573

BOLT-hex head, 1/4"-20 x 3/4", self-tapping
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 9910

LOCKWASHER-1/4"

$

$

Currently unavailable

17

Troy-Bilt 9900

WASHER-plain (flat), 1/4", S.A.E

$

$

Currently unavailable

18

Troy-Bilt 20565

V-BELT-forward

Note: (See V-Belt Set below)

$

$

Currently unavailable

19

MTD 20765

FORWARD PULLEY-engine driven, one groove, single belt

$

$

Not available

20

Troy-Bilt 9301

KEY -3/16" square x 1", forward pulley to forward PTO shaft
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

21

MTD 9361

KEY- Woodruff (size #5),reverse pulley to reverse PTO shaft

$

$

Not available

23

Troy-Bilt 20655

COVER -shields belts and pulleys

$

$

Currently unavailable

24

Troy-Bilt 9848

NUT-5/16"-18, locking, whiz-style

$

$

Currently unavailable

26

Troy-Bilt 9089

SPACER (on forward PTO shaft between engine and forward pulley)

$

$

Currently unavailable

26A

Troy-Bilt 1138-2

SHIM (on forward PTO shaft between engine and spacer)
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 4922

V-BELT SET-

Note: (Includes #20565 forward and #50134 reverse belts)

$

$

Currently unavailable

27

Troy-Bilt 20648

MOUNTING BRACKET- reverse idler pulley

$

$

Currently unavailable

28

Troy-Bilt EB94067

STUD-engine, reverse idler pulley mounting bracket (Briggs & Stratton part)

$

$

Currently unavailable

29

Troy-Bilt 9811

LOCKNUT-1/4"-20

$

$

Currently unavailable

30

MTD 9807

LOCKNUT-3/8"-16
(Superseded to 690-239-0020)

$

$

Not available

31

Troy-Bilt 9017

PULLEY-Reverse Idler (internal bushing type)

$

$

Currently unavailable

$

$

Not available
