5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Electric Start Assembly Parts Diagram

Pony V Rear-Tine Tiller

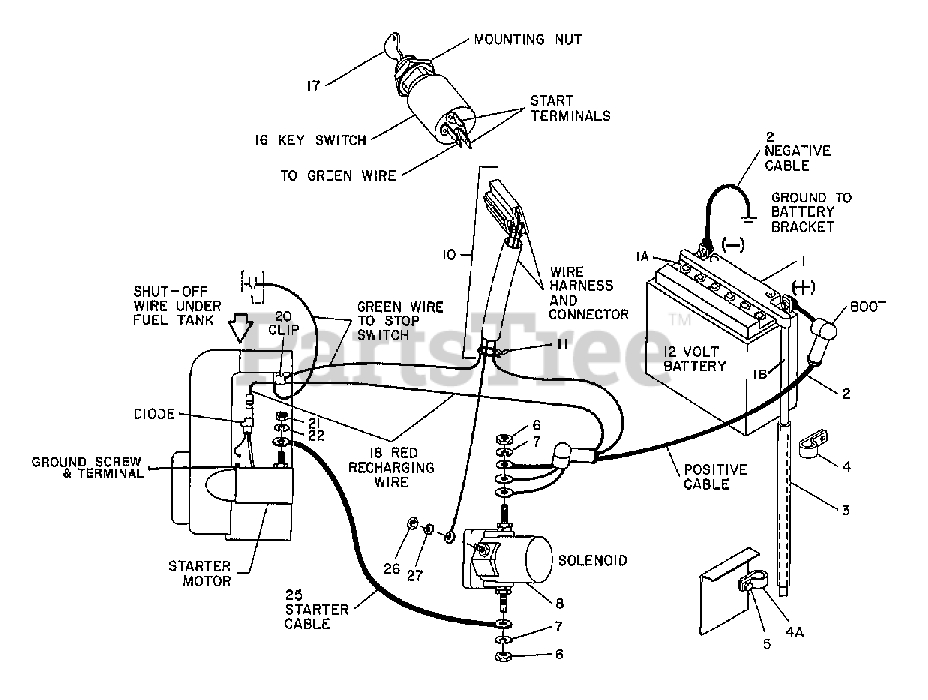

Electric Start Assembly Parts Diagram

  • Title

1

Troy-Bilt 9234

BATTERY-12 volt, 12 ampere

Note: (incl. hardware to connect battery cable terminals to battery posts)

$

$

Currently unavailable

1A

MTD 9462

CAP-battery, yellow replacement cap

$

$

Not available

MTD 9248

CAP-battery, white replacement cap

$

$

Not available

1B

Troy-Bilt 9247

VENT TUBE- battery

$

$

Currently unavailable

2

Troy-Bilt 9296

CABLE- battery

Note: (replaces #9223)

$

$

Currently unavailable

3

MTD 1475

VENT TUBE SHIELD- plastic

$

$

Not available

4

MTD 9224

CLIP- vent tube shield (small)

$

$

Not available

4A

Troy-Bilt 1479

CLIP- vent tube shield (large)

$

$

Currently unavailable

5

Troy-Bilt 9703

BOLT- hex head, 5/16"-18 x 3/4",

Note: (see Index No. 1, 2, 3-on pg. 6)

$

$

Currently unavailable

6

Troy-Bilt 9826

NUT- hex, 5/16"-24

$

$

Currently unavailable

7

Troy-Bilt 9912

LOCKWASHER-5/16"

$

$

Currently unavailable

8

Troy-Bilt 1959

SOLENOID-

Note: incl. nuts & washers for cables and wires

$

$

Currently unavailable

10

Troy-Bilt 20424

WIRE HARNESS & CONNECTING TERMINAL ASSY.

Note: (avail. as complete unit only)-incl.: wire assy. w/connector to large solenoid stud (red wire); wire assy. w/connector to small solenoid stud (red wire); wire assy. w/connector to ground shut-off (green wire); tube; wire harness; connector; wire terminal

$

$

Currently unavailable

11

Troy-Bilt 9265

TIE- plastic, wire retaining
(Superseded to GW-9265)

$

$

Not available

16

Troy-Bilt 9230

KEY SWITCH

$

$

Currently unavailable

17

Troy-Bilt 9243

KEY- ignition

Note: (pair of keys incl.)

$

$

Currently unavailable

18

Troy-Bilt 1554

WIRE ASSEMBLY-recharging

$

$

Currently unavailable

20

Troy-Bilt 9218

CLIP-holds recharging line
(Superseded to GW-9218)

$

$

Not available

21

NUT-hex, #10-24 (not avail. from Garden Way)

$

$

Not available

22

LOCKWASHER-#10 (not avail. from Garden Way)

$

$

Not available

25

Troy-Bilt 9222

CABLE-solenoid to starter

$

$

Currently unavailable

26

Troy-Bilt 9809

NUT- hex, #10-32

$

$

Currently unavailable

27

Troy-Bilt 9921

LOCKWASHER-external tooth, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days
