5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Bolo Tines, Wheels (Part 1) Parts Diagram

Pony V Rear-Tine Tiller

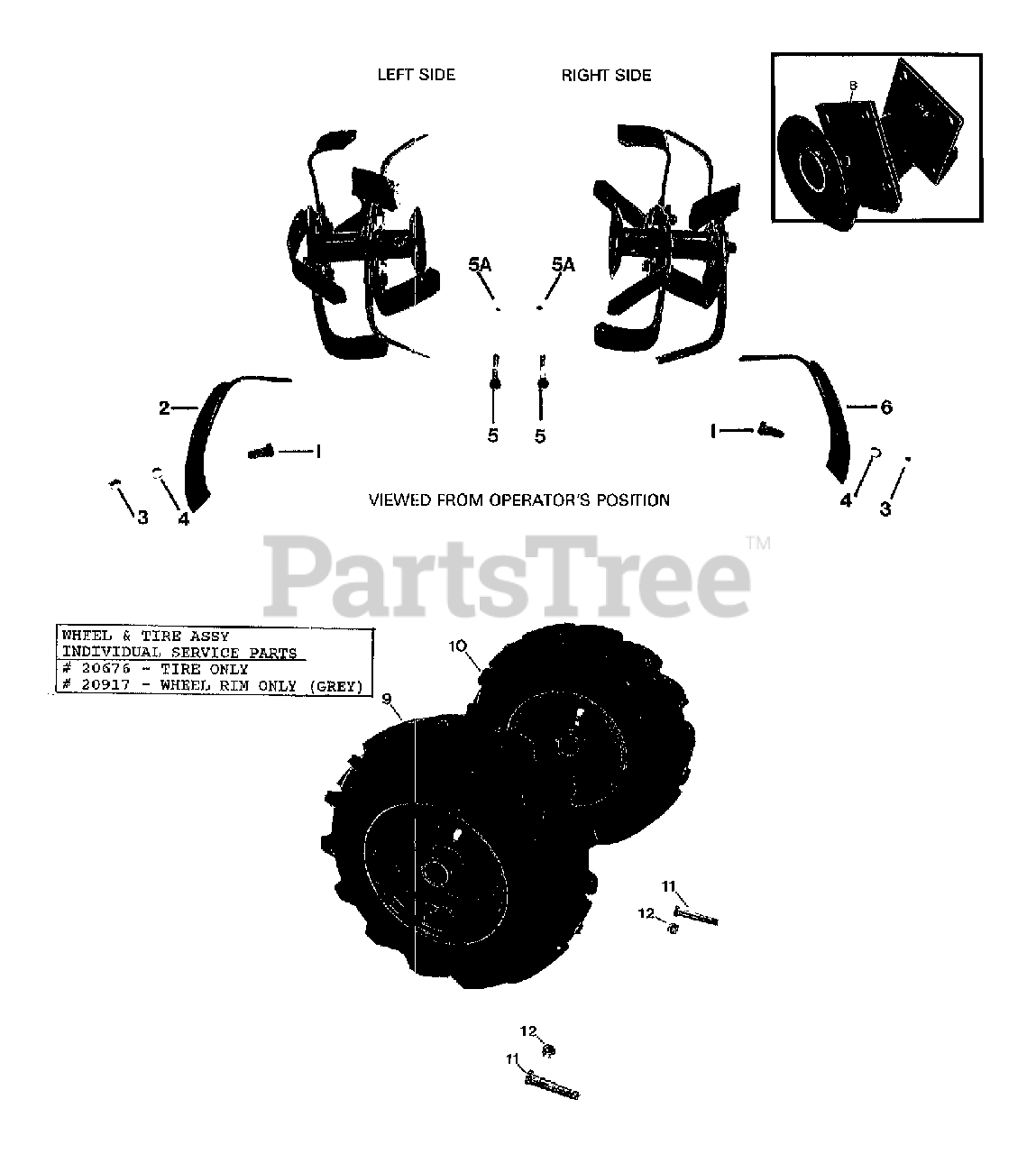

Bolo Tines, Wheels (Part 1) Parts Diagram

  • Title

1

Troy-Bilt 9711

BOLT-hex head, 3/8"-16 x 1", grade 5, tine mounting

$

$

Currently unavailable

2

Troy-Bilt 1270-2A

BOLO TINE-single,
(Superseded to 742-04118-0637)

Note: RIGHT HAND tine used on left side of tiller

$

$

Not available

3

Troy-Bilt 9802

NUT- hex, 3/8"-16

$

$

Currently unavailable

4

Troy-Bilt 9913

LOCKWASHER-3/8"

$

$

Currently unavailable

5

Troy-Bilt 9761

BOLT- hex head, 3/8"-16 x 2",grade 8 (holder to tiller shaft)

$

$

Currently unavailable

5A

MTD 9807

LOCKNUT-hex, 3/8"-16
(Superseded to 690-239-0020)

$

$

Not available

6

Troy-Bilt 1270-1A

BOLO TINE-single,
(Superseded to 742-04119-0637)

Note: LEFT HAND tine used on right side of tiller:

$

$

Not available

8

Troy-Bilt 20770

TINE HOLDER-

Note: for bolo tines, left and right sides

$

$

Currently unavailable

Troy-Bilt 1348

REPLACEMENT SET OF 16 BOLO TINES -

Note: including eight right-hand tines; eight left-hand tines; and all assembly hardware (16 each 9711 bolt, 9802 hex nut, 9913 lockwasher)

$

$

Currently unavailable

9

Troy-Bilt 20678-01

WHEEL & TIRE ASSEMBLY-left side, 4.10 x 6" tire mounted on 6" wheel, tubeless pneumatic (10-20 lbs. air required), tractor tread

$

$

Currently unavailable

10

Troy-Bilt 20678-02

WHEEL & TIRE ASSEMBLY- right side, same specs. as above

$

$

Currently unavailable

11

Troy-Bilt 9741

BOLT-5/16"-18 x 2" (Grade 5), secures wheel hub to wheel shaft
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 9808

LOCKNUT-5/16"-18

$

$

Currently unavailable
