5151 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Battery Mounting Bracket Parts Diagram

Pony V Rear-Tine Tiller

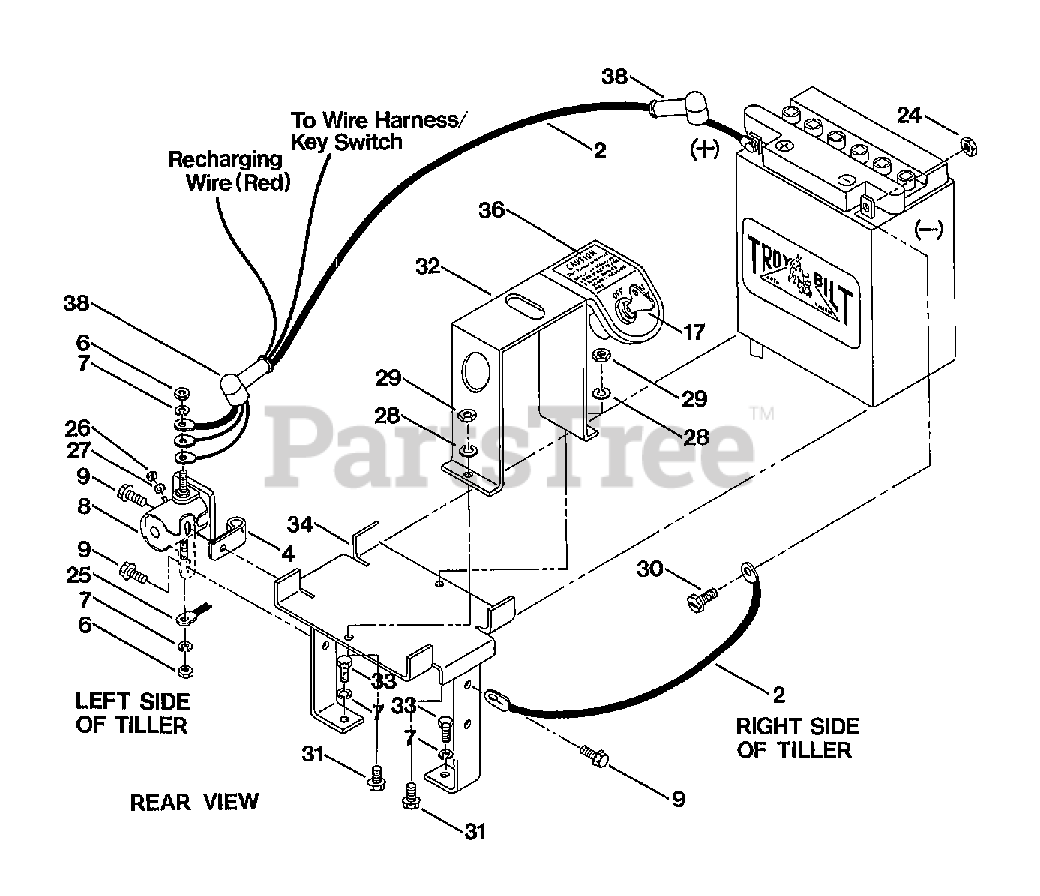

Battery Mounting Bracket Parts Diagram

  • Title

2

Troy-Bilt 9296

CABLE- battery

Note: (replaces #9223)

$

$

Currently unavailable

4

MTD 9224

CLIP- vent tube shield (small)

$

$

Not available

6

Troy-Bilt 9826

NUT- hex, 5/16"-24

$

$

Currently unavailable

7

Troy-Bilt 9912

LOCKWASHER-5/16"

$

$

Currently unavailable

8

Troy-Bilt 1959

SOLENOID-

Note: incl. nuts & washers for cables and wires

$

$

Currently unavailable

9

Troy-Bilt 9552

SCREW-flanged hex head, self-threading 1/4"-20 x 1/2"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 9243

KEY- ignition

Note: (pair of keys incl.)

$

$

Currently unavailable

24

NUT-cable to battery, metric size 6mm -1mm pitch tap, orig. equipment-not avail. from Garden Way

Note: (use #9800 below for equivalent replacement In U.S. size)

$

$

Not available

25

Troy-Bilt 9222

CABLE-solenoid to starter

$

$

Currently unavailable

26

Troy-Bilt 9809

NUT- hex, #10-32

$

$

Currently unavailable

27

Troy-Bilt 9921

LOCKWASHER-external tooth, #10
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 9910

LOCKWASHER-1/4"

$

$

Currently unavailable

29

Troy-Bilt 9800

NUT- hex head, 1/4"-20

$

$

Currently unavailable

30

BOLT-hex head/philips head combination, metric size 6mm-1mm pitch x 12mm Ig. orig. equipment-not avail. from Garden Way

Note: (use #9775 below for equivalent replacement in U.S. size)

$

$

Not available

Troy-Bilt 9775

BOLT-slotted hex head, 1/4"-20 x 1/2"

Note: (replacement hardware for cable to battery connection)

$

$

Currently unavailable

31

MTD 9566

BOLT- round head, square neck 1/4"-20 x 1 1/4"

$

$

Not available

32

Troy-Bilt 20637

BATTERY HOLD-DOWN CLAMP-with attached Key Switch Plate

Note: (incl. #20418 decal)

$

$

Currently unavailable

33

Troy-Bilt 9704

BOLT- hex head, 5/16"-18 x 1"

$

$

Currently unavailable

34

Troy-Bilt 20723

BATTERY BRACKET

$

$

Currently unavailable

36

Troy-Bilt 20418

DECAL-key switch Instructions

$

$

Currently unavailable

38

Troy-Bilt 9255

RUBBER BOOT-terminal Insulating

$

$

Currently unavailable
