5150 - Troy-Bilt Pony V Rear-Tine Tiller (SN: S0186072 - S0204132) TINES & WHEELS Parts Diagram

Pony V Rear-Tine Tiller

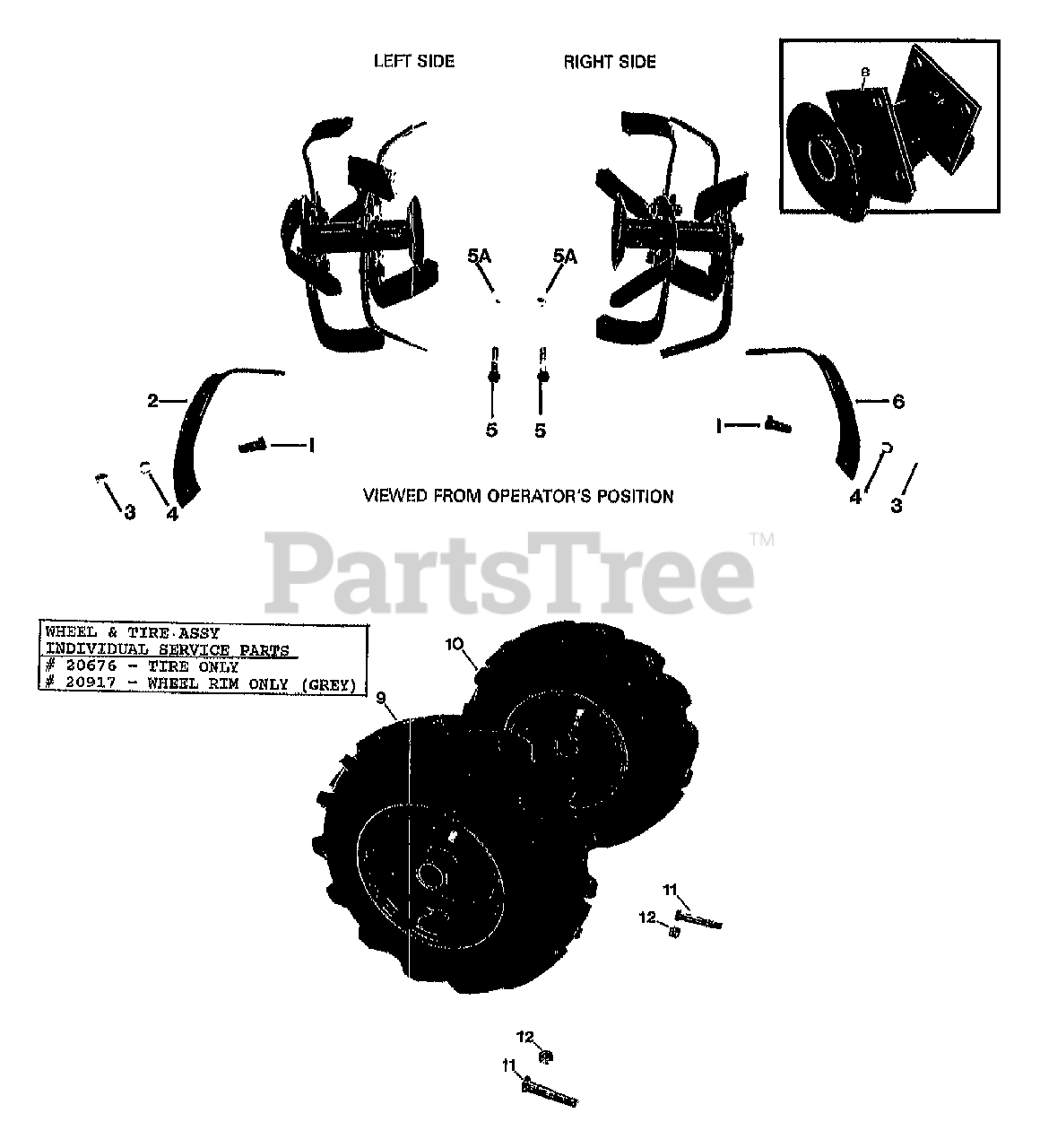

TINES & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 1270-2A

TINE-BOLO RT W/HDW
(Superseded to 742-04118-0637)

$

$

Not available

3

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

4

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

5

Troy-Bilt 9761

SCR-HH 3/8-16X2.00 G8 (HOLDER TO TILLER SHAFT)

$

$

Currently unavailable

5A

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

6

Troy-Bilt 1270-1A

TINE-BOLO LT W/HDW
(Superseded to 742-04119-0637)

$

$

Not available

8

Troy-Bilt 20770

WELD-TINE HOLDER PONY

$

$

Currently unavailable

Troy-Bilt 1348

TINES-BOLO HORSE/PONY/ECONO

$

$

Currently unavailable

9

Troy-Bilt 20678-01

ASSM-TIRE LT 4.10 X 6" (10-20 LBS. AIR REQ'D)

$

$

Currently unavailable

10

Troy-Bilt 20678-02

ASSM-TIRE RT 4.10 X 6" (10-20 LBS. AIR REQ'D)

$

$

Currently unavailable

Troy-Bilt 20676

TIRE-4.10 X 6" (TIRE ONLY)

$

$

Currently unavailable

Troy-Bilt 20917

RIM-WHEEL 6" GRAY (WHEEL RIM ONLY)

$

$

Currently unavailable

11

Troy-Bilt 9741

BOLT-HH 5/16-18 X 2 G5 ZP
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 9808

NUT-H/LK 5/16-18

$

$

Currently unavailable
