5150 - Troy-Bilt Pony V Rear-Tine Tiller (SN: S0186072 - S0204132) ELECTRIC START ASSEMBLY Parts Diagram

Pony V Rear-Tine Tiller

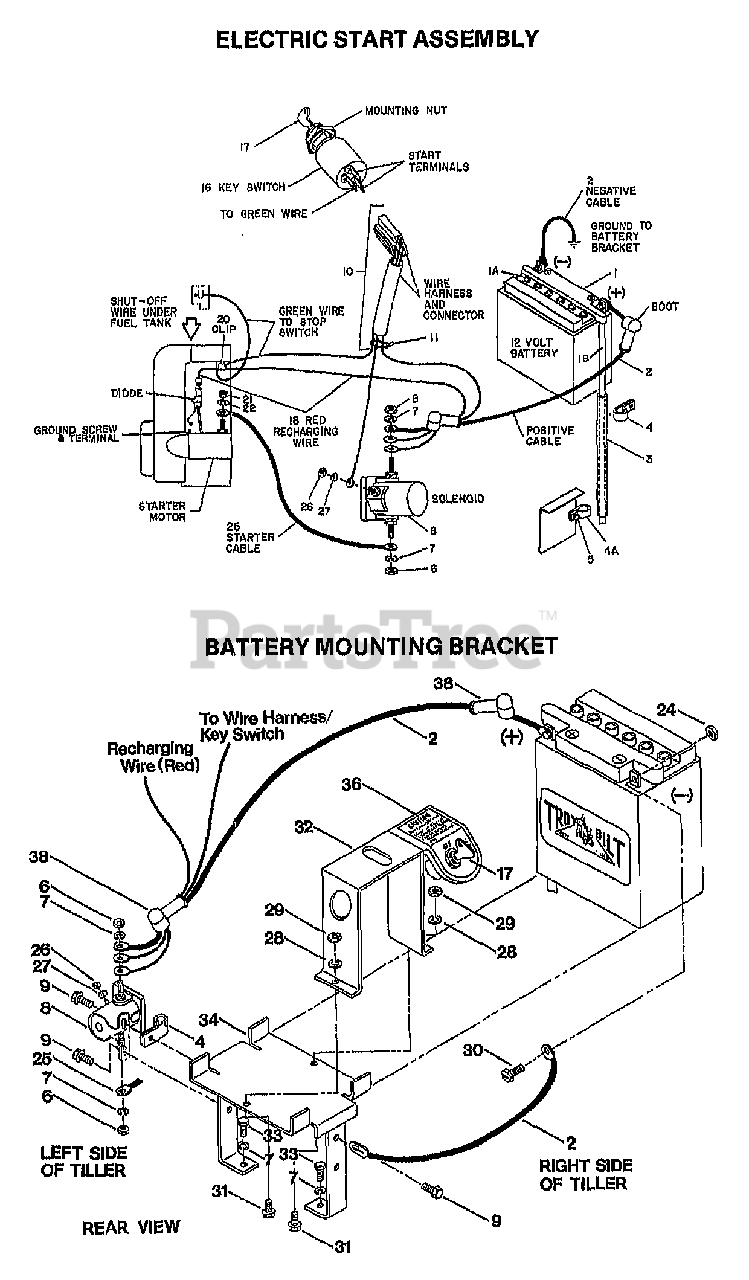

ELECTRIC START ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 9234

BATTERY (INCL. HARDWARE TO CONNECT BATTERY CABLE TERMINALS TO BATTERY POSTS)

$

$

Currently unavailable

1A

MTD 9462

CAP-YELLOW

$

$

Not available

1A

MTD 9248

CAP-BATTERY WHITE (PONY)

$

$

Not available

1B

Troy-Bilt 9247

TUBE-VENT BATTERY/HSE

$

$

Currently unavailable

2

Troy-Bilt 9296

CABLE-BATTERY (REPLACES #9223)

$

$

Currently unavailable

3

MTD 1475

TUBING-RUBBER

$

$

Not available

4

MTD 9224

CLAMP

$

$

Not available

4A

$

$

Currently unavailable

5

Troy-Bilt 9703

SCR-HHC 5/16-18X.75 GR 5 ZP

$

$

Currently unavailable

6

Troy-Bilt 9826

NUT-HEX 5/16-24

$

$

Currently unavailable

7

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

8

Troy-Bilt 1959

KIT-SOL W/HDW (INCL. NUTS & WASHERS FOR CABLES & WIRES)

$

$

Currently unavailable

9

Troy-Bilt 9552

SCR-HWH 1/4-20 X .5 STH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 20424

ASSM-HARNESS 2647/20857 (AVAIL. AS COMPLETE UNIT ONLY)

$

$

Currently unavailable

11

Troy-Bilt 9265

TIE-TWIST LOCK
(Superseded to GW-9265)

$

$

Not available

16

Troy-Bilt 9230

KEYSWITCH W/KEYS

$

$

Currently unavailable

17

Troy-Bilt 9243

KEYS(1 PAIR) FOR SWITCH

$

$

Currently unavailable

18

Troy-Bilt 1554

WIRE-RECHARGE 5&7 BRIGGS

$

$

Currently unavailable

20

Troy-Bilt 9218

CLIP-SPECIAL
(Superseded to GW-9218)

$

$

Not available

21

0

NUT, HEX #10-24 (NOT AVAIL. FORM GARDEN WAY)

$

$

Not available

22

0

LOCKWASHER #10 (NOT AVAIL.FROM GARDEN WAY)

$

$

Not available

24

0

NUT (USE #9800 OR EQUIV.)

$

$

Not available

25

Troy-Bilt 9222

CABLE-STARTER

$

$

Currently unavailable

26

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable

27

Troy-Bilt 9921

WASHER-EXTERNAL TOOTH 1
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

29

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

30

0

BOLT, HEX (USE #9775 OR EQUIV.)

$

$

Not available

Troy-Bilt 9775

BOLT-SLHH 1/4-20 X .5 (REPLACEMENT HARDWARE FOR CABLE TO BATTERY CONNECTION)

$

$

Currently unavailable

31

MTD 9566

SCR-CARR 1/4-20X1.25

$

$

Not available

32

Troy-Bilt 20637

PLTE-KEYSWITCH W/DECAL #20418 -PONY 3

$

$

Currently unavailable

33

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

34

Troy-Bilt 20723

BRKT-BATTERY PNT

$

$

Currently unavailable

36

Troy-Bilt 20418

DECAL-KEYSWITCH TILLER

$

$

Currently unavailable

38

$

$

Currently unavailable
