5150 - Troy-Bilt Pony V Rear-Tine Tiller (SN: Original) Wheel Shaft, Eccentric Shaft & Tiller Shaft Assemblies Parts Diagram

Pony V Rear-Tine Tiller

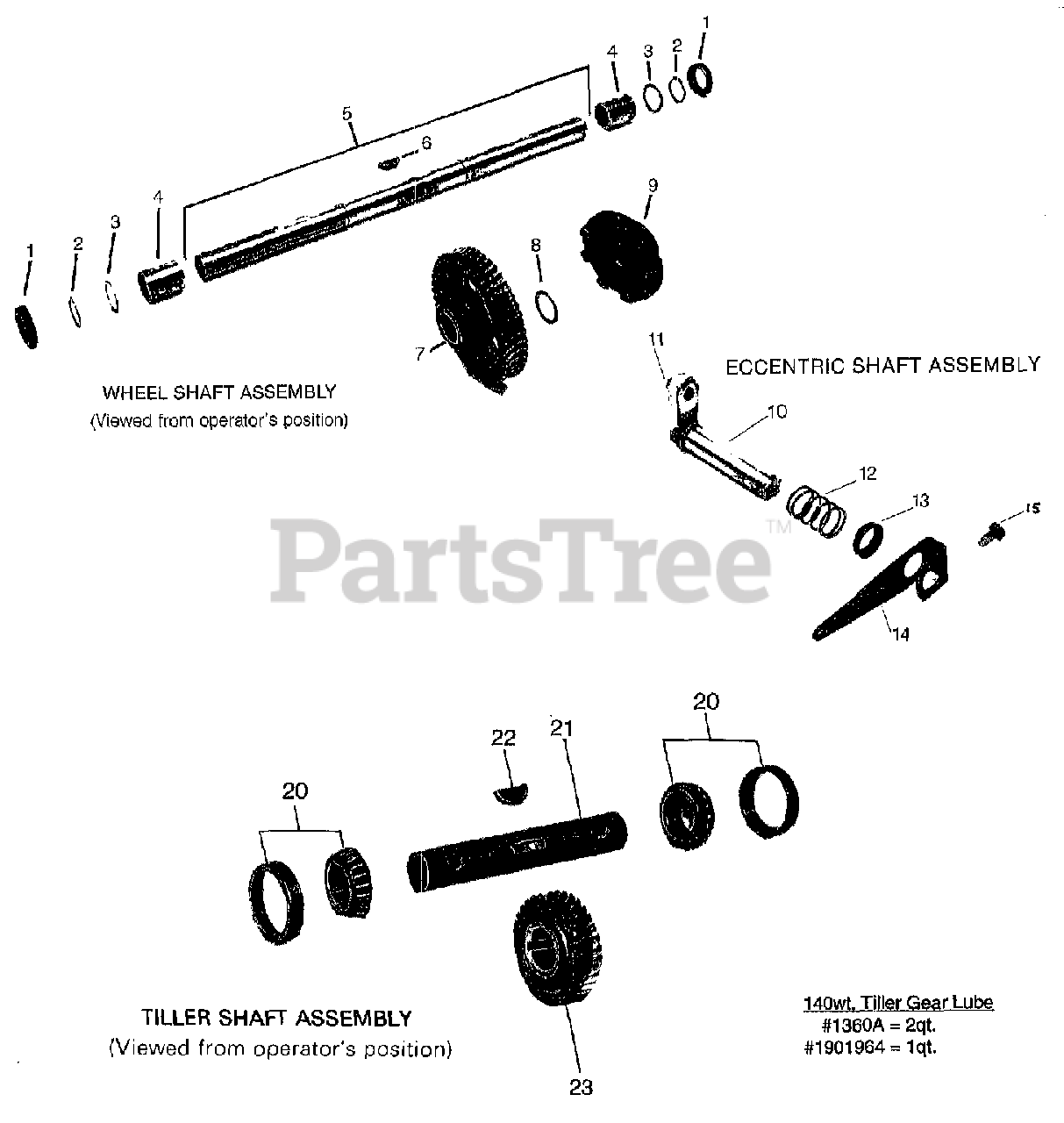

Wheel Shaft, Eccentric Shaft & Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt 9621

OIL SEAL-left and right sides
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

RING-retaining, heavy-duty, external
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 19

0

3

Troy-Bilt 1166-1

SHIM - 1 1/64" I.D., .062" thick
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-2

SHIM - as above, only .030" thick
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 1166-3

SHIM - as above, only .015" thick
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

Troy-Bilt 1166-4

SHIM - as above, only .010" thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 14

0

4

Troy-Bilt 1086

BUSHING -
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 10

0

5

Troy-Bilt 20711

WHEEL SHAFT -
(Superseded to GW-20711)

Note: Incl. #9373 key (1/4" x 1 5/16")

$

$

Not available

6

Troy-Bilt 9373

KEY - Hi-Pro (1/4" x 1 5/16"), clutch to wheel shaft
(Superseded to GW-9373)

$10.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 20535

GEAR - wheel drive (worm gear), cast iron

$

$

Currently unavailable

8

Troy-Bilt 9935

SHIM - between key and gear (1.016" I.D. x 1.468" O.D. x .062" thick)
(Superseded to GW-9935)

$3.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 20712

CLUTCH - wheel drive, cast iron
(Superseded to GW-20712)

$89.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 20699

ECCENTRIC SHAFT - wheel clutch shifting

$

$

Currently unavailable

11

Troy-Bilt 1442

PIN - eccentric shaft
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

12

Troy-Bilt 9055

SPRING -
(Superseded to GW-9055)

$7.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 9622

OIL SEAL - eccentric shaft
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

14

MTD 20757

LEVER - eccentric shaft

$

$

Not available

15

Troy-Bilt 9743

BOLT - hex head, 1/4"-20 x 1/2"

$

$

Currently unavailable

20

Troy-Bilt 10805

BEARING - tapered roller (with race), for tiller shaft

$

$

Currently unavailable

21

Troy-Bilt 20798

TILLER SHAFT -

Note: Incl. #1104 key

$

$

Currently unavailable

22

Troy-Bilt 1104

KEY - woodruff, 1/4" x 1 1/4", for tiller shaft/worm gear
(Superseded to GW-1104)

$9.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 20776

WORM GEAR - bronze, tiller drive

$

$

Currently unavailable

$

$

Not available
