515 H (1694324) - AGCO Lawn Tractor, 15hp Engine Group - 15HP Briggs & Stratton Parts Diagram

Lawn Tractor, 15hp

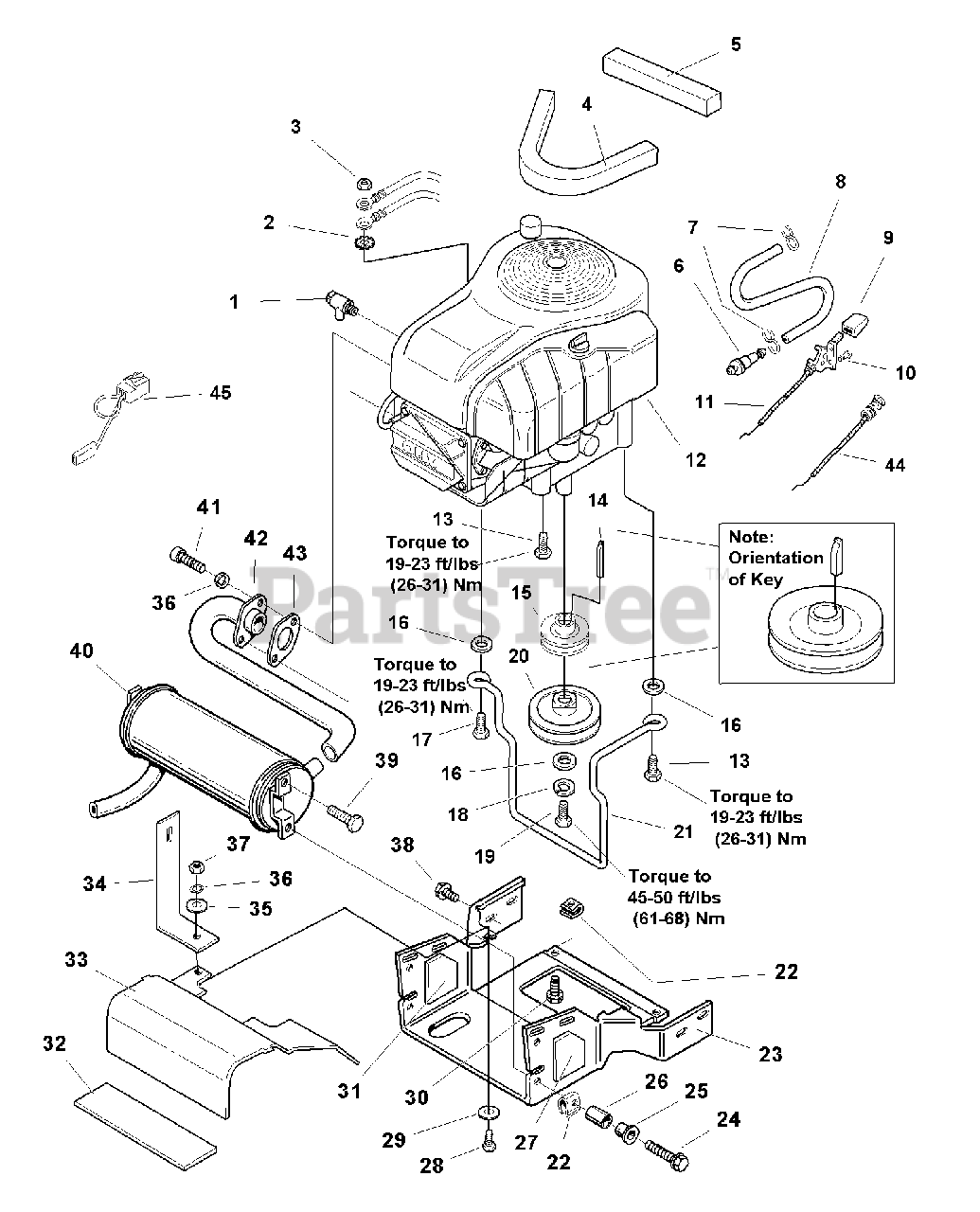

Engine Group - 15HP Briggs & Stratton Parts Diagram

  • Title

1

Simplicity 1708405SM

VALVE-SHUT OFF

$38.99

$

Usually ships in 2-12 days

0

2

Simplicity 2820427SM

LOCKWASHER, External Tooth 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 2816950SM

NUT, Hex 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Snapper 1723212SM

SEAL, Foam

$

$

Not available

5

Simplicity 1723213SM

SEAL, Foam

$41.99

$

Usually ships in 2-12 days

0

6

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

7

Simplicity 2860112SM

CLAMP, Hose Type E

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1718645SM

HOSE, 12" Long

$

$

Not available

9

Simplicity 1715897SM

KNOB, Slot

$

$

Not available

10

Simplicity 1960498SM

CAPSCREW, Hex Washer Head 1/4-14 x 5/8

$3.49

$

In Stock, Qty 13

0

11

Simplicity 1724014SM

CABLE, Throttle Control, 14~ Long

$37.99

$

Usually ships in 2-12 days

0

12

ENGINE-15/16/17HP Briggs & Stratton INTEK SINGLE

$

$

Not available

13

Simplicity 1930598SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

14

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 1723497SM

PULLEY, Hydro Only

$155.99

$

Usually ships in 2-12 days

0

16

Simplicity 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

17

Simplicity 2860361SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 2

$6.49

$

In Stock, only 1 left!

0

18

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 1920594SM

CAPSCREW, 7/16-20 x 2

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 1719456SM

PULLEY, 5.40 O.D.

$81.99

$

Usually ships in 2-12 days

0

21

Simplicity 1719460SM

GUIDE-BELT

$25.99

$

In Stock, only 1 left!

0

22

Simplicity 1935255SM

NUT, Speed 5/16-18

$3.49

$

In Stock, only 4 left!

0

23

Simplicity 1726976

DUCT, Muffler
(Superseded to 1726976ASM)

$

$

Not available

24

Simplicity 1930595SM

CAPSCREW, Hex Flange Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

25

Simplicity 1705248SM

PIVOT

$

$

Not available

26

Simplicity 1705249SM

SPACER

$

$

Not available

27

Simplicity 1723337SM

INSULATION, LH

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 1921333SM

CAPSCREW, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

30

Simplicity 1930591SM

CAPSCREW, Hex Flange Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

31

Simplicity 1723338SM

INSULATION, RH

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1723336SM

INSULATION

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 1723086A

DUCT,Muffler, Upper

$

$

Not available

34

Simplicity 1715509ASM

STRAP, Torque

$5.99

$

Usually ships in 2-12 days

0

35

Simplicity 1919326SM

WASHER

$4.49

$

In Stock, Qty 9

0

36

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

38

Simplicity 1924856SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

39

Simplicity 1929000SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

40

Simplicity 1723408SM

MUFFLER

$101.99

$

Usually ships in 2-12 days

0

41

Simplicity 1936228SM

CAPSCREW, 5/16-18 x 3/4, G8

$4.49

$

In Stock, only 1 left!

0

42

Simplicity 1720567SM

PIPE, Exhaust

$

$

Not available

43

Simplicity 1650670SM

GASKET

$8.49

$

Usually ships in 2-12 days

0

44

Simplicity 1724015SM

CABLE, Choke, 16" Long

$45.99

$

Usually ships in 2-12 days

0

45

Simplicity 1723452SM

WIRE ASSEMBLY, Briggs & Stratton Export

$8.49

$

Usually ships in 2-12 days

0
