515 H (1694323) - AGCO Lawn Tractor, 15hp Seat & Seat Deck Group Parts Diagram

Lawn Tractor, 15hp

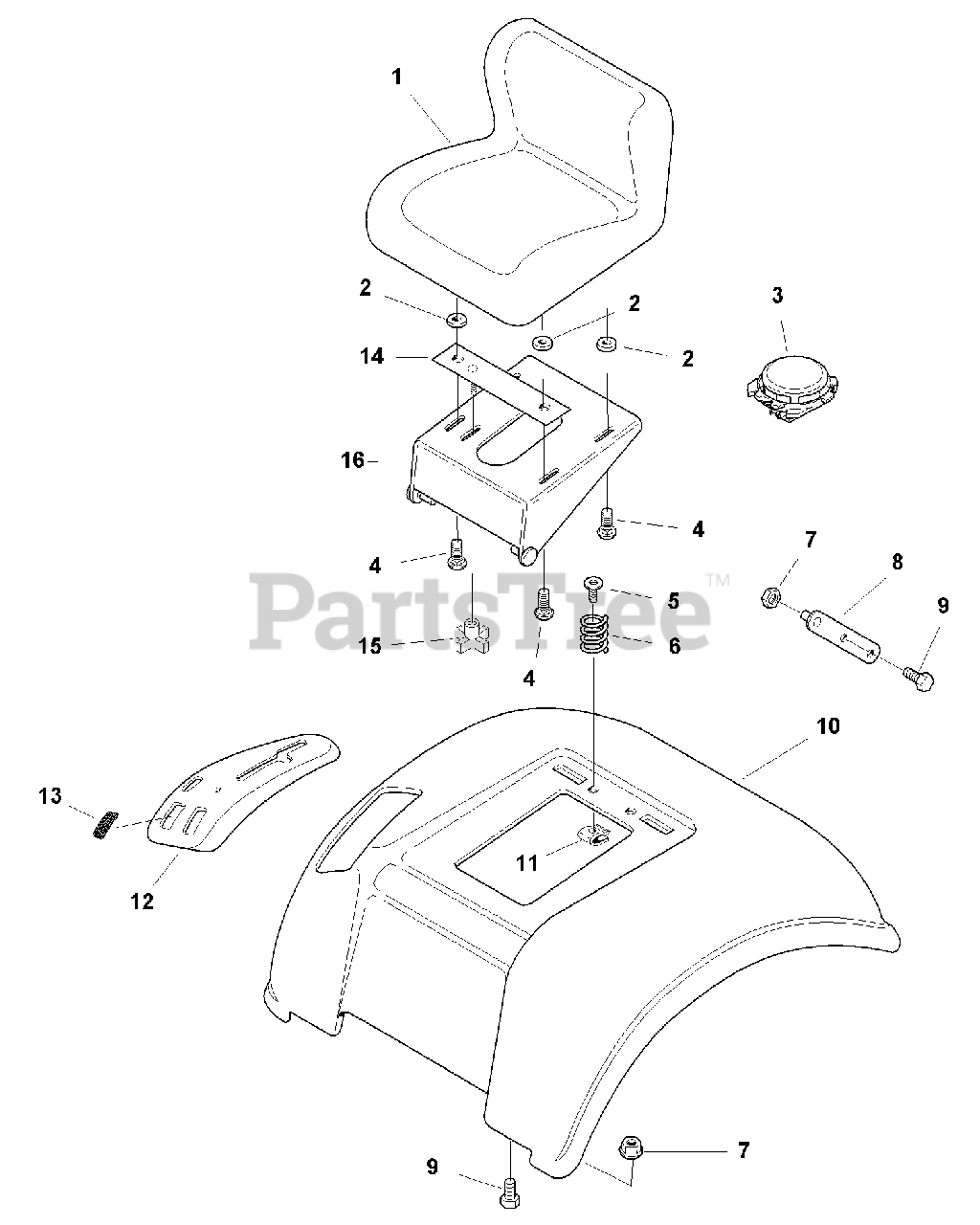

Seat & Seat Deck Group Parts Diagram

  • Title

1

Simplicity 1725486SM

SEAT

$295.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919381SM

WASHER
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 1718981SM

SWITCH, Seat

$21.99

$

In Stock, only 1 left!

0

4

Simplicity 1716654SM

CARRIAGE BOLT, 5/16-18 x 3/4

$5.49

$

In Stock, only 3 left!

0

5

Simplicity 1960486SM

SCREW, Flat Head, 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1708360SM

SPRING, Compression

$13.99

$

In Stock, only 4 left!

0

7

Simplicity 1931277SM

NUT, Hex Head Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 1713758SM

BAR

$8.49

$

Usually ships in 2-12 days

0

9

Simplicity 1930591SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

10

Simplicity 1714317C

DECK, Seat, (Orange)
(Superseded to 1714317CSM)

$253.99

$

Usually ships in 2-12 days

0

10

Simplicity 1714317D

DECK, Seat, (Red)
(Superseded to 1714317DSM)

$182.99

$

Usually ships in 2-12 days

0

11

Simplicity 1935255SM

NUT, Speed 5/16-18

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 1724504SM

POD

$

$

Not available

13

Simplicity 1709188SM

PLUG

$4.99

$

In Stock, only 1 left!

0

14

Simplicity 1722655SM

CLAMP & SCREW ASSEMBLY

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 1725533SM

SUPPORT & PIN ASSEMBLY

$71.99

$

Usually ships in 2-12 days

0
