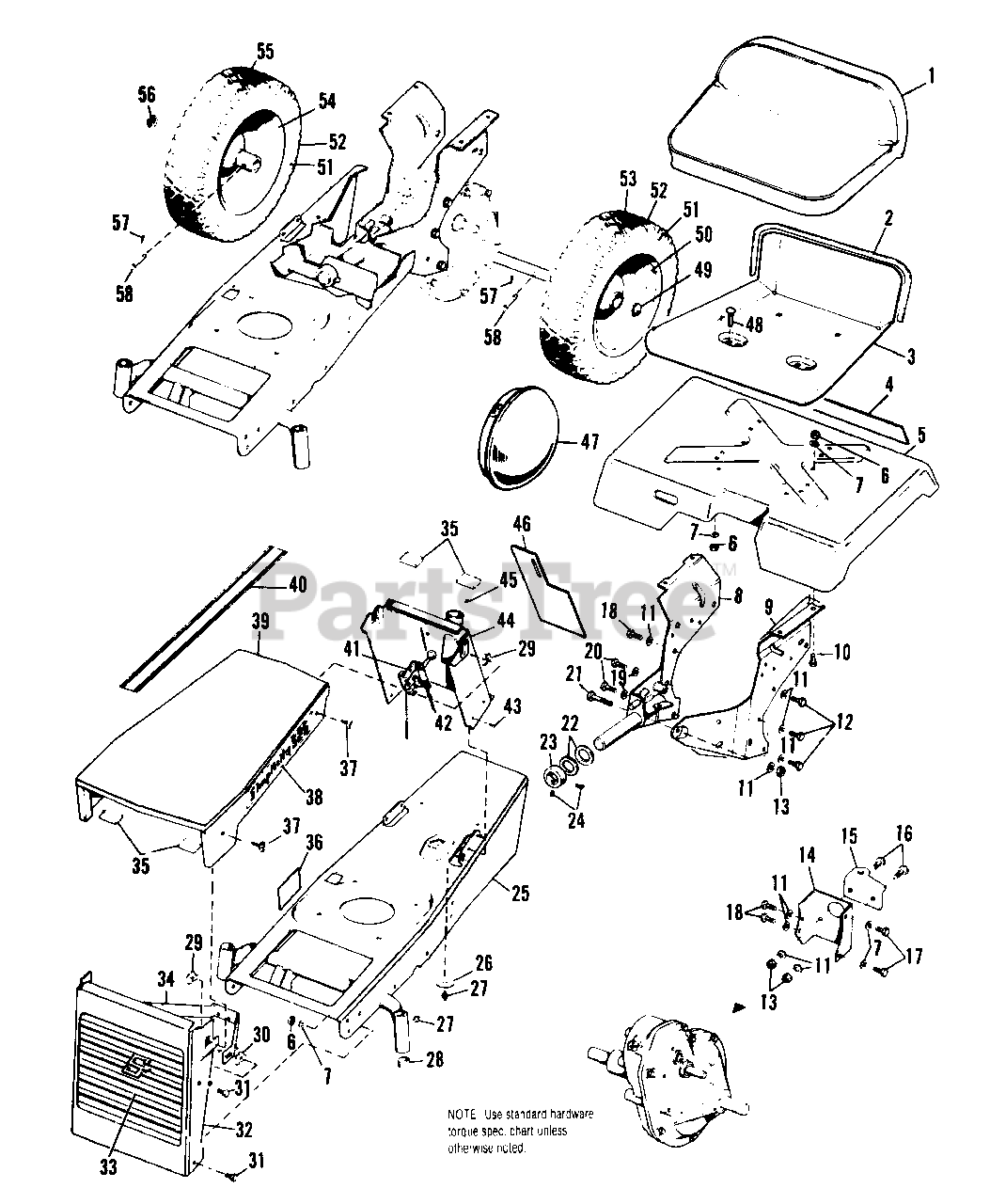

515 (990481) - Simplicity Serf 28" Lawn Tractor Frame, Hood, Dash & Seat Group Parts Diagram

Serf 28" Lawn Tractor

Frame, Hood, Dash & Seat Group Parts Diagram

  • Title

1

Simplicity 162094

PAD, Seat

$

$

Not available

2

Simplicity 159177

TAPE

$

$

Not available

3

Simplicity 165066

PANEL, Seat

$

$

Not available

4

Simplicity 163073

EMBLEM, Rear

$

$

Not available

5

Simplicity 162105

SUPPORT, Seat (990485 Only)

$

$

Not available

5

Simplicity 162042

SUPPORT, Seat

$

$

Not available

6

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1655451

PLATE ASSY., Side (990485 Only)

$

$

Not available

Simplicity 174045

PLATE ASSY., Side

$

$

Not available

9

Simplicity 165040

PLATE, Side, L.H. (990485 Only)

$

$

Not available

9

Simplicity 162016

PLATE, Side, L.H.

$

$

Not available

10

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

11

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 2821966

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$

$

Not available

13

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 156191

BRACKET, Draw Bar

$

$

Not available

15

Simplicity 156192

CLIP, Draw Bar

$

$

Not available

16

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

17

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

18

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

19

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

20

Simplicity 2819321

CAPSCREW, Hex Hd., 7/16-14 x 3/4

$

$

Not available

21

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

22

Simplicity 2105050

WASHER

$

$

Not available

23

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

24

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

25

Simplicity 163048

FRAME ASSY.

$

$

Not available

26

Simplicity 2823212

WASHER, Plain, #10

$

$

Not available

27

Simplicity 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

29

Simplicity 2830659

NUT, Retainer

$

$

Not available

30

Simplicity 2820470

NUT, Speed

$

$

Not available

31

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

32

Simplicity 163001

GRILLE

$

$

Not available

33

Simplicity 163068

DECAL, Grille

$

$

Not available

34

Simplicity 163036

SUPPORT, Grille

$

$

Not available

35

Simplicity 106582

PAD, Felt

$

$

Not available

36

Simplicity 162072

DECAL, Clutch

$

$

Not available

37

Simplicity 2828693

THUMB, Screw, 5/16-18 x 3/4

$

$

Not available

38

Simplicity 163098

DECAL, Number (990485 Only)

$

$

Not available

38

Simplicity 163070

DECAL, Number

$

$

Not available

39

Simplicity 163040

HOOD

$

$

Not available

40

Simplicity 163069

STRIPE, Hood (990485 Only)

$

$

Not available

41

Simplicity 2163097

CONTROL, Choke (990485 Only)

$

$

Not available

41

Simplicity 163071

CONTROL, Choke

$

$

Not available

42

Simplicity 2165073SM

CLIP, Speed (990485 Only)

$2.99

$

Usually ships in 2-12 days

0

43

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

44

Simplicity 163037

DASH ASSY.

$

$

Not available

45

Simplicity 2823188

SCREW, Self Tapping, 1/4-20 x 1/2

$

$

Not available

46

Simplicity 163104

DECAL, Throttle (990485 Only)

$

$

Not available

46

Simplicity 163076

DECAL, Throttle

$

$

Not available

47

Simplicity 2156211SM

CAP, Hub, Rear

$

$

Not available

48

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

49

Simplicity 158433

BUTTON, Plug

$

$

Not available

50

Simplicity 1608382

WHEEL ASSY., L.H.

$

$

Not available

51

Simplicity 2153038SM

TUBE

$35.99

$

Usually ships in 2-12 days

0

52

Simplicity 2153037

TIRE

$

$

Not available

53

Simplicity 1608381

WHEEL & TIRE ASSY., L.H.

$

$

Not available

54

Simplicity 1608384

WHEEL ASSY., R.H.

$

$

Not available

55

Simplicity 1608383

WHEEL & TIRE ASSY., R.H.

$

$

Not available

56

Simplicity 158436

BUTTON, Plug

$

$

Not available

57

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

58

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0
