515 (590-515-100) - Cub Cadet Rear Bagger att Rear Bagger Parts Diagram

Rear Bagger

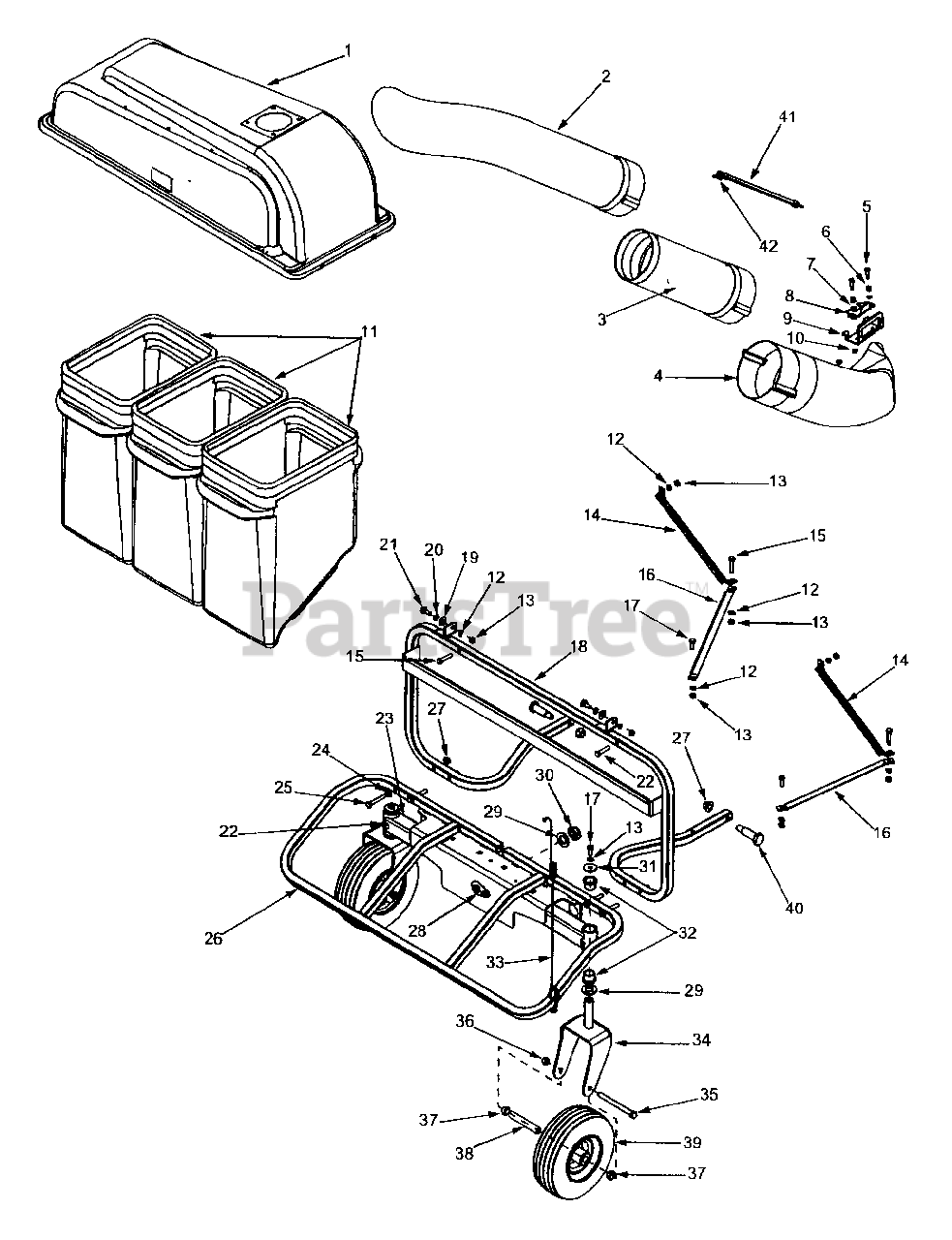

Rear Bagger Parts Diagram

  • Title

1

Cub Cadet 664-0096

Cover Assembly

$

$

Not available

2

Cub Cadet 731-0899A

Upper Tube Chute
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

3

Cub Cadet 731-3334

Chute Extension

$

$

Not available

4

Cub Cadet 731-3319

Discharge Chute
(Superseded to 731-3319B)

$

$

Not available

5

Cub Cadet 738-3174

Shoulder Screw

$16.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 732-0334

Compression Spring .50 OD x.5 Lg.

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

8

Cub Cadet 703-3604

Bagger Latch

$29.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3538

Chute Bracket

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-3322

Grass Bag Container

$

$

Not available

12

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet 703-3558

Cover Support Brace
(Superseded to 703-3558A-0637)

Variations

Cub Cadet 703-3558-0637

USE 703-3558A-0637 BRACE-COVE - POWDER BLACK (0637)

$96.99

$

Usually ships in 3-6 days

0

$96.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 703-3559

Bagger Hitch Brace
(Superseded to 703-3559A-0637)

Variations

Cub Cadet 703-3559-0637

USE 703-3559A-0637 BRACE-BAGG - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 603-0761

Cover Support Frame Assembly

Variations

Cub Cadet 603-0761-0637

COVER SUPPORT FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

19

Cub Cadet 736-0255

Bell Washer .510 ID x 1.14 OD

$4.99

$

In Stock, only 3 left!

0

20

Cub Cadet 736-0108

Flat Washer .510 ID x .750 OD

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-0380

Shoulder Screw

$7.99

$

In Stock, only 1 left!

0

22

Cub Cadet 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

23

Cub Cadet 603-0762

Axle Assembly
(Superseded to 603-0762-0637)

$

$

Not available

24

Cub Cadet 736-3050

Flat Washer .406 ID x .810 OD

$4.49

$

In Stock, Qty 16

0

25

Cub Cadet 710-0859

Hex Cap Screw 3/8-16 x 2.5

$6.99

$

In Stock, Qty 17

0

26

Cub Cadet 603-0760

Bag Support Assembly

Variations

Cub Cadet 603-0760-0637

BAG SUPPORT ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 603-0389A

Pivot Pin Assembly

$

$

Not available

29

Cub Cadet 736-0274

Washer

$8.99

$

In Stock, Qty 14

0

30

Cub Cadet 712-3075

Lock Nut
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

31

Cub Cadet 736-0227

Flat Washer.390 ID x 1.5 OD

$6.49

$

In Stock, Qty 9

0

32

Cub Cadet 731-0374

Flange Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

33

Cub Cadet 746-3088

Cable Latch

$

$

Not available

34

Cub Cadet 603-0363

Castor Wheel Bracket Assembly
(Superseded to 603-0363A)

Variations

Cub Cadet 603-0363-0498

Caster Wheel Yoke Kit - OLD CUB YELLOW (0498)

$114.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0363-0637

Caster Wheel Yoke Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0363-0648

Caster Wheel Yoke Kit - TECH GRAY (0648)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0506

Hex Cap Screw 1/2-20 x 5.50

$10.99

$

In Stock, only 2 left!

0

36

Cub Cadet 712-0239

Hex Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

37

Cub Cadet 750-0456

Spacer .790 ID x .347 Lg.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 750-3197

Wheel Spacer
(Superseded to 750-3197A)

$21.99

$

In Stock, Qty 13

0

39

Cub Cadet 634-3163

Wheel Assembly

$226.99

$

In Stock, only 1 left!

0

39

Cub Cadet 02002093

Tire, Front

Note: Not Shown

$66.99

$

In Stock, only 2 left!

0

39

Cub Cadet 02002095

Bushing, Front
(Superseded to 741-3069)

Note: Not Shown

$17.99

$

In Stock, only 1 left!

0

39

Cub Cadet 741-3069

Bearing, Flange

Note: Not Shown

$17.99

$

In Stock, only 1 left!

0

39

Cub Cadet 741-3070

Bearing, Roller
(Superseded to 941-3070)

Note: Not Shown

$54.99

$

In Stock, only 3 left!

0

40

Cub Cadet 738-1014

Shoulder Bolt

$4.49

$

In Stock, only 1 left!

0

41

Cub Cadet 723-0476

Retainer Strap Assembly

$33.99

$

In Stock, only 1 left!

0

42

Cub Cadet 16606

Retainer Clip
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

Cub Cadet 759-3949

High Lift Blade
(Superseded to 742P3038)

Note: Not shown, For discharge spindle (742-3038 marked on blade)

$30.99

$

Usually ships in 3-6 days

0
