51487 A - Toro 12" String Trimmer, Cordless (SN: 316000001 - 316999999) (2016) 12IN CORDLESS SINGLE-LINE TRIMMER ASSEMBLY Parts Diagram

12" String Trimmer, Cordless

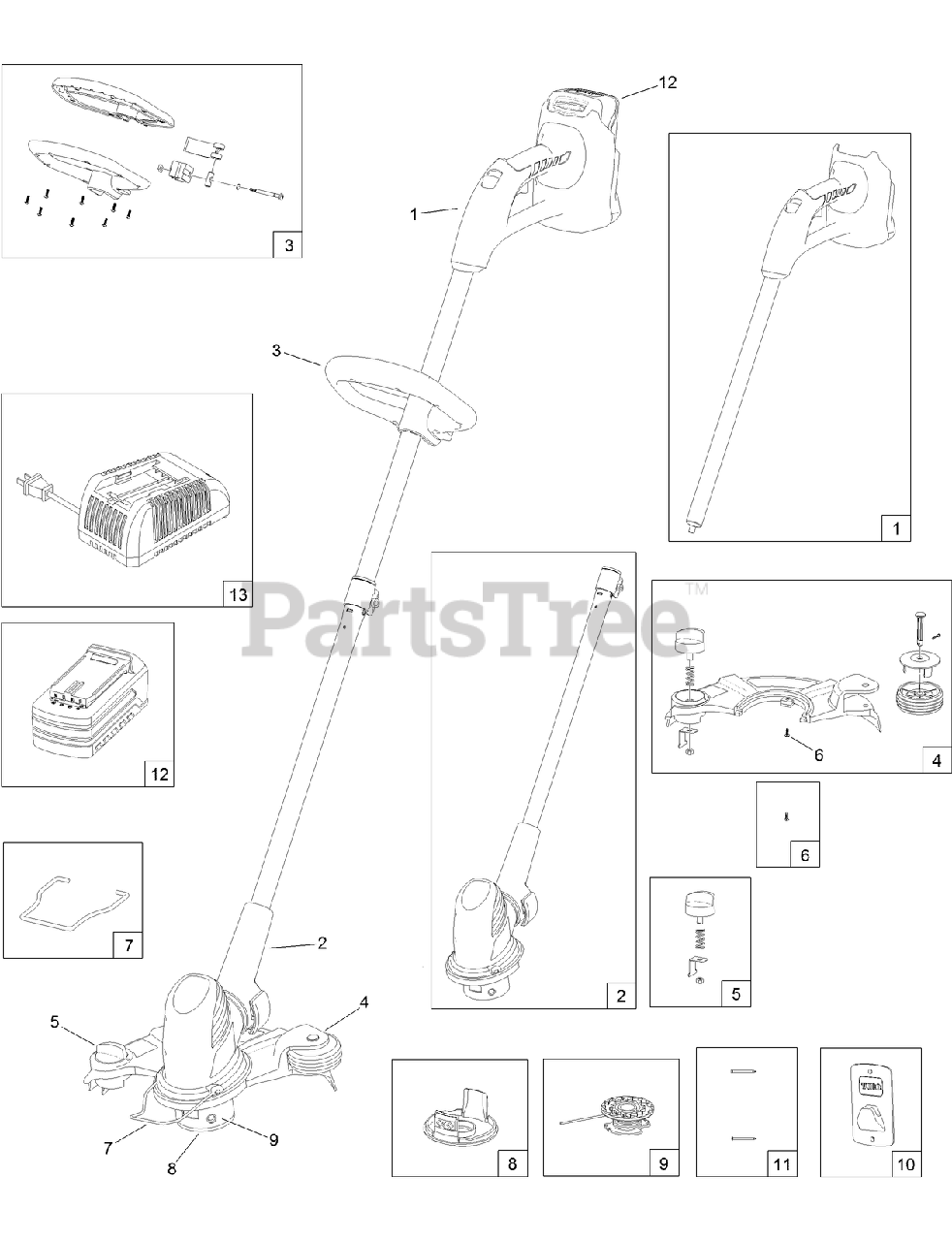

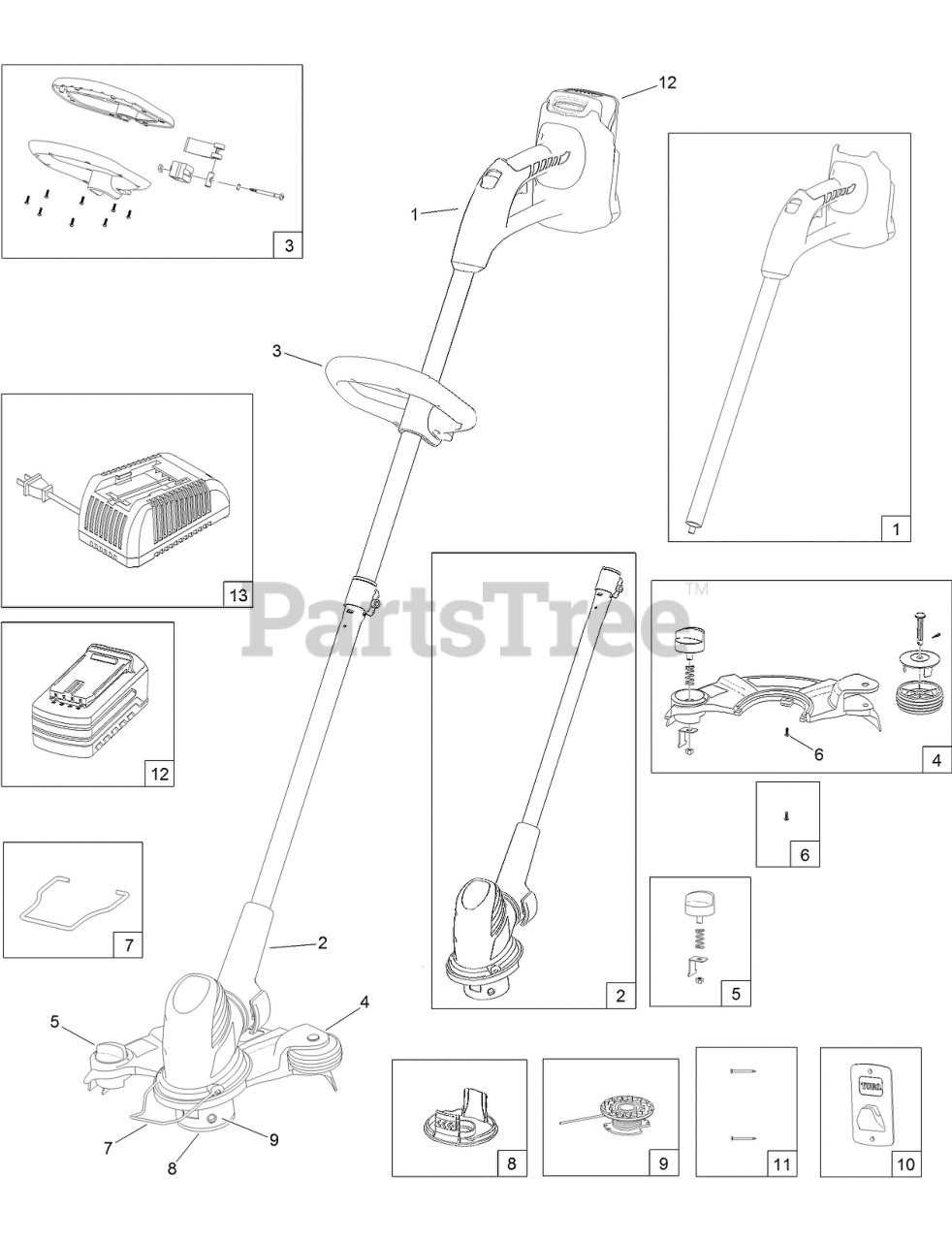

12IN CORDLESS SINGLE-LINE TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8290

HANDLE-UPPER

$

$

Not available

2

Toro 131-0348

LOWER MOTOR HOUSING ASM

$

$

Currently unavailable

3

Toro 125-8261

ASSIST HANDLE ASM

$42.99

$

In Stock, only 2 left!

0

4

Toro 131-0349

GRASS SHIELD ASM

$20.99

$

Usually ships in 3-6 days

0

5

Toro 125-8292

KNOB-SAVER, POWER

$

$

Not available

6

Toro 125-8293

SCREW

$0.99

$

In Stock, Qty 7

0

7

Toro 125-8251

CLIP-GUIDE, EDGER

$1.99

$

In Stock, only 1 left!

0

8

Toro 125-8252

CAP-RETAINER, SPOOL

$3.49

$

In Stock, Qty 20+

0

9

Toro 88532A

SPOOL-TRIMMER, 12 INCH

$

$

Currently unavailable

10

Toro 125-8260

BRACKET-MOUNT, WALL

$4.49

$

Usually ships in 3-6 days

0

11

Toro 125-8259

SCREW

$0.99

$

Usually ships in 3-6 days

0

12

Toro 88506A

BATTERY-LI-ION, 24V, 2.0AH

$

$

Currently unavailable

13

Toro 88503A

CHARGER-24V, LI-ION BATTERY

$

$

Currently unavailable
