51459 - Lawn-Boy 35cm String Trimmer, Electric, Canada (SN: 079000001 - 079999999) (1997) MOTOR AND HOUSING ASSEMBLY Parts Diagram

35cm String Trimmer, Electric, Canada

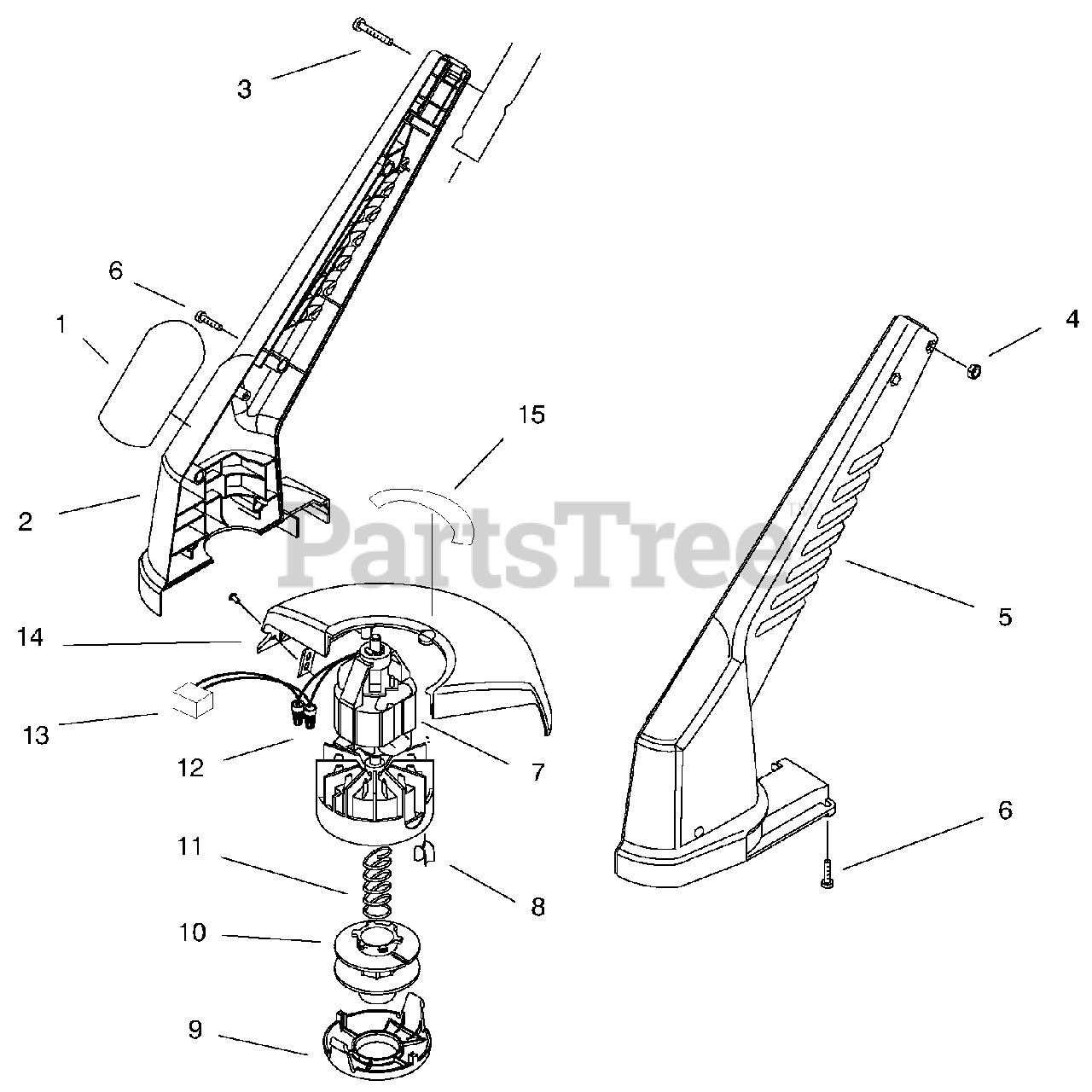

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 95-5093

Decal-35CM Trimmer

$

$

Not available

2

Lawn-Boy 95-5060

Housing R.H.

$

$

Not available

3

Lawn-Boy 3250-52

Screw-Pan Hd.

$1.49

$

Usually ships in 3-6 days

0

4

$1.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 95-5059

Housing L.H.

$

$

Not available

6

Lawn-Boy 94-4496

Screw-Pan Hd.

$1.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 93-8713

Motor Assembly-Trimmer (Incl. Ref. #8)

$

$

Not available

8

$5.49

$

In Stock, Qty 8

0

$

$

Not available

10

$19.99

$

In Stock, Qty 11

0

11

$1.49

$

In Stock, Qty 11

0

12

Lawn-Boy 73-6570

Connector-Wire Nut

$1.49

$

In Stock, only 2 left!

0

13

$

$

Not available

14

Lawn-Boy 73-9092

Shield Assembly

$

$

Not available

15

Lawn-Boy 95-5099

Decal-Shield

$

$

Not available

Lawn-Boy 95-4446

Spool & Line Assembly (Incl. Ref. #10)(Parts)

Note: Not Illustrated

$

$

Not available

Lawn-Boy 88197

Spool & Line Assembly (Whole Goods)(Ryobi Model #165915)

Note: Not Illustrated

$

$

Currently unavailable
