51450 - Toro 15" String Trimmer, Electric (SN: 079000001 - 079999999) (1997) SHAFT AND HEAD ASSEMBLY Parts Diagram

15" String Trimmer, Electric

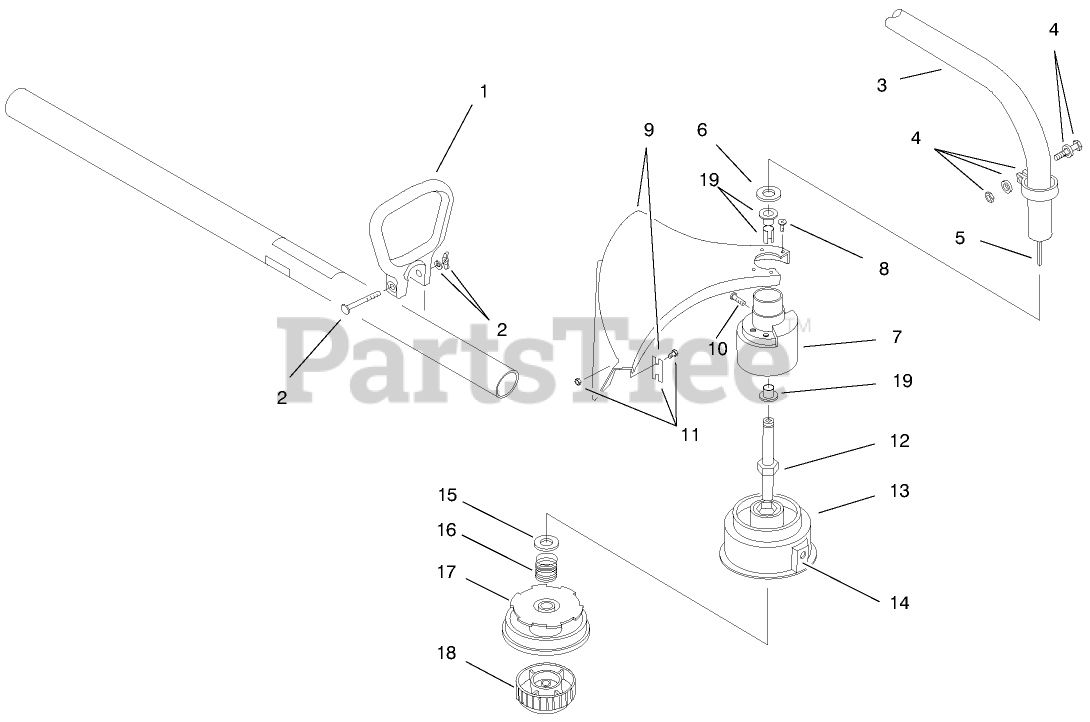

SHAFT AND HEAD ASSEMBLY Parts Diagram

  • Title

1

Toro 145819

D-HANDLE

$

$

Not available

2

Toro 181587

HARDWARE - D-HANDLE

$22.99

$

Usually ships in 3-6 days

0

3

Toro 180560

ASM - DRIVE SHAFT HSG

$

$

Not available

4

Toro 153597

Lower Clamp Asm. (Incl. Ref.#10)

$

$

Not available

5

Toro 180561

SHAFT - FLEXIBLE DRIVE

$

$

Not available

6

Toro 181560

NUT

$

$

Not available

7

Toro 153312

Bushing Housing Asm. (Incl. Ref.# 19)

$

$

Not available

8

Toro 180531

GUARD MTG SCREW ASM

$2.99

$

Usually ships in 3-6 days

0

9

Toro 683274

GUARD/BLADE ASM

$

$

Not available

10

Toro 145569

ANTI-ROTATION SCREW

$

$

Not available

11

Toro 682061

BLADE ASM

$22.99

$

In Stock, only 1 left!

0

12

Toro 153313

Shaft-Spool
(Superseded to 181784)

$

$

Not available

13

Toro 153619

OUTER SPOOL EYELET ASM

$49.99

$

Usually ships in 3-6 days

0

14

Toro 145566

EYELET

$16.99

$

Usually ships in 3-6 days

0

15

Tecumseh 610660

RETAINER WASHER(SET OF 10)

$

$

Currently unavailable

16

Tecumseh 610317

SPRING

$

$

Currently unavailable

17

Tecumseh 610318

REEL - INNER

$

$

Currently unavailable

18

Toro 153066

SMALL BUMP KNOB ASM

$

$

Not available

19

Bushing Housing Asm. (Not Serviced Separately)

$

$

Not available

Tecumseh 610375

LOOP LINE

Note: Not illustrated

$

$

Currently unavailable

Toro 88042

Reel/Line ASM

Note: Not illustrated

$

$

Not available
