51450 - Lawn-Boy 15" String Trimmer, Electric (SN: 890000001 - 899999999) (1998) MOTOR AND HOUSING ASSEMBLY Parts Diagram

15" String Trimmer, Electric

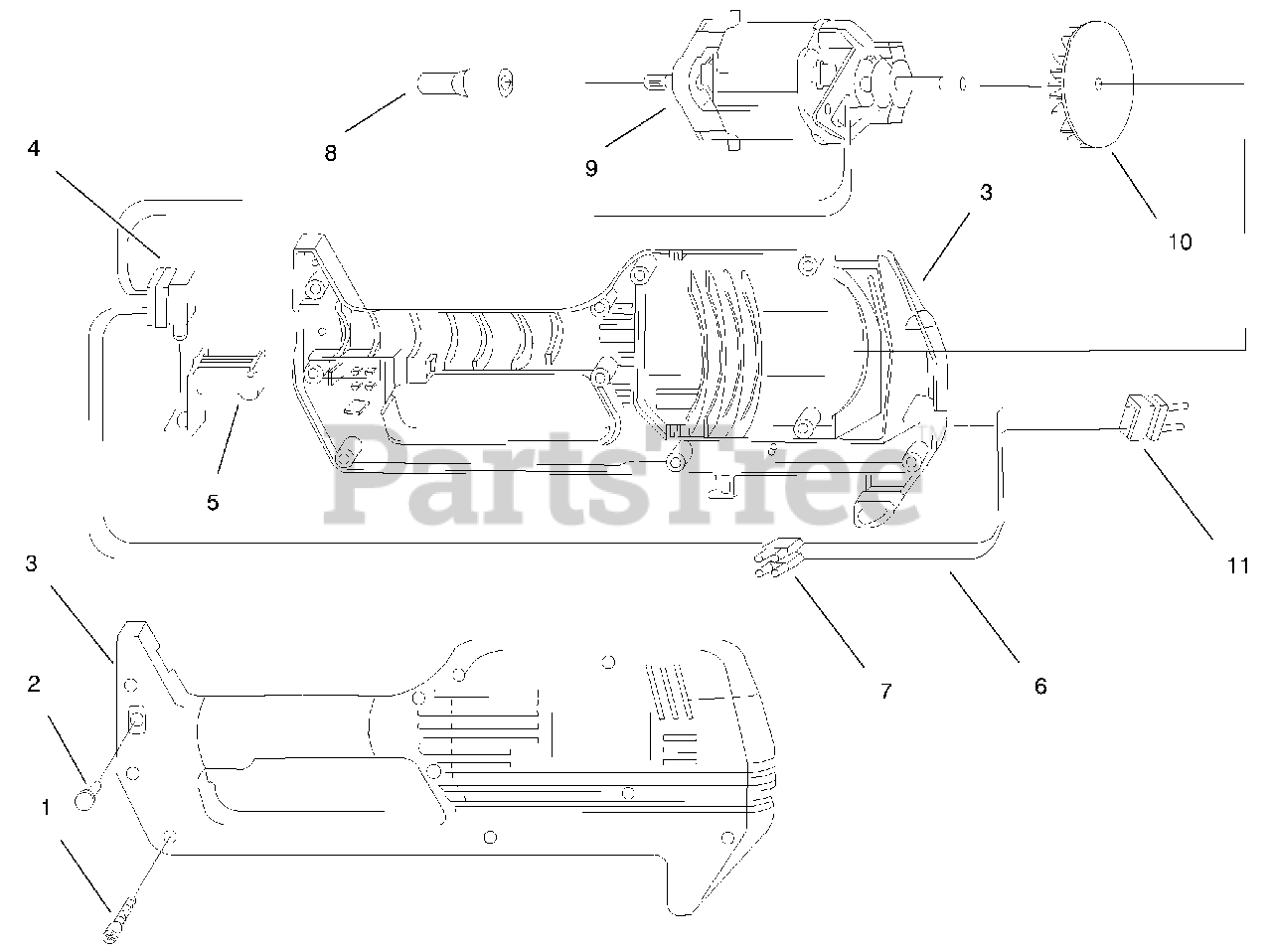

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

Lawn-Boy 145569

Anti-Rotation Screw

$

$

Not available

3

Lawn-Boy 95-5238

Motor Housing

$144.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 180150

Switch Assembly

$

$

Not available

5

Lawn-Boy 180157

Trigger

$

$

Not available

6

Lawn-Boy 160098

Wire Lead

$

$

Not available

7

Lawn-Boy 180305

Terminal Block

$

$

Not available

8

$

$

Not available

9

Lawn-Boy 180153

Motor (Incl. Ref. #8-10)

$191.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 180155

Cooling Fan

$

$

Not available

11

Lawn-Boy 181645

Harness

$

$

Not available
