51449 - Lawn-Boy 35cm String Trimmer, Electric, Canada (SN: 059000001 - 059999999) (1995) HANDLE ASSEMBLY Parts Diagram

35cm String Trimmer, Electric, Canada

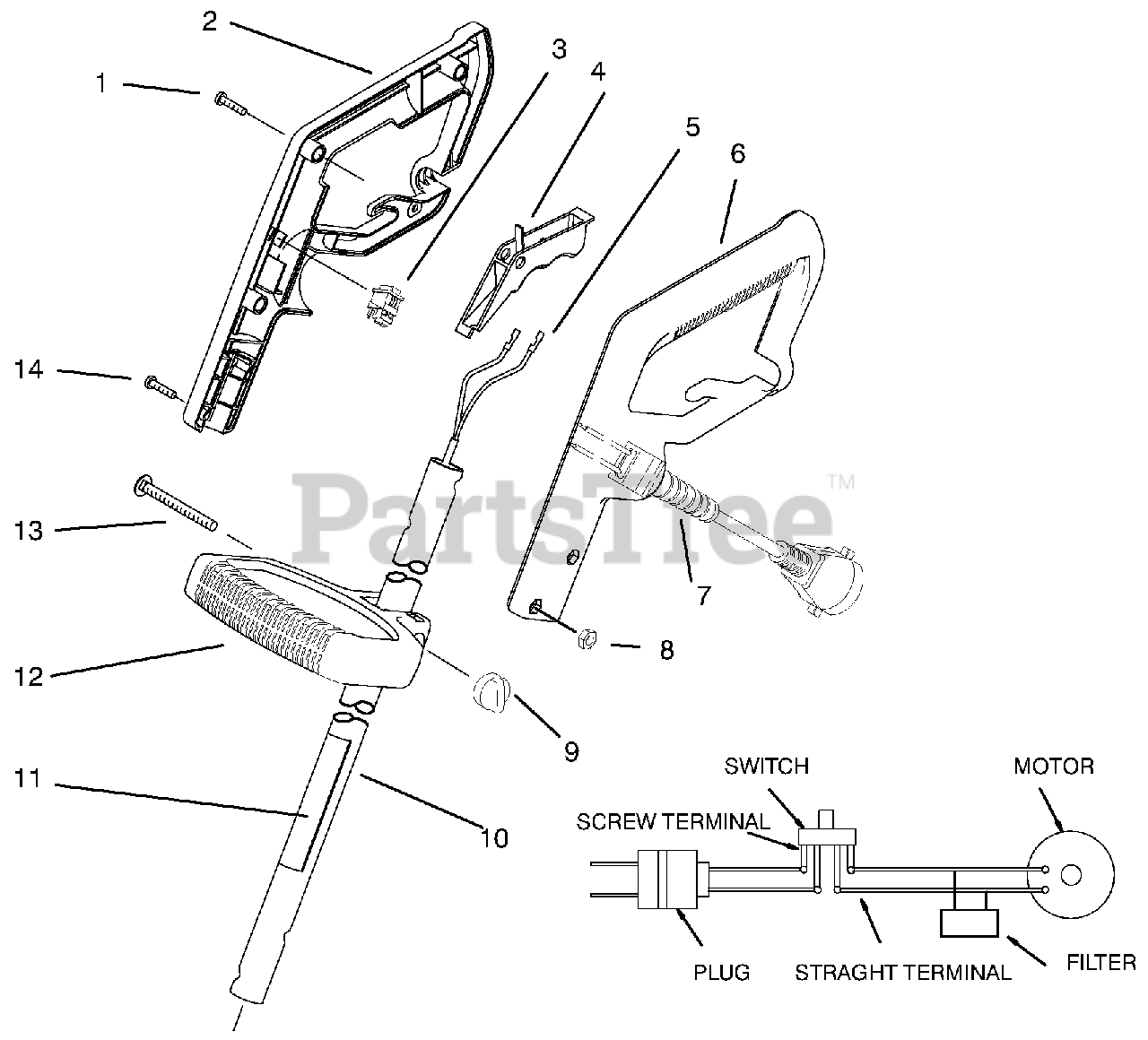

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 32104-121

Screw-Pan HdTapping
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 73-8151

Grip-Hand R.H.

$

$

Not available

3

$

$

Not available

4

$

$

Not available

5

Lawn-Boy 93-4459

Harness-Wire

$20.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 73-8161

Grip-Hand L.H.

$

$

Not available

7

Lawn-Boy 93-0556

Cord-Power

$

$

Not available

8

Lawn-Boy 3217-44

Nut-Lock

$1.99

$

Usually ships in 3-6 days

0

$

$

Not available

10

Lawn-Boy 93-4485

Tube Assembly (Incl. Ref. #11)

$

$

Not available

11

Decal-Safety

$

$

Not available

12

Lawn-Boy 73-8310

Handle-Mid

$7.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 3229-32

Screw-Carriage

$

$

Not available

14

Lawn-Boy 3250-52

Screw-Pan Hd.

$1.49

$

Usually ships in 3-6 days

0
