51445 - Lawn-Boy 14" String Trimmer, Electric (SN: 059000001 - 059999999) (1995) MOTOR & HOUSING ASSEMBLY Parts Diagram

14" String Trimmer, Electric

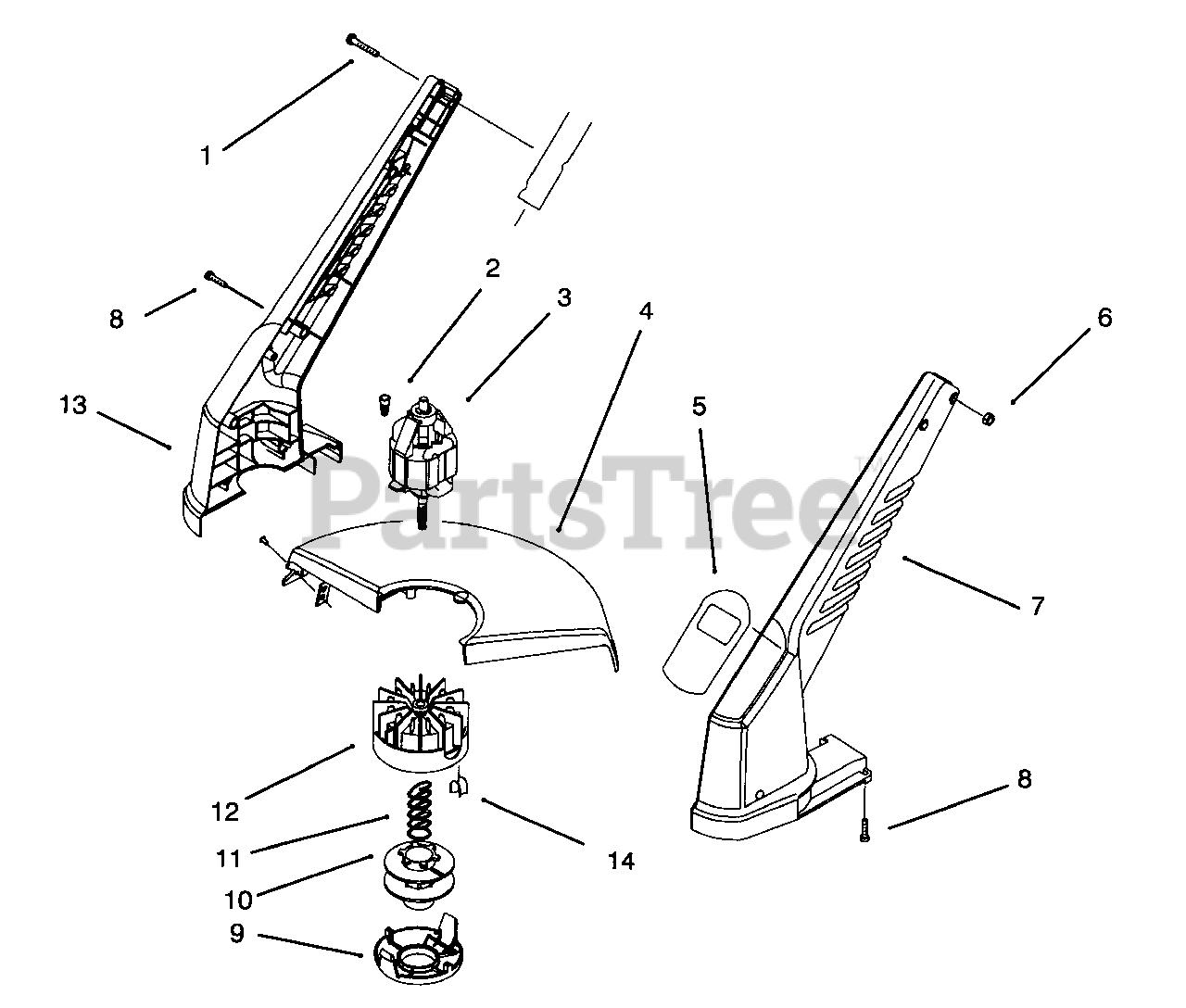

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3250-52

Screw-Pan Hd.

$1.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 73-6570

Connector-Wire Nut

$1.49

$

In Stock, only 2 left!

0

3

Lawn-Boy 73-9052

Motor Assembly (Incl. Ref.#12 & 14)

$213.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 73-9092

Shield-14"

$

$

Not available

5

Lawn-Boy 73-8472

Decal-14" Trimmer
(Superseded to 73-8473)

$

$

Not available

6

Lawn-Boy 3217-44

Nut-Hex

$1.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 73-8140

Housing L.H.

$

$

Not available

8

Lawn-Boy 32104-121

Screw-Pan Hd. Tapping
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 73-8200

Cap

$

$

Not available

10

Lawn-Boy 73-8190

Spool

$19.99

$

In Stock, Qty 11

0

11

Lawn-Boy 73-8220

Spring

$1.49

$

In Stock, Qty 11

0

12

Drum

$

$

Not available

13

Lawn-Boy 73-8130

Housing R.H.

$

$

Not available

14

Lawn-Boy 73-8210

Eyelet

$5.49

$

In Stock, Qty 8

0

Lawn-Boy 73-8510

Spool & Line Assembly (Incl. Ref. #10)(Parts)
(Superseded to 88175)

Note: Not Illustrated

$23.99

$

In Stock, only 2 left!

0

Lawn-Boy 88175

Spool & Line Assembly (Whole Goods)

Note: Not Illustrated

$23.99

$

In Stock, only 2 left!

0
