51444 - Toro 14" String Trimmer, Electric (SN: 049000001 - 049999999) (1994) MOTOR & HOUSING ASSEMBLY Parts Diagram

14" String Trimmer, Electric

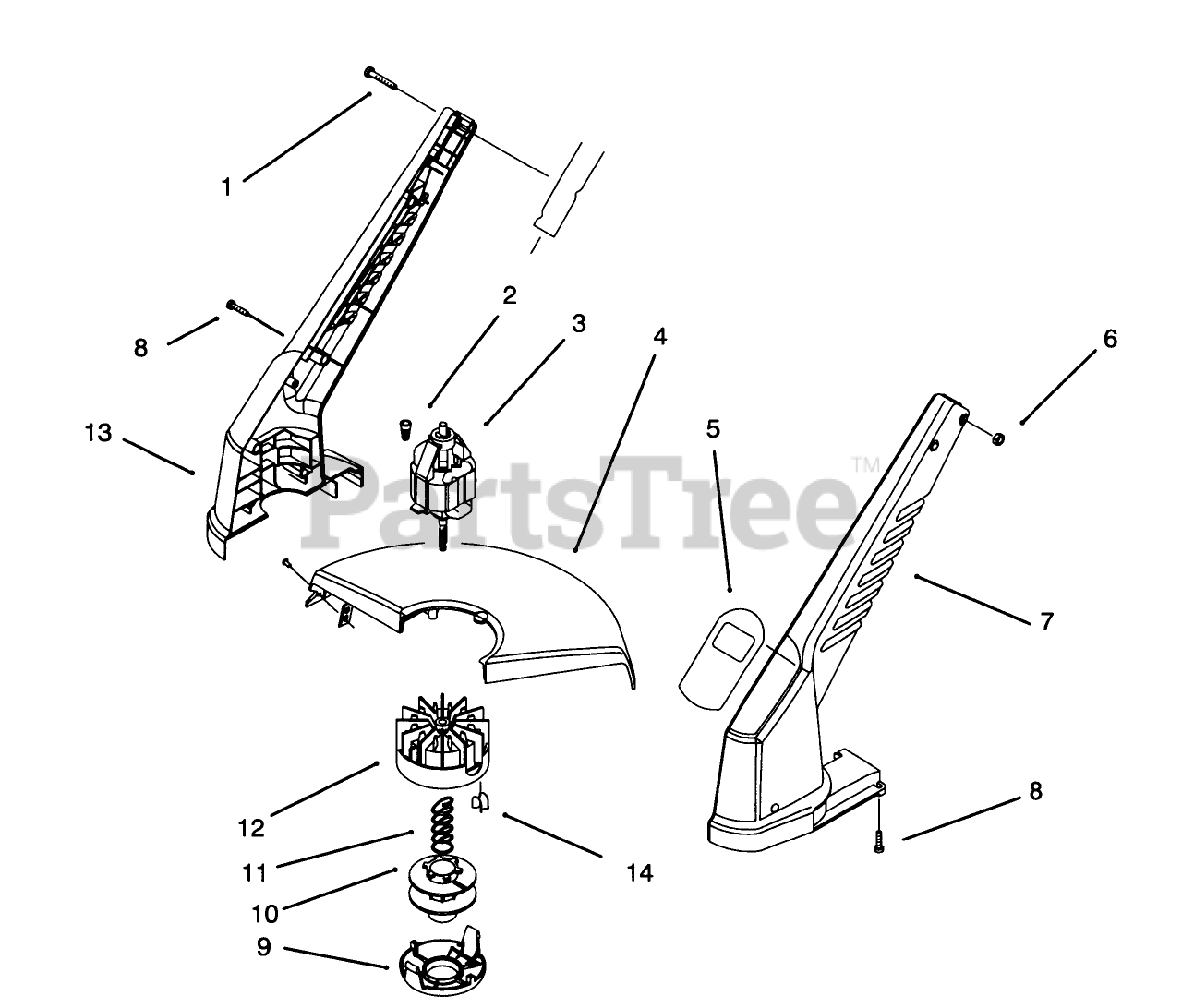

MOTOR & HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 3250-52

SCREW-PPH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 73-6570

CONNECTOR-NUT, WIRE

$1.49

$

In Stock, only 2 left!

0

3

Toro 73-9052

Motor Assembly (Incl. Ref. #12 &-14)

$213.99

$

Usually ships in 3-6 days

0

4

Toro 73-9092

SHIELD ASM - SERVICE

$

$

Not available

5

Toro 73-8472

DECAL - 14" TRIMMER
(Superseded to 73-8473)

$

$

Not available

6

Toro 3217-44

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

7

Toro 73-8140

LH HOUSING

$

$

Not available

8

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

9

Toro 73-8200

CAP

$

$

Not available

10

Toro 73-8190

SPOOL-LARGE

$19.99

$

In Stock, Qty 11

0

11

Toro 73-8220

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 11

0

12

Drum

$

$

Not available

13

Toro 73-8130

RH HOUSING

$

$

Not available

14

Toro 73-8210

EYELET

$5.49

$

In Stock, Qty 8

0

Toro 73-8510

Spool & Line Assembly (Incl. Ref. #10)
(Superseded to 88175)

Note: Not illustrated

$23.99

$

In Stock, only 2 left!

0

Toro 88175

.065 SPOOL ASM

Note: Not illustrated

$23.99

$

In Stock, only 2 left!

0
