51442 - Toro 14" String Trimmer, Electric (SN: 020000001 - 029999999) (1992) MOTOR AND HOUSING ASSEMBLY Parts Diagram

14" String Trimmer, Electric

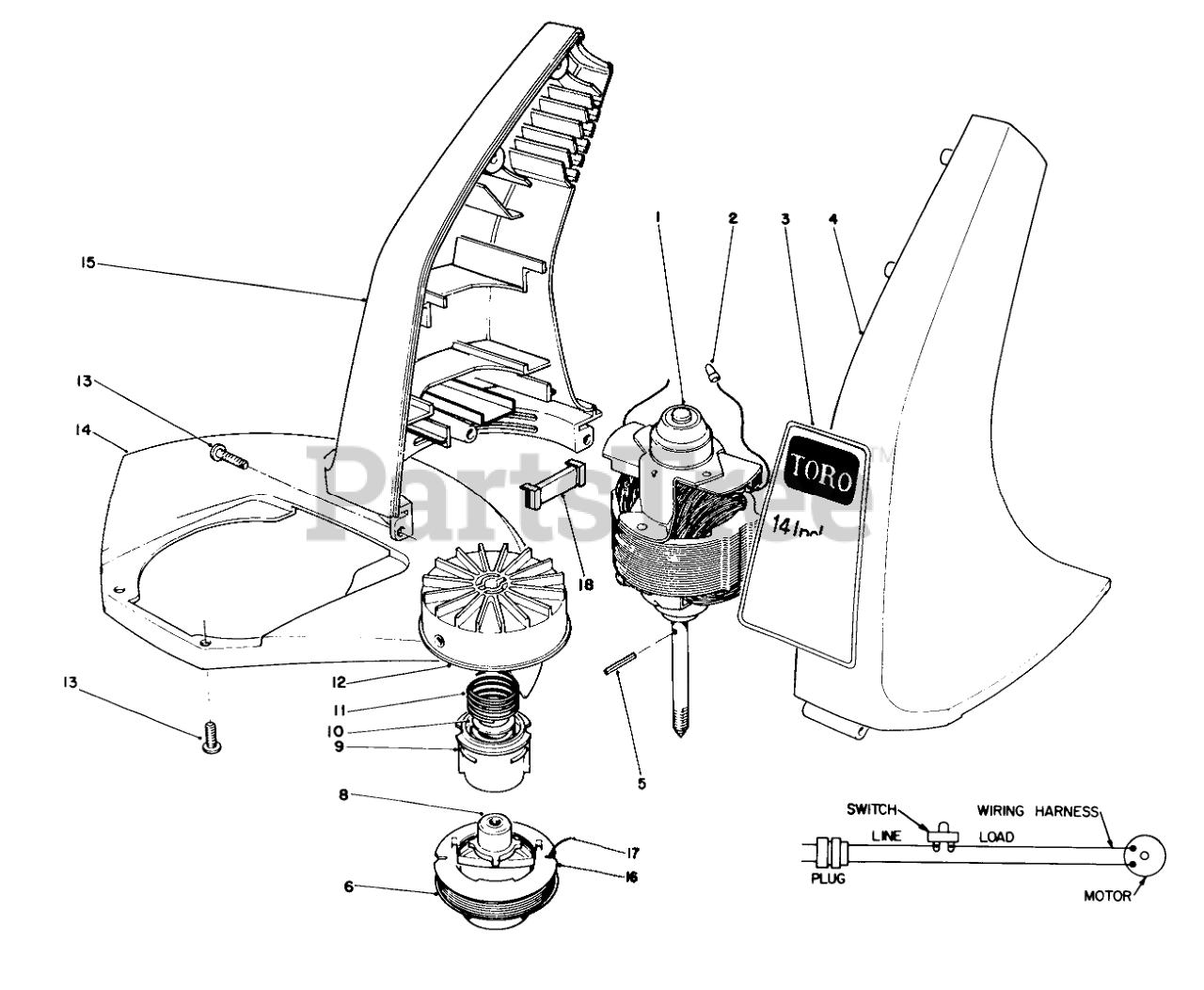

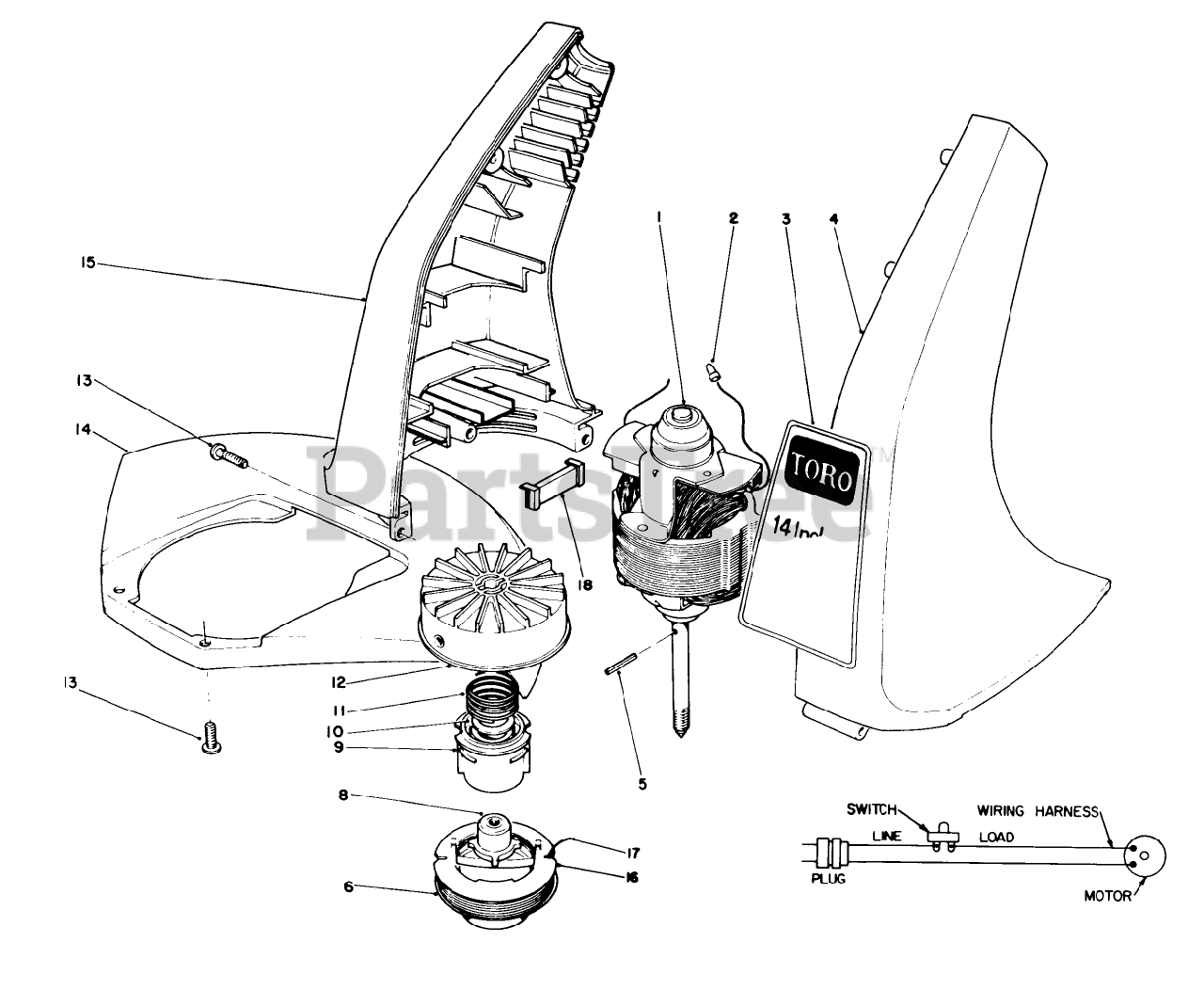

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 34-2790

Motor

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 73-5940

DECAL, 14" TRIMMER

$

$

Not available

4

Toro 73-5220

HOUSING,LH,12"/14"TRIMR

$

$

Not available

5

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

6

Toro 88005

Cutting Line (50 .065" Dia.)

$19.99

$

Usually ships in 3-6 days

0

8

Toro 42-6050

DRIVER

$27.99

$

Usually ships in 3-6 days

0

9

Toro 33-6230

SPOOL CORE

$

$

Not available

10

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

11

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

12

Toro 33-8970

DRUM W/EYELET

$

$

Not available

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 73-5950

SHIELD ASSEMBLY

$

$

Not available

15

Toro 73-5210

HOUSING,RH,12"/14"TRIMR

$

$

Not available

16

Toro 29-7385

SPOOL CAP

$11.99

$

In Stock, only 1 left!

0

17

Toro 88003

LINE-FILIMENT

$

$

Not available

18

Toro 73-5120

INSERT - HOUSING

$

$

Not available
