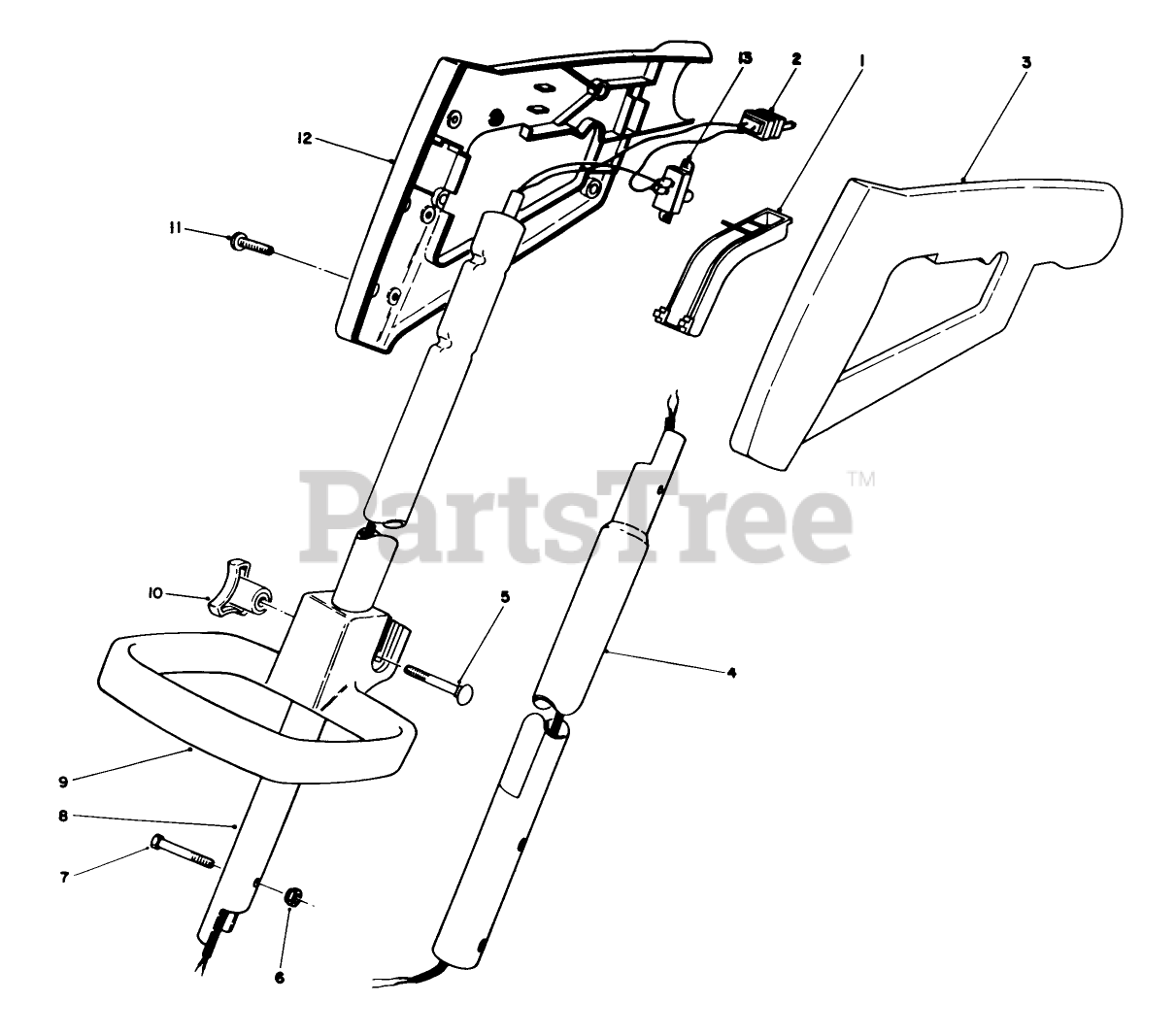

51442 - Toro 14" String Trimmer, Electric (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

14" String Trimmer, Electric

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 73-5580

TRIMMER - SWITCH BAR

$

$

Not available

2

Toro 73-5590

WIRING HARNESS

$

$

Not available

3

Toro 73-5620

HANDLE GRIP, LH

$27.99

$

Usually ships in 3-6 days

0

4

Toro 73-6020

LOWER EXT. TUBE

$43.99

$

Usually ships in 3-6 days

0

5

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

6

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

7

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

8

Toro 73-5630

UPPER TUBE

$

$

Not available

9

Toro 61-8902

Handle-Adjust

$

$

Not available

10

Toro 73-4740

HANDLE KNOB

$9.99

$

Usually ships in 3-6 days

0

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 73-5610

HANDLE GRIP, RH

$27.99

$

Usually ships in 3-6 days

0

13

Toro 73-5600

SWITCH

$

$

Not available
