51440 C (1410) - Toro String Trimmer, Electric (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

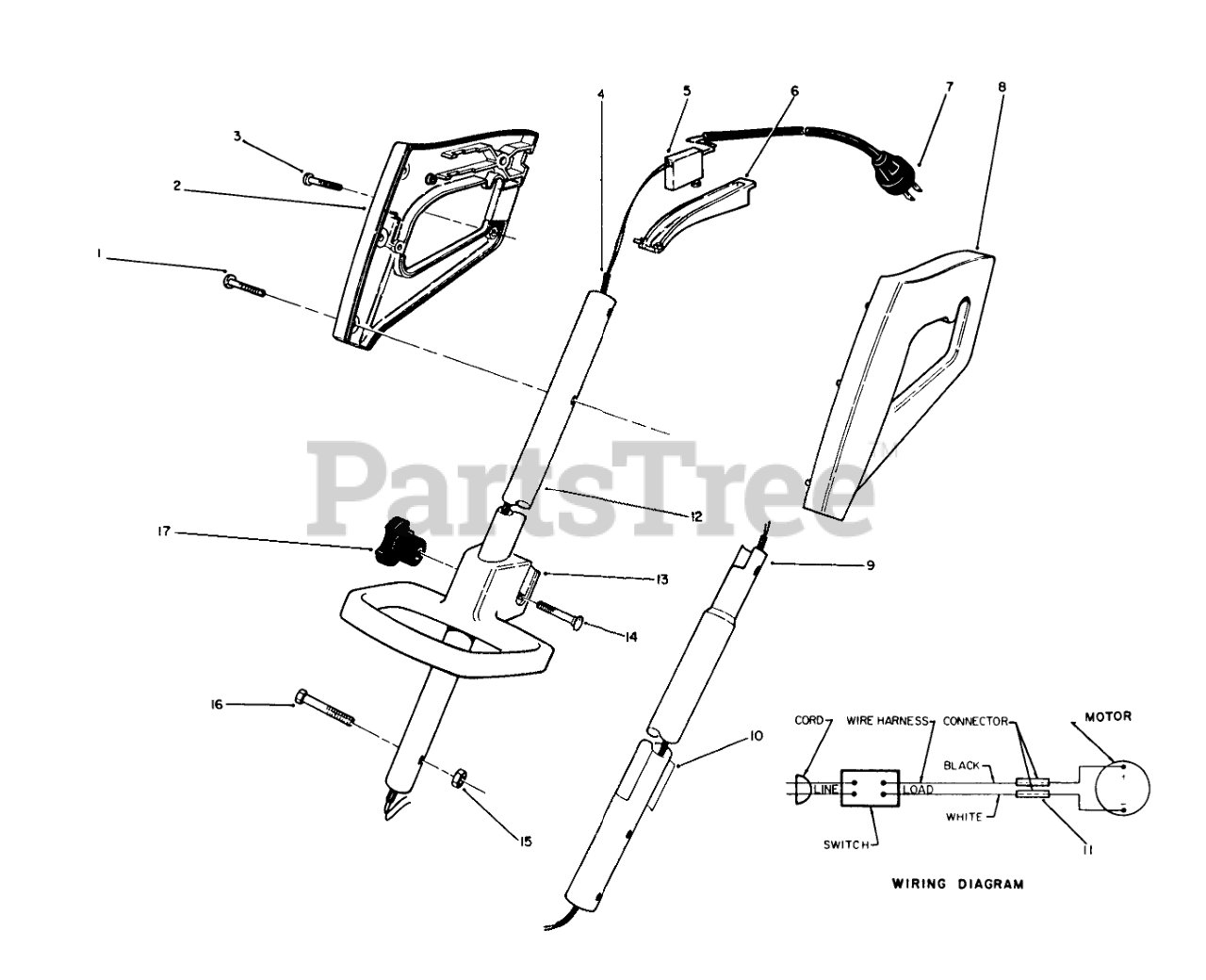

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

2

Toro 73-1110

Grip-Hand R.H.
(Superseded to 73-1111)

$

$

Not available

3

Toro 32104-118

SCREW-PPH

$

$

Not available

4

Toro 62-1810

WIRE HARNESS

$

$

Not available

5

Toro 64-4930

SWITCH
(Superseded to 107-3323)

$19.99

$

In Stock, Qty 8

0

6

Toro 64-4540

Bar Switch
(Superseded to 64-4541)

$

$

Not available

7

Toro 42-0774

Cord-Power
(Superseded to 42-0776)

$

$

Not available

8

Toro 73-1120

Grip-Hand L.H.
(Superseded to 73-1121)

$

$

Not available

9

Toro 64-7100

TUBE-LOWER

$

$

Not available

10

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

11

Toro 64-7110

TUBE-UPPER

$

$

Not available

12

Toro 61-8900

Handle
(Superseded to 61-8902)

$

$

Not available

13

Toro 33-5790

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

14

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

15

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

16

Toro 62-1920

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0

17

Toro 34-3270

REP. SERIAL PLT

$

$

Not available
