51440 C (1410) - Lawn-Boy String Trimmer, Electric (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

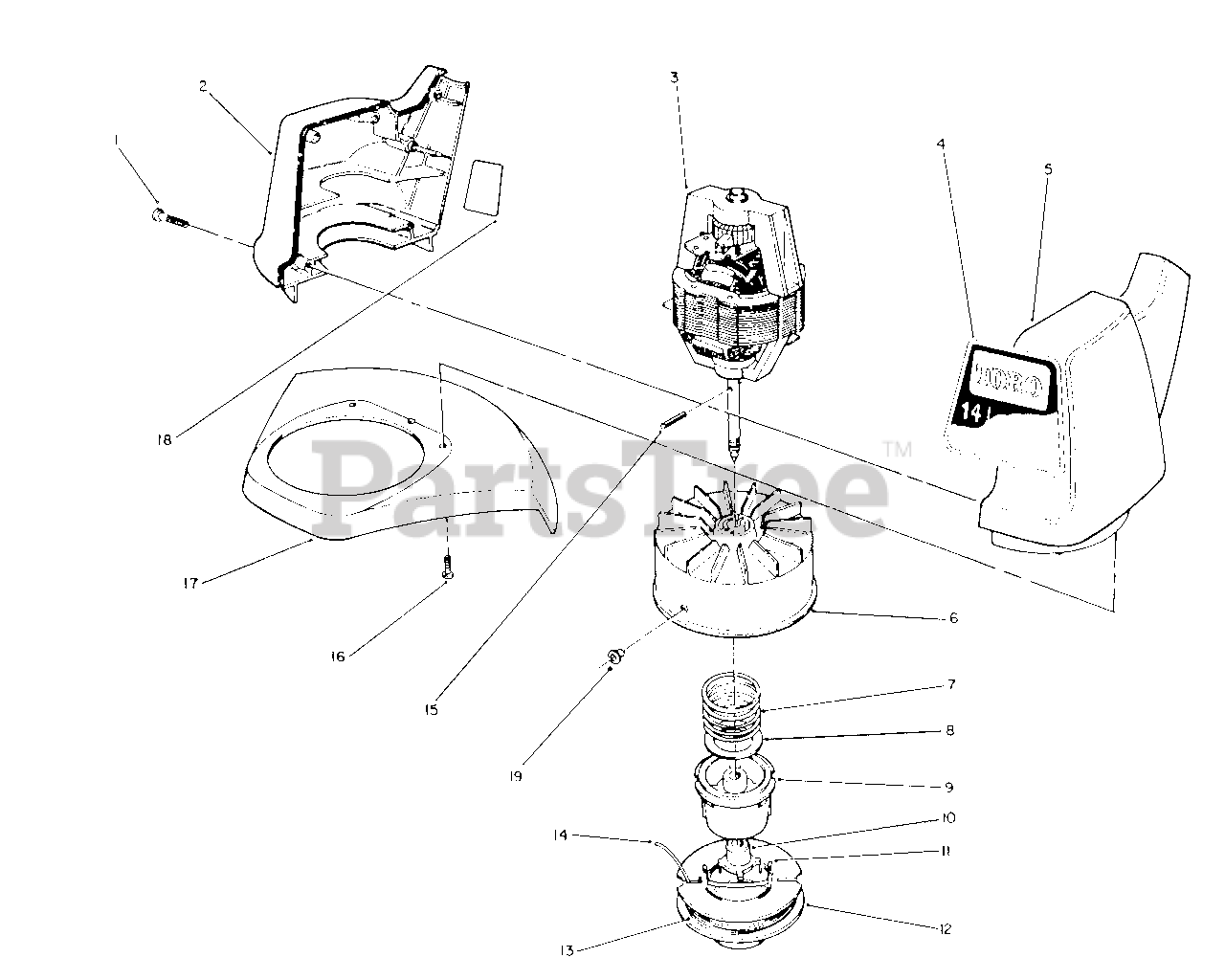

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 32104-120

Screw-Thread Forming

$1.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 61-8930

Housing-Motor R.H.

$

$

Not available

3

Lawn-Boy 61-8950

Motor-Electric

$

$

Not available

4

Lawn-Boy 73-1160

Decal-14"

$

$

Not available

5

Lawn-Boy 61-8910

Housing-Motor L.H.

$

$

Not available

6

Lawn-Boy 62-1770

Drum & Eyelet Assembly
(Superseded to 33-8970)

$

$

Not available

7

Lawn-Boy 29-7130

Spring-Compression

$9.99

$

In Stock, only 1 left!

0

8

$1.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 33-6230

Spool-Core

$

$

Not available

10

$27.99

$

Usually ships in 3-6 days

0

11

$

$

Not available

12

Lawn-Boy 29-7383

Empty Spool
(Superseded to 29-7385)

$11.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 88305

50 Ft. Coil-.065 Dia. Cutting Line Prewound on Spool

$

$

Currently unavailable

14

Lawn-Boy 88303

50 Ft. Coil-.065 Dia. Cutting Line in Coil

$

$

Currently unavailable

15

Lawn-Boy 32121-88

Pin-Spiral

$8.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 32104-118

Screw-Thread Forming

$

$

Not available

17

Lawn-Boy 62-1780

Shield Assembly
(Superseded to 62-1781)

$

$

Not available

18

Lawn-Boy 40-2850

Decal-Made In Canada

$

$

Not available

19

$

$

Not available

Lawn-Boy 62-1820

Loose Parts

Note: Not Illustrated

$

$

Not available
