51440 (1410) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

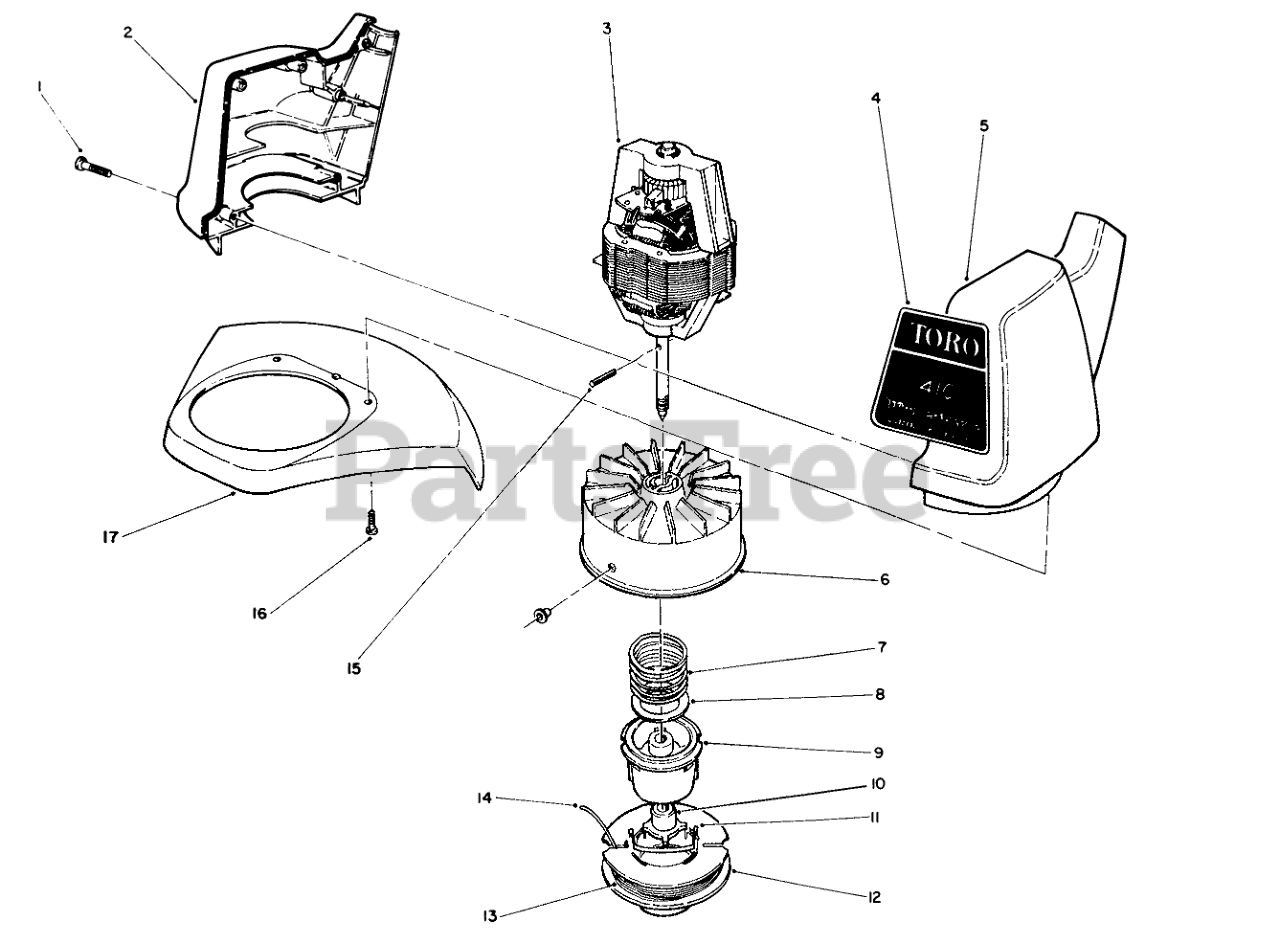

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

2

Toro 61-8930

RH HOUSING, 1410

$

$

Not available

3

Toro 61-8950

MOTOR, 1410 TRIMMER

$

$

Not available

4

Toro 62-1830

DECAL, 1410
(Superseded to 73-1160)

$

$

Not available

5

Toro 61-8910

LH HOUSING, 1410

$

$

Not available

6

Toro 62-1770

Drum & Eyelet Assembly
(Superseded to 33-8970)

$

$

Not available

7

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

8

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

9

Toro 33-6230

SPOOL CORE

$

$

Not available

10

Toro 42-6050

DRIVER

$27.99

$

Usually ships in 3-6 days

0

11

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

12

Toro 29-7383

Empty Spool
(Superseded to 29-7385)

$11.99

$

In Stock, only 2 left!

0

13

Toro 88005

Cutting Line (50 .065" Dia.)

$19.99

$

Usually ships in 3-6 days

0

14

Toro 88003

LINE-FILIMENT

$

$

Not available

15

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

16

Toro 32104-118

SCREW-PPH

$

$

Not available

17

Toro 62-1780

Shield Assembly
(Superseded to 62-1781)

$

$

Not available

Toro 62-1820

Loose Parts

$

$

Not available
