51440 (1410) - Toro String Trimmer, Electric (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

String Trimmer, Electric

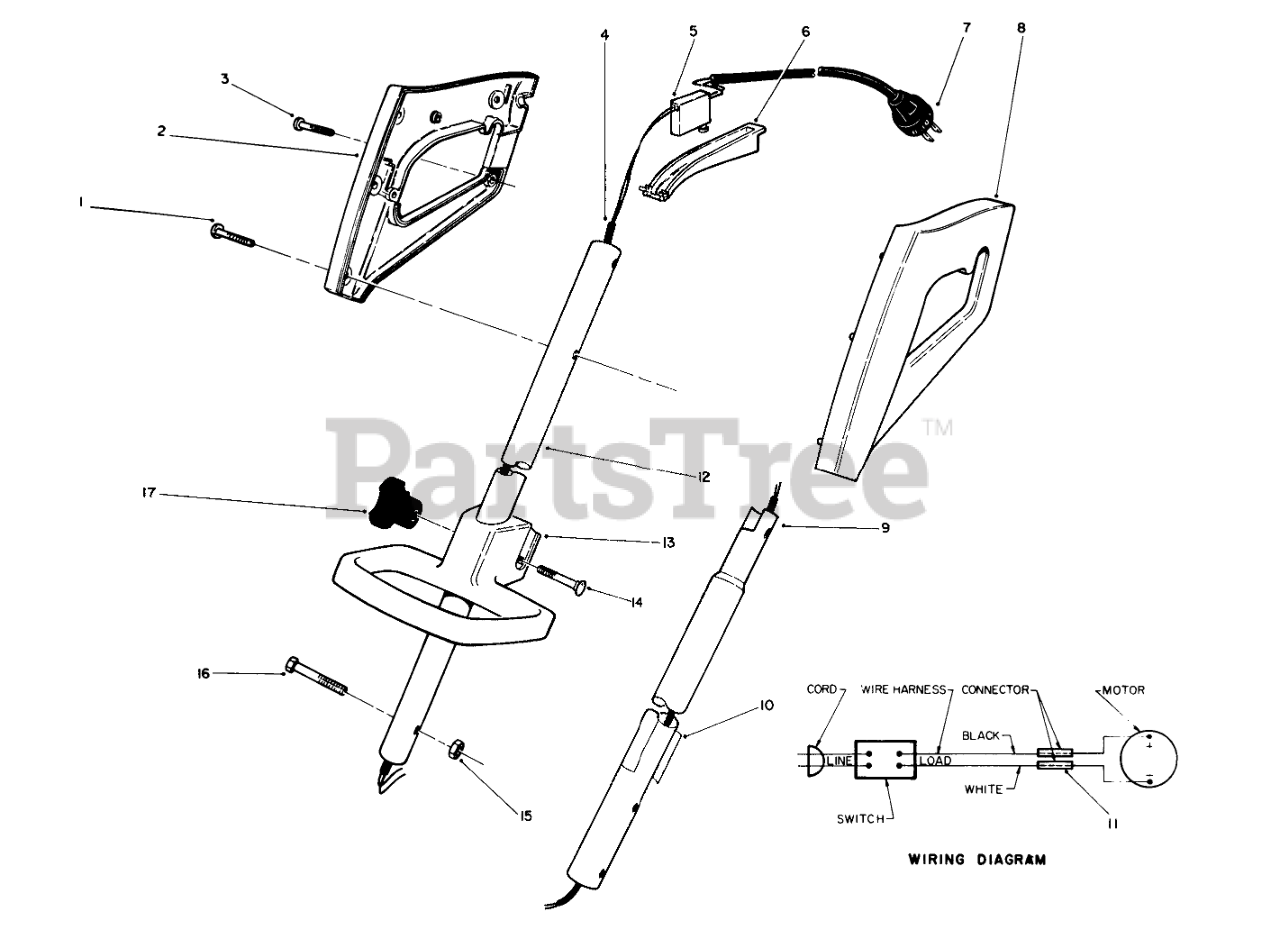

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

2

Toro 64-4520

Grip R.H.

$

$

Not available

3

Toro 32104-118

SCREW-PPH

$

$

Not available

4

Toro 62-1810

WIRE HARNESS

$

$

Not available

5

Toro 64-4930

SWITCH
(Superseded to 107-3323)

$19.99

$

In Stock, Qty 8

0

6

Toro 64-4540

Bar Switch
(Superseded to 64-4541)

$

$

Not available

7

Toro 46-8850

Cord-Power
(Superseded to 46-8851)

$

$

Not available

8

Toro 64-4530

Grip-L.H.

$

$

Not available

9

Toro 64-7100

TUBE-LOWER

$

$

Not available

10

Toro 62-1840

Decal-UL

$

$

Currently unavailable

11

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

12

Toro 64-7110

TUBE-UPPER

$

$

Not available

13

Toro 61-8900

Handle
(Superseded to 61-8902)

$

$

Not available

14

Toro 33-5790

BOLT-CARR

$5.49

$

In Stock, only 1 left!

0

15

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

16

Toro 33-8950

HEX HD MACHINE SCREW

$

$

Not available

17

Toro 62-1920

Knob
(Superseded to 73-4740)

$9.99

$

Usually ships in 3-6 days

0
