51435 - Toro 24V String Trimmer and Sweeper Combo 12IN CORDLESS SINGLE-LINE TRIMMER ASSEMBLY Parts Diagram

24V String Trimmer and Sweeper Combo

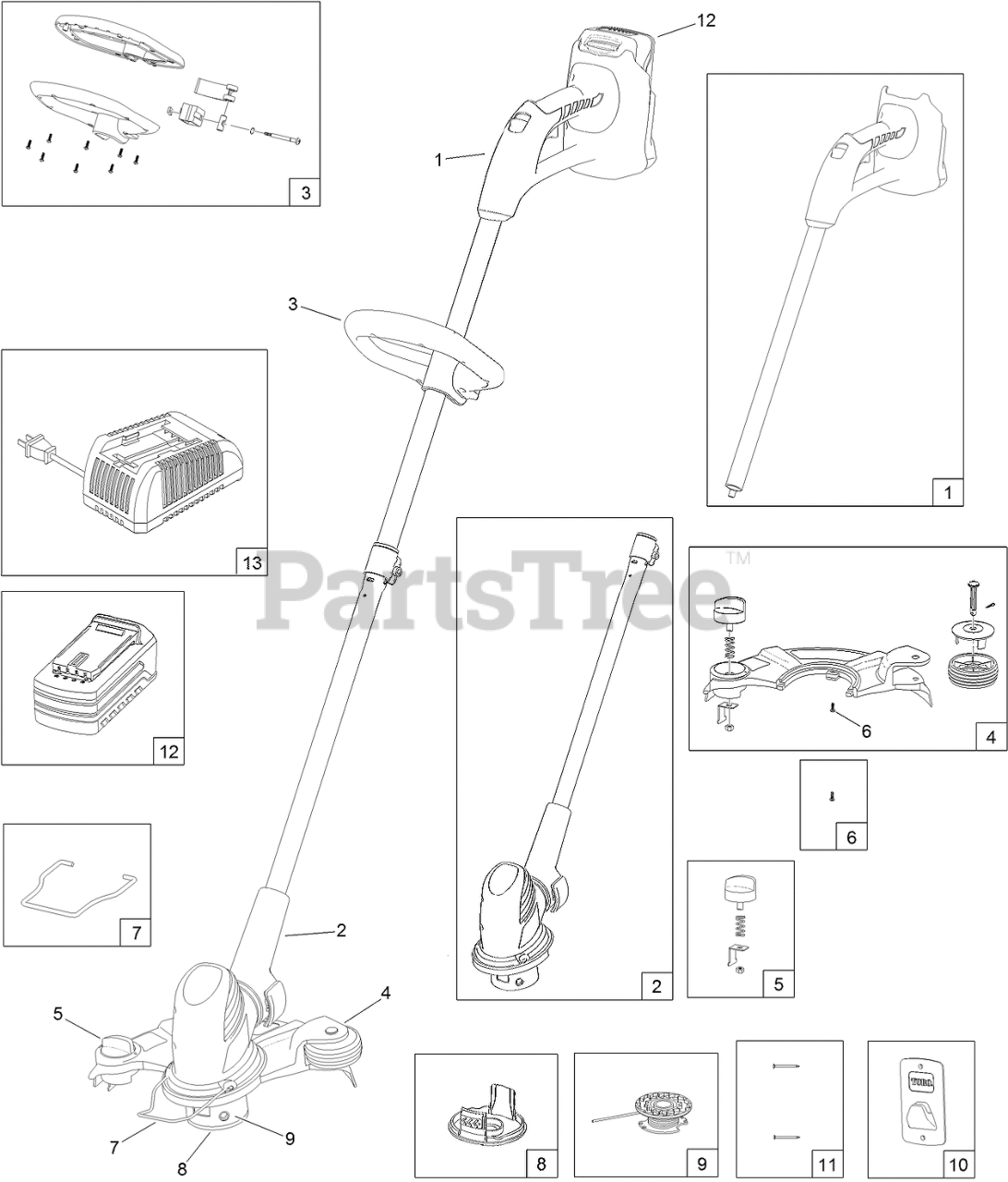

12IN CORDLESS SINGLE-LINE TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Toro 125-8290

HANDLE-UPPER

$

$

Not available

2

Toro 125-8291

HOUSING-MOTOR, LOWER

$

$

Not available

3

Toro 125-8261

ASSIST HANDLE ASM

$42.99

$

In Stock, only 2 left!

0

4

Toro 121-7624

SHIELD ASM

$29.99

$

Usually ships in 3-6 days

0

5

Toro 125-8292

KNOB-SAVER, POWER

$

$

Not available

6

Toro 125-8293

SCREW

$0.99

$

In Stock, Qty 7

0

7

Toro 125-8251

CLIP-GUIDE, EDGER

$1.99

$

In Stock, only 1 left!

0

8

Toro 125-8252

CAP-RETAINER, SPOOL

$3.49

$

In Stock, Qty 20+

0

9

Toro 88532

SPOOL-REPLACEMENT

$17.99

$

In Stock, Qty 5

0

10

Toro 125-8260

BRACKET-MOUNT, WALL

$4.49

$

Usually ships in 3-6 days

0

11

Toro 125-8259

Screw (Wall Mount Bracket)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 88506

BATTERY-LI-ION, 24V MAX

$

$

Not available

13

Toro 88503

CHARGER-24V, LI-ION

$

$

Not available
