51430 (1210) - Toro String Trimmer, Electric (SN: 007000001 - 007999999) (1987) MOTOR AND HOUSING ASSEMBLY Parts Diagram

String Trimmer, Electric

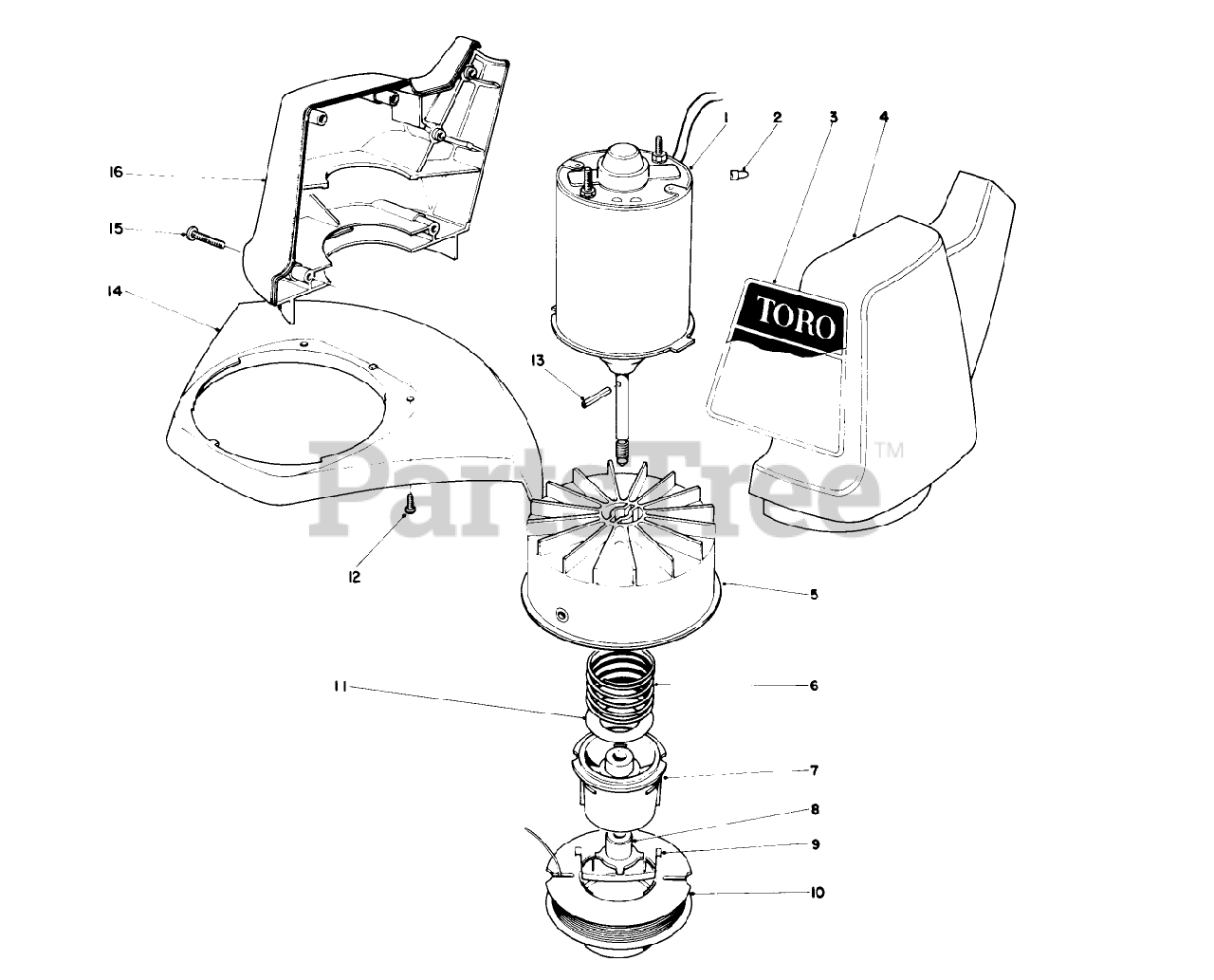

MOTOR AND HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 29-7081

MOTOR

$

$

Not available

2

Toro 218-496

CONNECTOR WIRE JOINT

$

$

Not available

3

Toro 54-7900

DECAL

$

$

Not available

4

Toro 29-7052

Housing-L.H.

$

$

Not available

5

Toro 33-8970

DRUM W/EYELET

$

$

Not available

6

Toro 29-7130

SPRING COMPRESSION

$9.99

$

In Stock, only 1 left!

0

7

Toro 33-6230

SPOOL CORE

$

$

Not available

8

Toro 42-6050

DRIVER

$23.99

$

Usually ships in 3-6 days

0

9

Toro 33-8940

SADDLE-SPOOL CAP

$

$

Not available

10

Toro 88025

38 ft. .080 dia. Cutting Line Prewound on Spool

$

$

Not available

Toro 43-4990

Empty Spool

Note: Not illustrated

$

$

Not available

Toro 88041

38 ft. .080 dia. Cutting Line in Coil

Note: Not illustrated

$

$

Currently unavailable

11

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

12

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

13

Toro 32121-88

COIL PIN

$8.49

$

In Stock, only 2 left!

0

14

Toro 34-8881

SHIELD ASM

$

$

Not available

15

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

16

Toro 29-7062

Housing-R.H.

$

$

Not available

Toro 34-9120

ALIGNMENT PIN

Note: Not illustrated

$

$

Not available

Toro 33-8751

Loose Parts Kit

Note: Not illustrated

$

$

Not available
